PDF Studio

The PDF Studio extension brings code-first document design to llms.py. Design PDFs the way you write code: a plain-text Typst template on the left, the rendered page on the right, updating in real-time as you type or edit data.

Documents like invoices, certificates, reports, and statements are often trapped in binary Word or desktop publishing files that require manual edits. With the PDF Studio, the layout is a Typst template and the content is a JSON file—allowing the same design to be populated with different data (one customer or ten thousand) and rendered to a pixel-identical PDF every time.

Key Features

• Documents as Source Code: Templates are stored as plain text—diff them, review them in PRs, and track them in git.
• Separation of Content and Design: Update document wording without touching layout code, or restyle all documents at once by modifying a shared library file (lib.typ).
• Real-Time Live Preview: Every keystroke or form edit instantly re-renders the true compiled PDF without approximations.
• Natural Language AI Editing: Describe layout and styling changes in plain English, or attach a screenshot / PDF to generate a complete reusable template and data model automatically.
• Typed Application Code Generation: Instantly generate matching C#, Python, TypeScript, or JavaScript classes from your template's data schema to produce expected JSON from application code.

Prerequisites

The PDF Studio requires the Typst CLI compiler on your system PATH.

Install it using your package manager of choice:

# Cargo (Rust)
cargo install --locked typst-cli

# macOS (Homebrew)
brew install typst

# Windows (WinGet)
winget install --id Typst.Typst

Getting Started

Click the PDF Studio icon in the left toolbar or navigate to /pdf. The first time you launch the PDF Studio, a starter template set is initialized in ~/.llms/user/<user>/pdf:

These files are your local copies—edit them freely. Upgrading llms.py will never overwrite your modified templates.

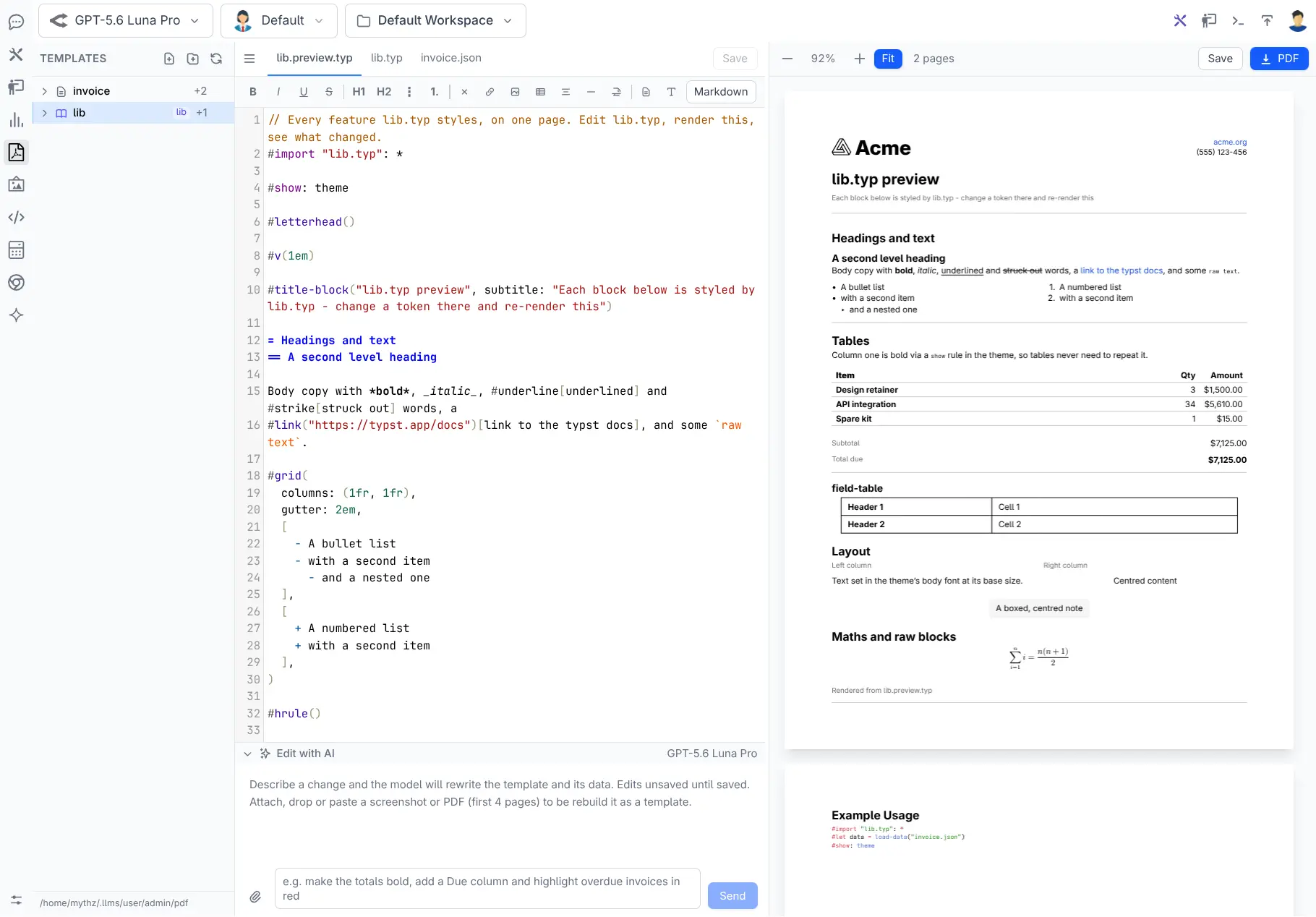

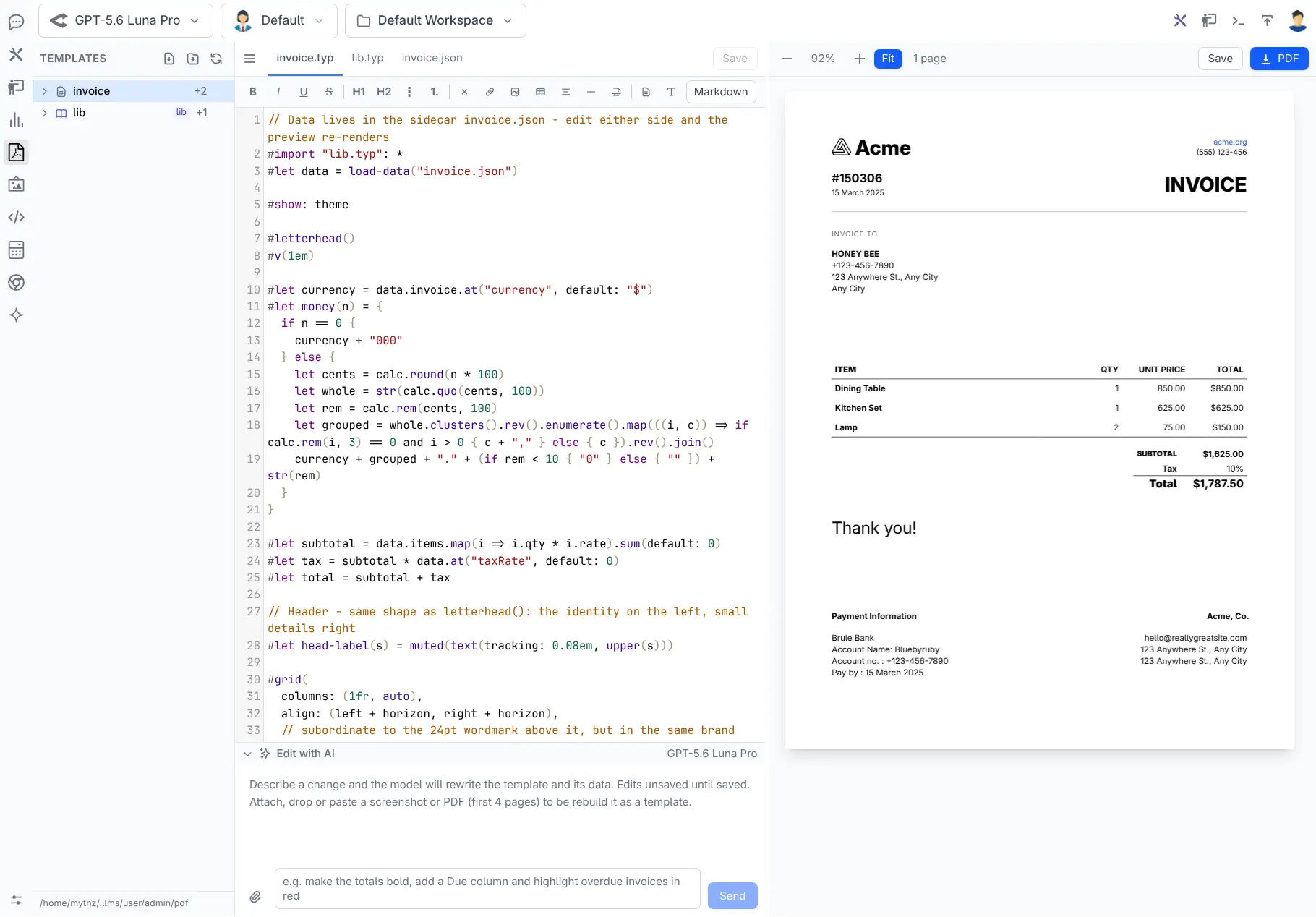

Workspace Layout

The workspace is divided into three flexible columns:

1. Explorer (Left Column)

Lists all document templates and assets. Related files are automatically grouped together:

• Clicking a document group (e.g., invoice) opens the document and its associated sidecars (invoice.typ, invoice.json, invoice.ui.json, generated code). A badge (e.g., +2) indicates hidden nested files.
• Click the chevron to expand and inspect individual files within a group.
• Right-click anywhere in the explorer (or click the context menu) to create a New Template, New File, New Folder, Rename, or Delete.

2. Editor (Middle Column)

Multi-tab editor showing open template markup, JSON data, form views, or generated source code.

• Unsaved changes are held safely in memory and indicated by a dot indicator on the active file tab.
• Press Ctrl+S (or Cmd+S) to save all unsaved buffers to disk.

3. Preview (Right Column)

Live compiled PDF canvas rendered via PDF.js.

• Re-renders instantly on every edit.
• Includes controls to zoom (− / +) or Fit the page width to the preview container (automatically re-fits when dragging the column splitter).
• If a compilation error occurs, diagnostic line numbers appear above the preview—click a error line to jump directly to the offending line in the editor.

Editing Document Data

A template's data lives in the .json file beside it (e.g., invoice.json). Opening a .json tab provides two editing modes:

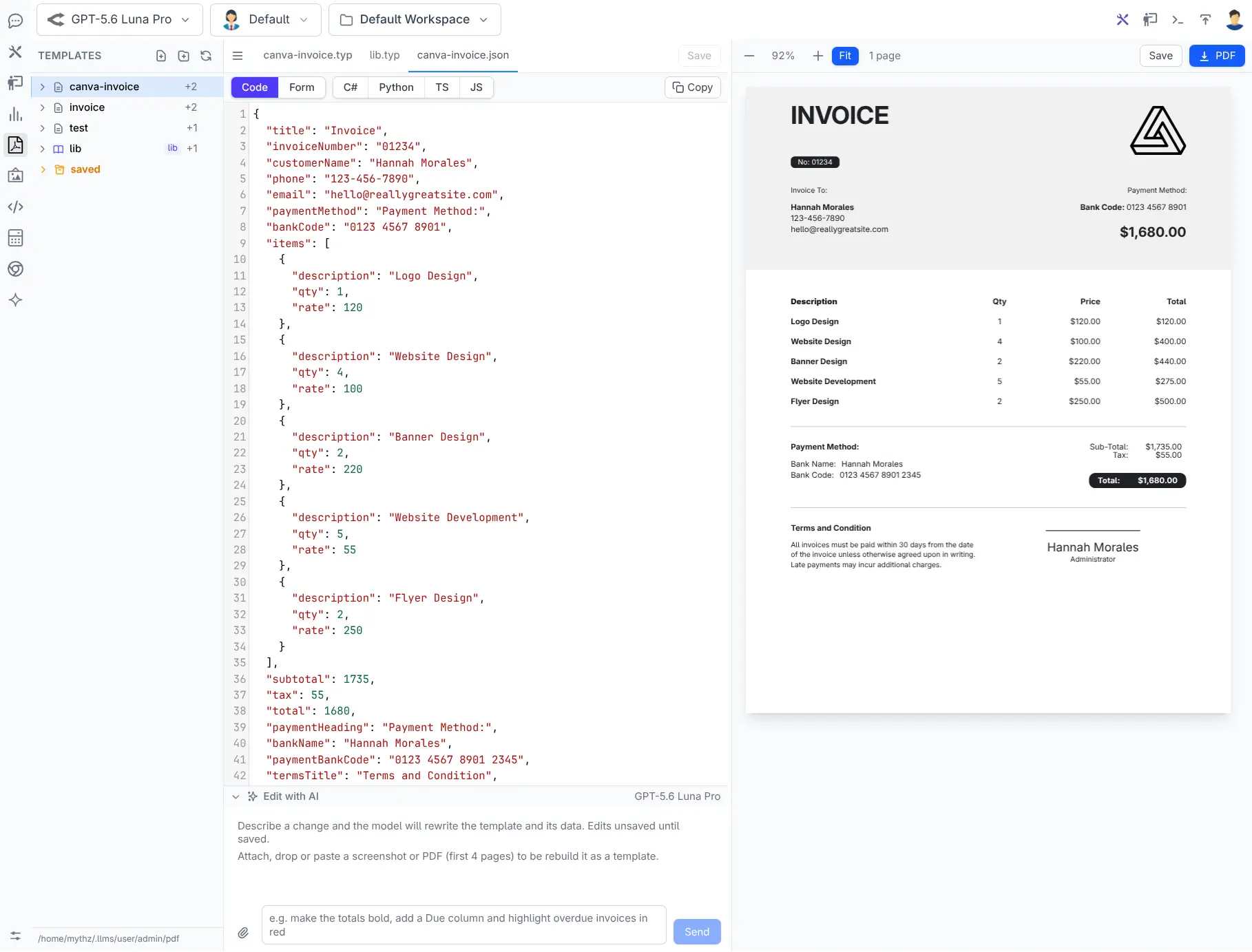

Code View

Edit raw JSON directly with full syntax highlighting.

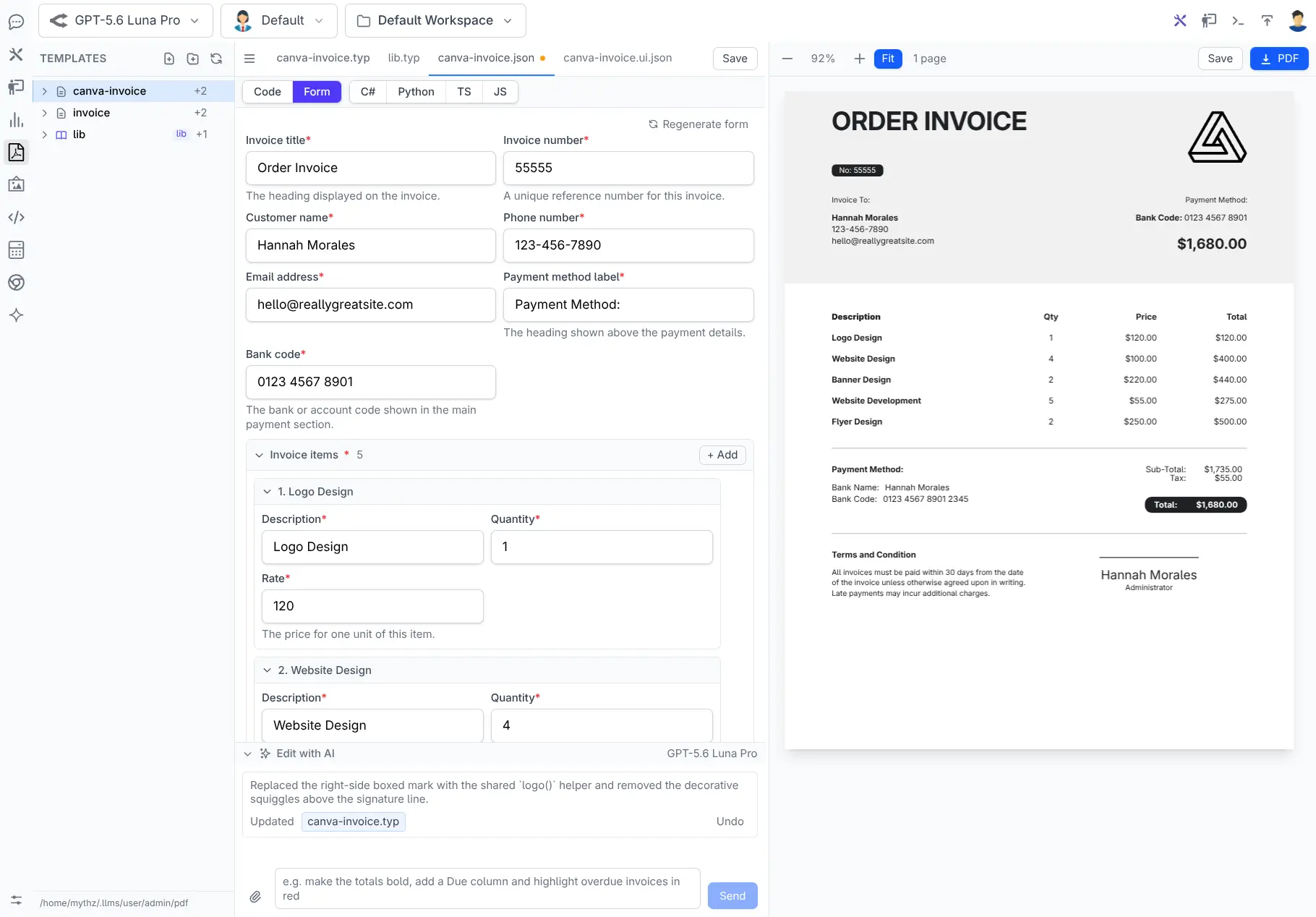

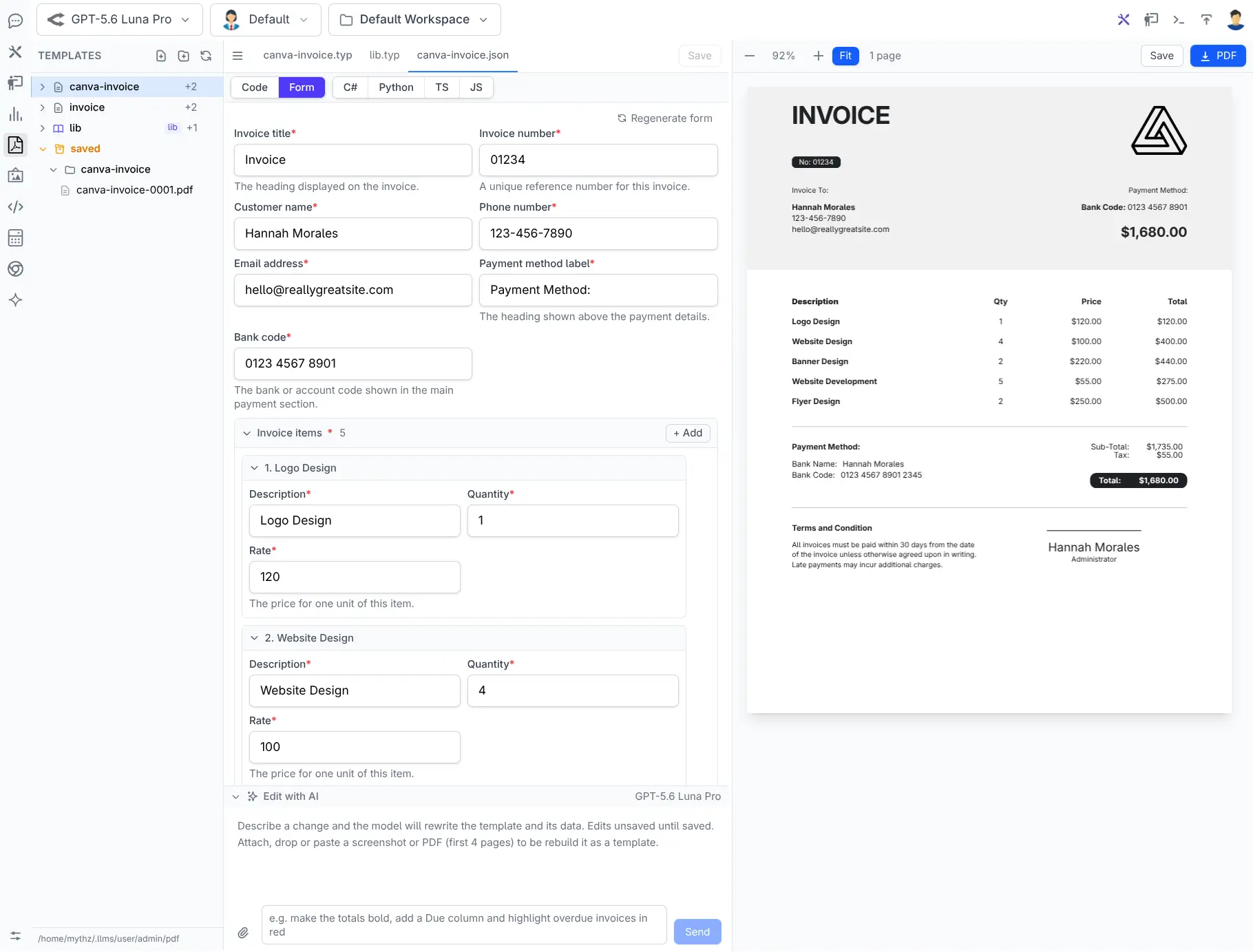

Form View

Edit data using a structured UI form with labeled inputs, field descriptions, collapsible sections, and dynamic row addition/removal for lists and arrays.

The Form UI is automatically driven by the template's .ui.json JSON Schema. If a template doesn't have a schema yet, click Schema in the toolbar to have an AI model automatically generate one from your sample data.

You can use either the code or Form UI to edit PDFs and the previewer will auto sync in real-time.

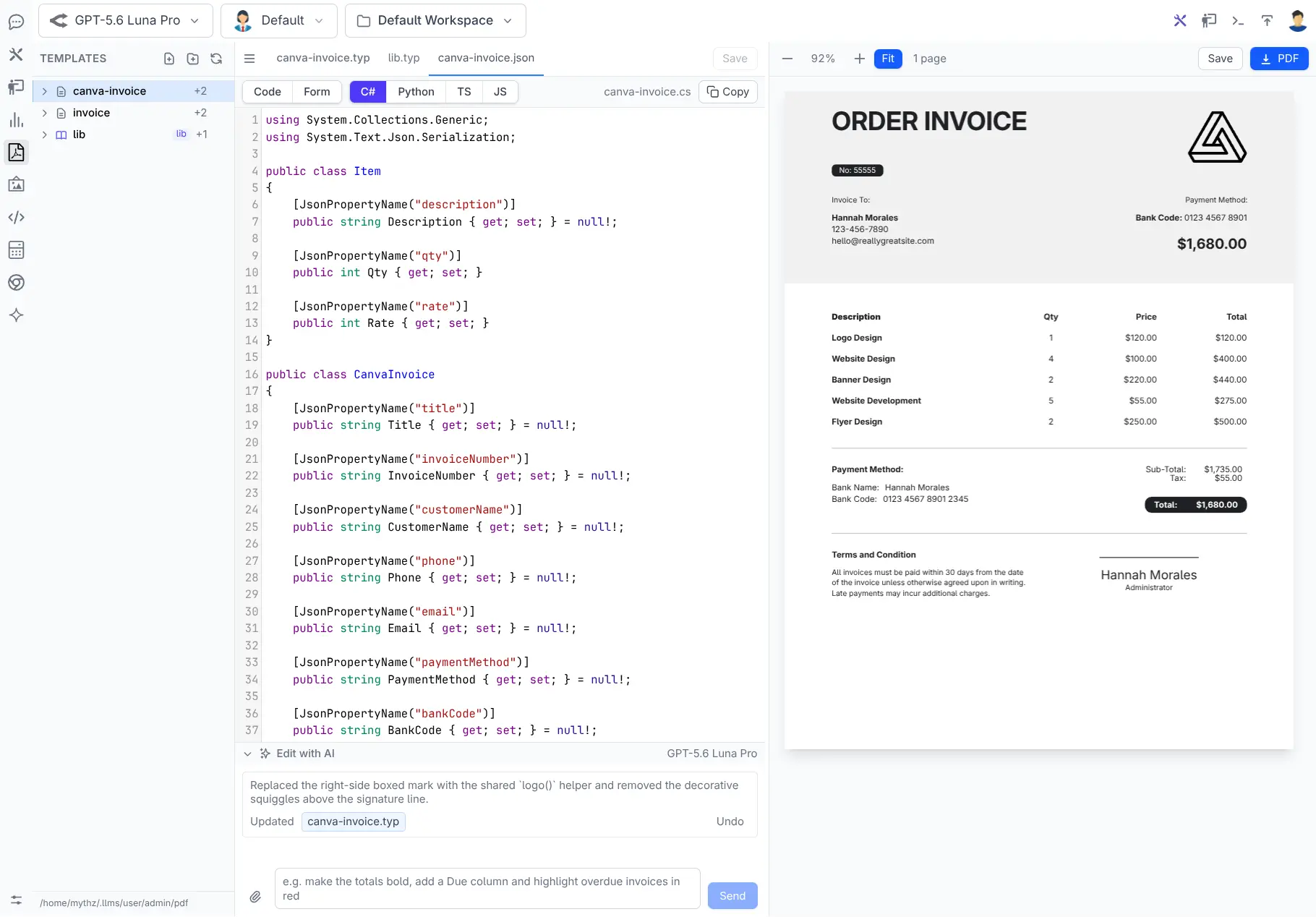

Code Generation for Applications

To seamlessly integrate PDF generation into your backend or frontend applications, the PDF Studio generates strongly typed classes directly from your document's JSON data and schema.

Click any of the language buttons on a .json tab:

Code generation is instantaneous and executed locally without needing an LLM model call. Use the Copy button to copy generated code directly into your application codebase.

Formatting Toolbar

Editing a .typ file displays a rich formatting toolbar above the editor:

• Text Formatting: B (Bold), I (Italic), U (Underline), S (Strikethrough), and ` (Inline Code).
• Block Prefixes: H1, H2 (Headings), • (Bullet List), 1. (Numbered List). Click again to toggle line prefixes on or off.
• Snippets: Quick drop-in blocks for Hyperlinks, Tables (with header row configuration), Centered Alignment, Horizontal Rules, and Page Breaks.
• Images: Upload or select images to insert #image(...) tags.
• Typography (T): Open font and text styling controls.
• Page Setup: Configure paper dimensions, margins, and orientation.
• Markdown: Insert or wrap content in embedded Markdown blocks.

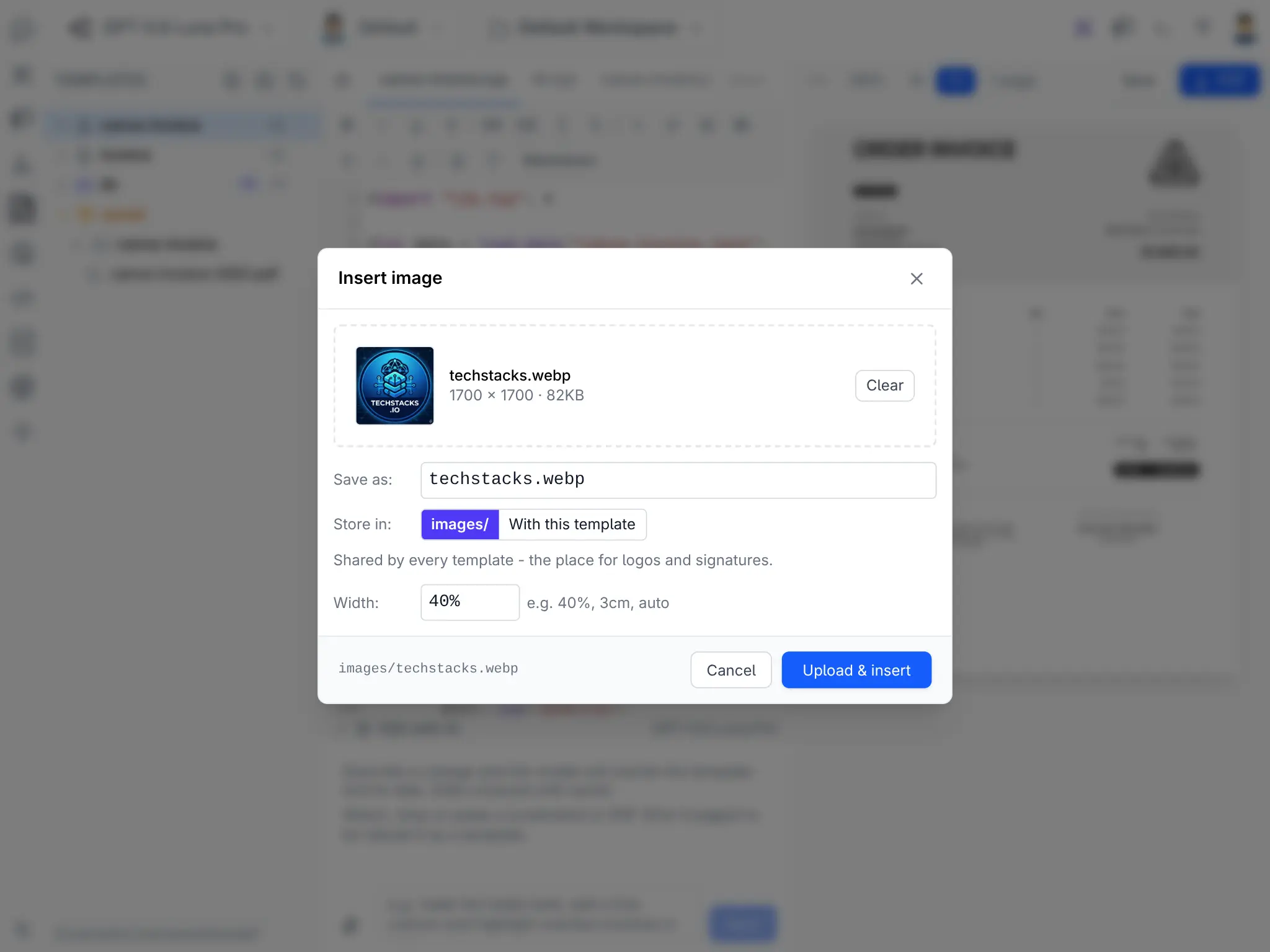

Images & Assets

Click the Image button to upload a picture or select an existing image:

• Shared Images (images/): Uploads to a shared folder suitable for logos or signatures used across multiple templates.
• Template Images (With this template): Saves as <template>.<name>.png, keeping the asset grouped under the template in the explorer so it is renamed or deleted alongside the document.

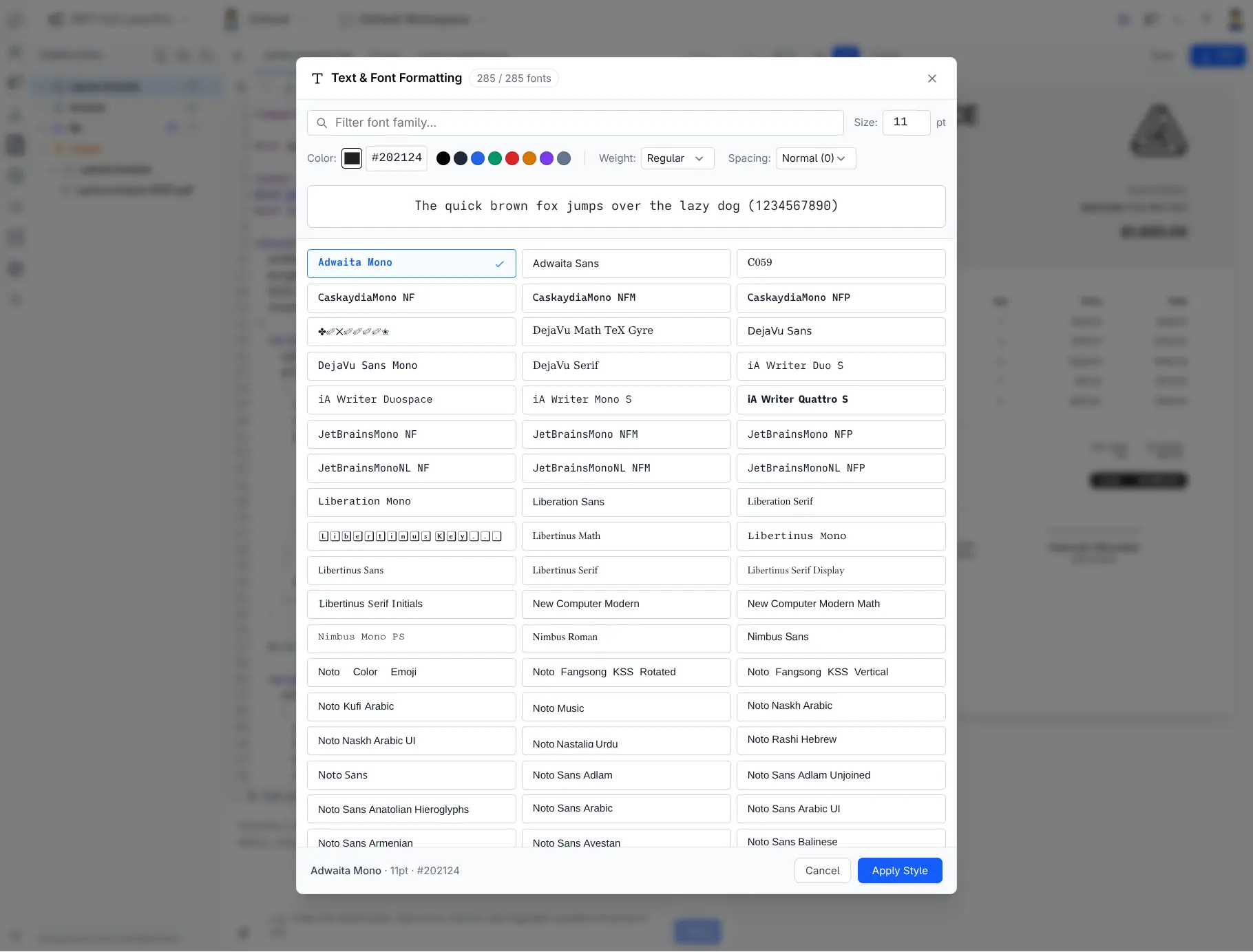

Fonts & Typography (T)

The Typography panel lists system fonts as well as custom fonts dropped into a fonts/ directory alongside your templates.

• Filter by font family name and set font size, text color, font weight, and letter spacing with live font rendering.
• Click Apply Style to wrap selected text in #text(...), or apply a document-level #set text(...) rule when nothing is selected.

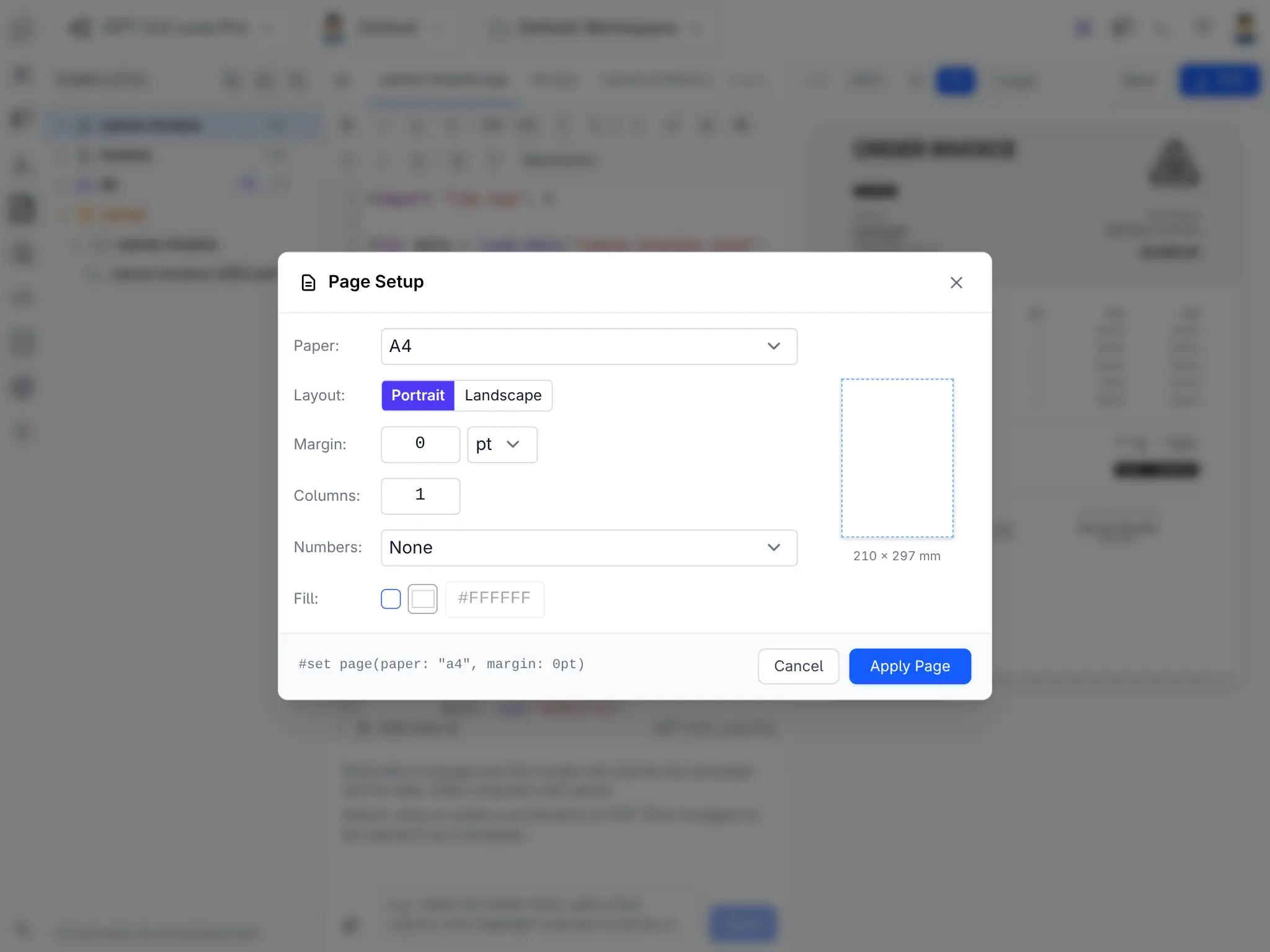

Page Setup

The Page Setup dialog provides interactive controls for:

• Paper dimensions (A3–A6, US Letter, Legal, Tabloid, 16:9 / 4:3 slides, or custom mm dimensions)
• Orientation (Portrait / Landscape)
• Margins, multi-column layouts, page numbering formats, and background fill colors.

Markdown Integration

If your content is written in Markdown (e.g., model responses, articles, notes), the Markdown toolbar button uses the cmarker package to render Markdown within the Typst layout:

#import "@preview/cmarker:0.1.10"

#cmarker.render(data.body)

Keeping prose in your JSON data as Markdown allows non-technical authors to edit content while Typst handles page furniture and styling.

Editing & Creating Templates with AI

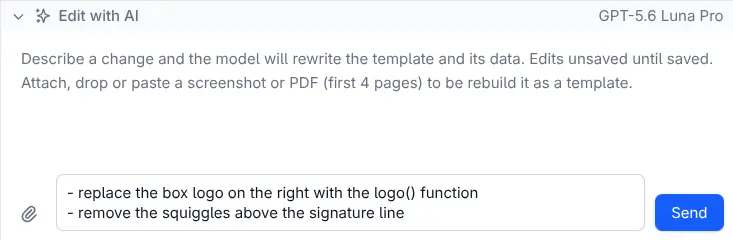

The expandable Edit with AI panel at the bottom of the editor allows you to modify templates or generate new ones using natural language prompts.

You can choose any preferred model (that supports image inputs) to make the changes, with the better the model, the more likely you are to get a working template without additional prompting. In most cases it should only take a few natural language prompts to get it looking the way you want.

Prompting Changes

Type your request (e.g., "Add a payment status badge and highlight overdue line items in red") and select your preferred LLM. The AI rewrites the template and sidecar data simultaneously.

Auto-Healing Compiler Errors

If an AI model generates Typst code with compilation errors, the PDF Studio catches the error diagnostics (file:line:col) and automatically runs up to 3 repair passes in the background. If errors persist, you can inspect the diagnostic details and click Undo to revert to the pre-prompt state cleanly.

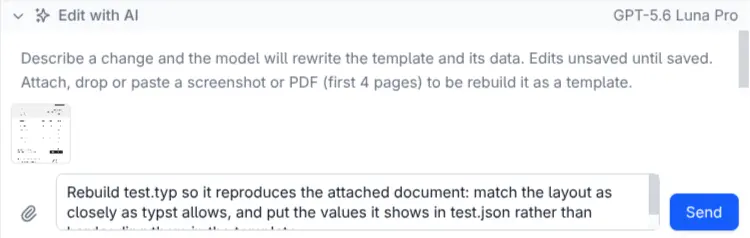

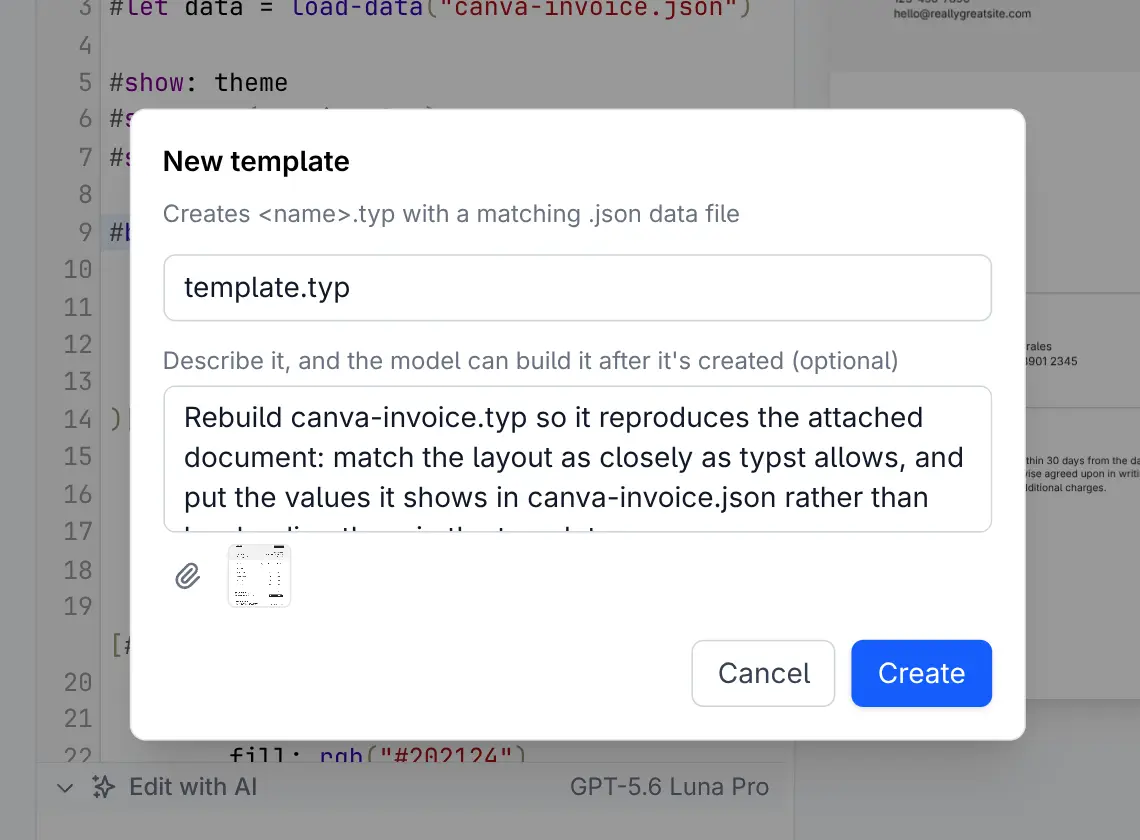

Generating Templates from Screenshots or PDFs

To assist with converting existing designs into editable templates, the PDF Studio supports visual input. You can upload screenshots of PDFs or design mockups to use as visual references for the AI code generation process.

This can be done either before creating a new template or when editing an existing one. Click the Attach button (paperclip icon) in the AI panel to open the file picker.

Attach an existing document design, screenshot, or sample PDF by dragging files onto the AI panel, clicking the paperclip icon, or pasting a screenshot directly from your clipboard:

• PDF files are automatically converted into page images (first 4 pages).
• The AI prompt instructs the vision model to decouple design from data: visual layout, header styling, and typography become the Typst template (.typ), while invoice numbers, line items, customer details, and totals are extracted into the JSON sidecar (.json).

The Shared Library (lib.typ)

Every new template starts with standard library import statements:

#import "lib.typ": *

#let data = load-data("invoice.json")
#show: theme

lib.typ serves as your central design system:

• Design Tokens: Define primary brand colors, typography stacks, and rule line styles.
• Component Helpers: Custom Typst functions for #money(), #title-block(), #data-table(), and branded headers/footers.
• Data Loader (load-data): Seamlessly reads local sidecar JSON during interactive design sessions, while accepting external CLI JSON input (typst compile --input data='{...}') in production automated pipelines.

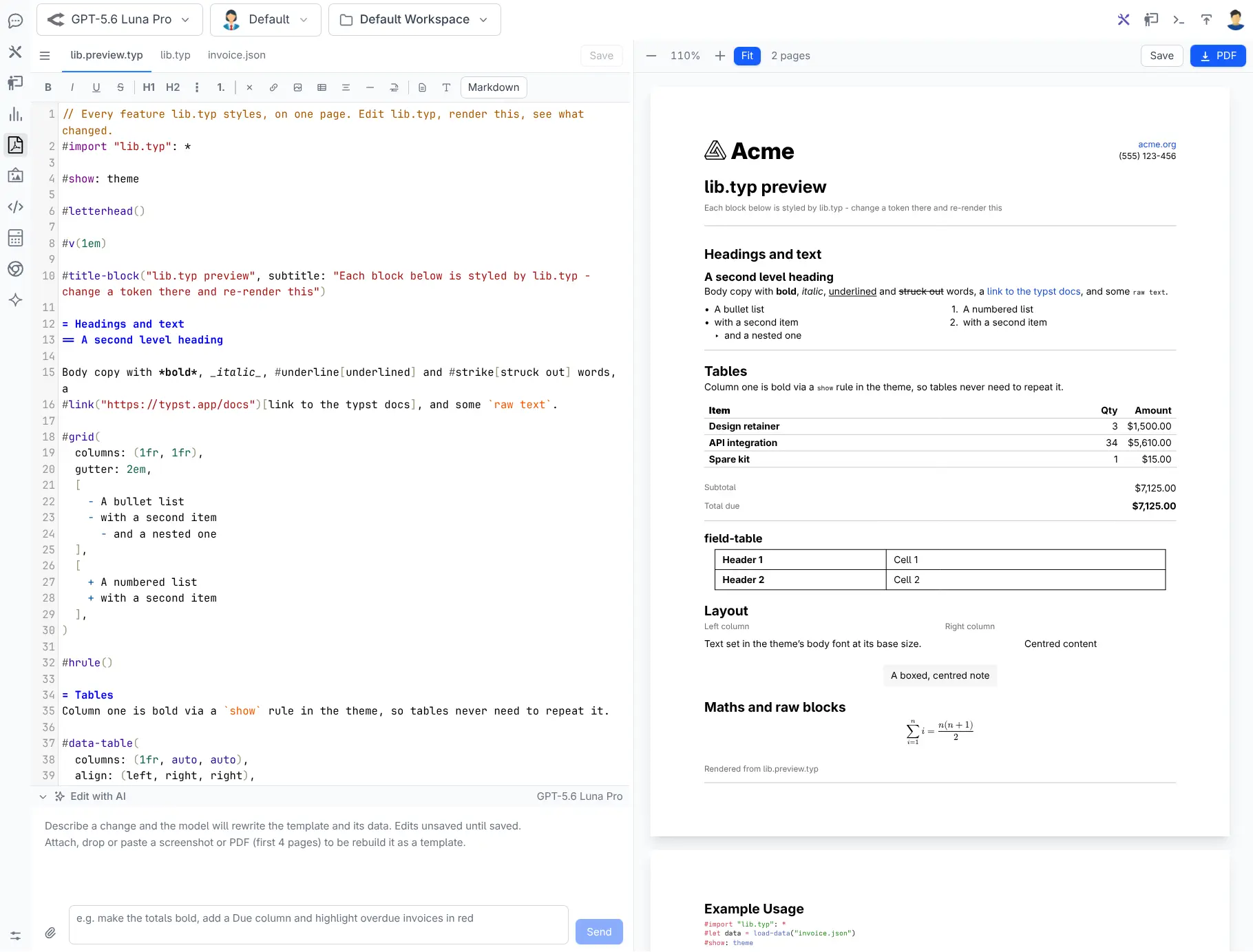

Live Library Preview (lib.preview.typ)

Grouped beneath lib.typ in the Explorer is lib.preview.typ. This single-page document renders every component styled by lib.typ (headings, callouts, tables, totals, rules). Modifying lib.typ updates lib.preview.typ in real-time, letting you verify design system updates instantly across all document elements.

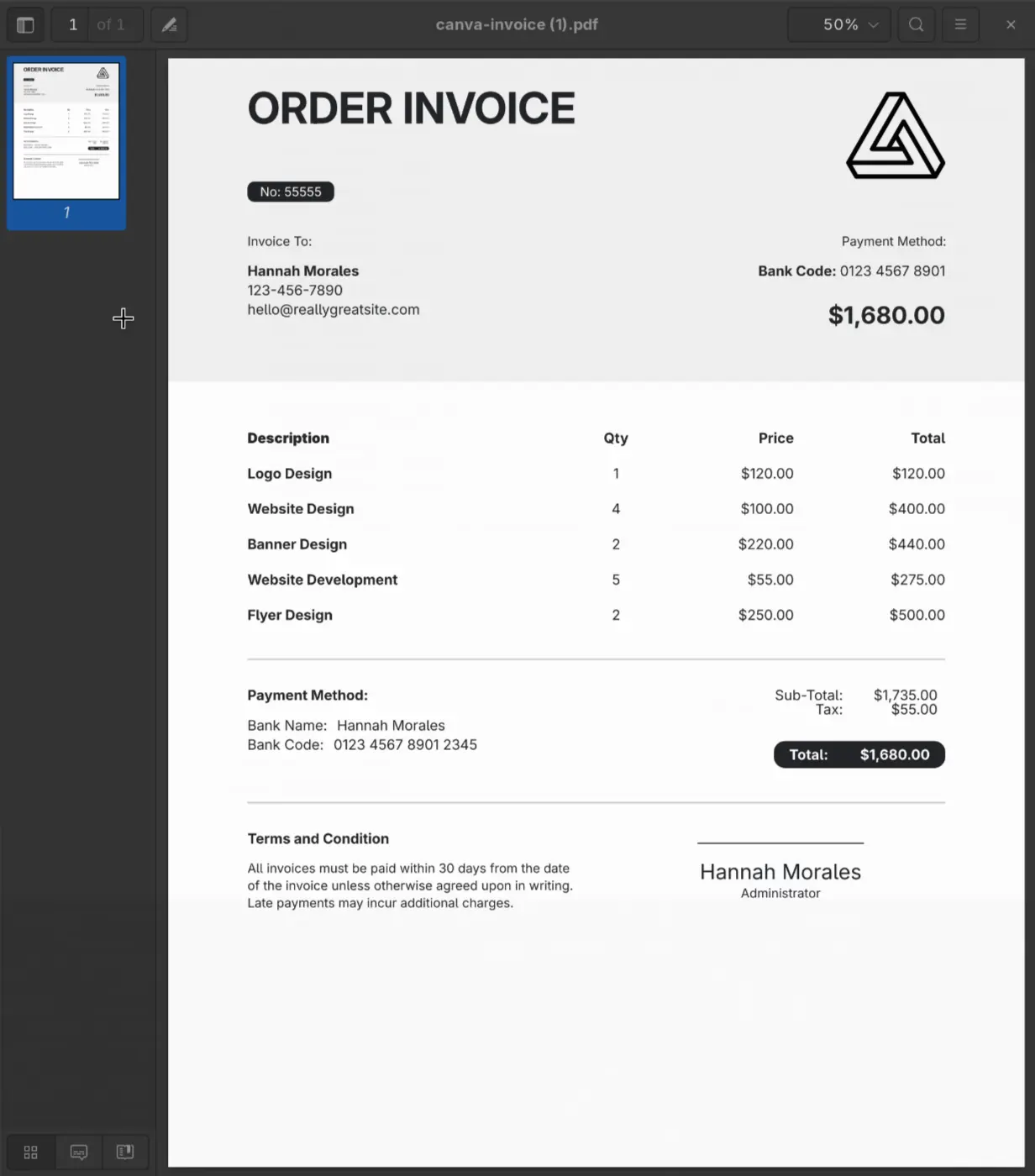

Exporting & Saving PDFs

The PDF Studio offers flexible options for saving and exporting your compiled documents:

• PDF Download: Click PDF in the top action bar to download the compiled PDF file immediately.

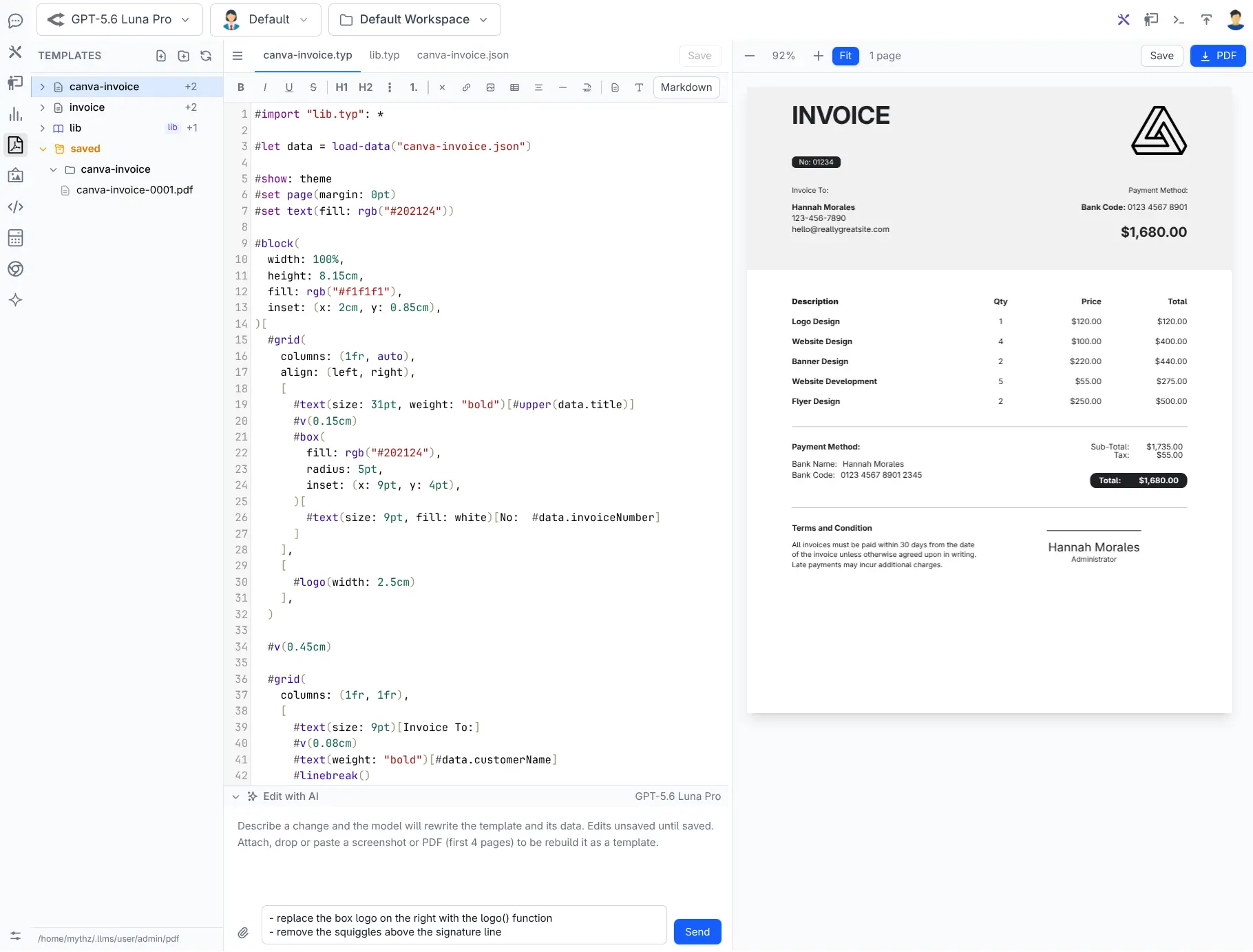

• Save Rendered Artifacts: Click Save next to PDF to save a numbered versioned snapshot in saved/<template>/ (e.g., invoice-0001.pdf, invoice-0002.pdf). Saved PDFs appear directly in the Explorer tree for easy auditing and reference.

Clicking on a saved PDF will download and open it in your Operating Systems preferred PDF viewer.

Useful Features & Tips

• Deep Link Navigation: The current template state is reflected in the URL query string (/pdf?template=invoice.typ), enabling browser history navigation and bookmarking.
• Unsaved Work Safety: Navigating between templates with dirty buffers prompts you to Save, Discard, or Cancel.
• Refactoring & Renaming: Renaming a template renames its sidecar data files (.json, .ui.json), updates references within the file, and updates #import statements across dependent files.
• Diagnostic Error Jumping: Clicking a Typst error banner immediately repositions the editor cursor on the exact line and column causing the error. Press Fix to send error logs to the AI model for automatic repair.

Keyboard Shortcuts

Next Steps & Learning Typst

Typst templates are standard Typst documents. To explore advanced layout features, tables, page numbering, or math formatting:

• Explore the official Typst Documentation and Typst Tutorial.
• Open lib.preview.typ in the PDF Studio to experiment with styles in real-time.
