MCP Connections

The built-in mcp_client extension brings tools from remote Model Context Protocol (MCP) servers into llms.py conversations. Add a connection from the Tools → MCP Connections page, choose the tools a model can use, and review its calls before they reach the remote service.

mcp_client is included and enabled by default. There is no extension to install and no additional Python dependency beyond llms.py's normal runtime dependencies. Its shared connection UI also appears in ServiceStack AI.Chat.

How it differs from fast_mcp

fast_mcp remains a separate extension built on the FastMCP Python framework. It supports command-based MCP servers configured in its mcp.json, and must be installed with llms --add fast_mcp. The built-in mcp_client instead connects to remote Streamable HTTP servers and manages them through a per-user UI and config.json. It does not launch local stdio server processes.

The two extensions have different configuration files and can coexist. A connection added to one does not automatically appear in the other. Use mcp_client for a hosted HTTP endpoint such as GitHub's MCP server; use fast_mcp when you need its command-based local-server workflow.

Add a connection

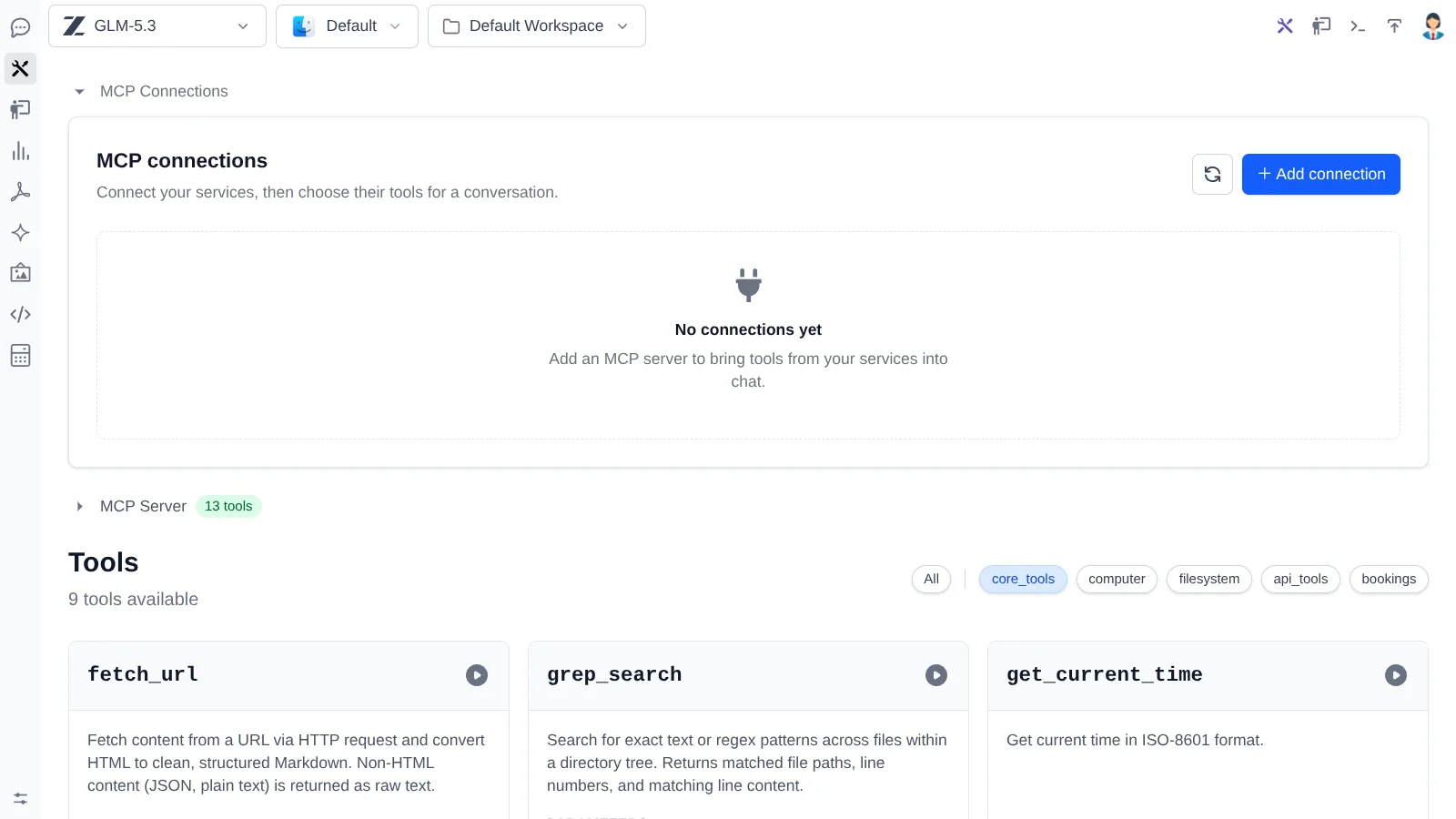

Open Tools → MCP Connections → Add connection. Enter a Name and Server URL, choose Authentication, then select Connect. Leave Authentication at None for a server that does not require remote credentials. The connected server's tools appear on the same page.

No MCP server needs to be preconfigured for this section to appear. Personal connections are managed by the current account; in llms.py's default single-user mode, that account is default. On authenticated hosts, administrators can also provide read-only Shared connections.

GitHub with a personal access token

1. Enter GitHub as the name and https://api.githubcopilot.com/mcp/ as the Server URL.
2. Choose Bearer token / personal access token.
3. Paste the PAT without the Bearer prefix, then select Connect.
4. Open Tools on the connected server and select the tools for your conversation.

llms.py sends Authorization: Bearer <token> to the MCP server. The PAT is stored in the MCP database, separately from config.json, and is never returned to the browser. Leave the token field blank when editing to retain it; enter a new token to rotate it. A connection settings change can require you to enter it again. Clear saved credentials deletes it; Disable keeps it for later.

GitHub with OAuth

OAuth is enabled by default with mcp_client. On a local installation, llms.py derives the callback URL from the loopback address serving the Tools page, including its port. If the host uses GitHub authentication, llms.py derives the MCP callback from that sign-in URL instead. The connection form shows the exact URL to register with your GitHub OAuth App. No extra MCP callback setting is needed for either setup.

For a remote installation without GitHub authentication, configure its public HTTPS callback in llms.json before adding an OAuth connection:

{
  "mcp_client": {
    "oauthRedirectUri": "https://chat.example.com/ext/mcp_client/oauth/callback"
  }
}

Use the exact callback URL shown in the connection form. For GitHub's hosted MCP server, create a GitHub OAuth App with that URL, then add a connection with:

The sign-in provider is discovered from the MCP server's protected-resource metadata. If the server advertises more than one, choose the provider where you registered your App. The Advanced issuer setting lets you choose an advertised provider explicitly; the MCP server must still publish protected-resource metadata. GitHub does not dynamically register an OAuth client for this MCP server, so the OAuth App must already exist. The client secret and resulting tokens are stored in the MCP database, never written to the connection JSON.

Select Connect, then Open sign-in to authorize the App. On success, the callback tab attempts to close and the Tools page loads the server's tools. If the tab remains open, select Close this tab; use Load tools on the Tools page if needed.

llms.py chooses OAuth scopes in the same order as AI.Chat: scopes in the MCP server's authorization challenge, scopes advertised in its protected-resource metadata, then the optional Scopes value in Advanced OAuth settings. When the authorization server advertises offline_access, llms.py also requests it so the provider can issue a refresh token. GitHub advertises its MCP scopes, so its connection normally needs no manual scope entry. If an existing connection reports access_denied, choose Connection options → Reauthorize and grant the requested access at the provider. Reauthorization keeps the saved OAuth App client secret.

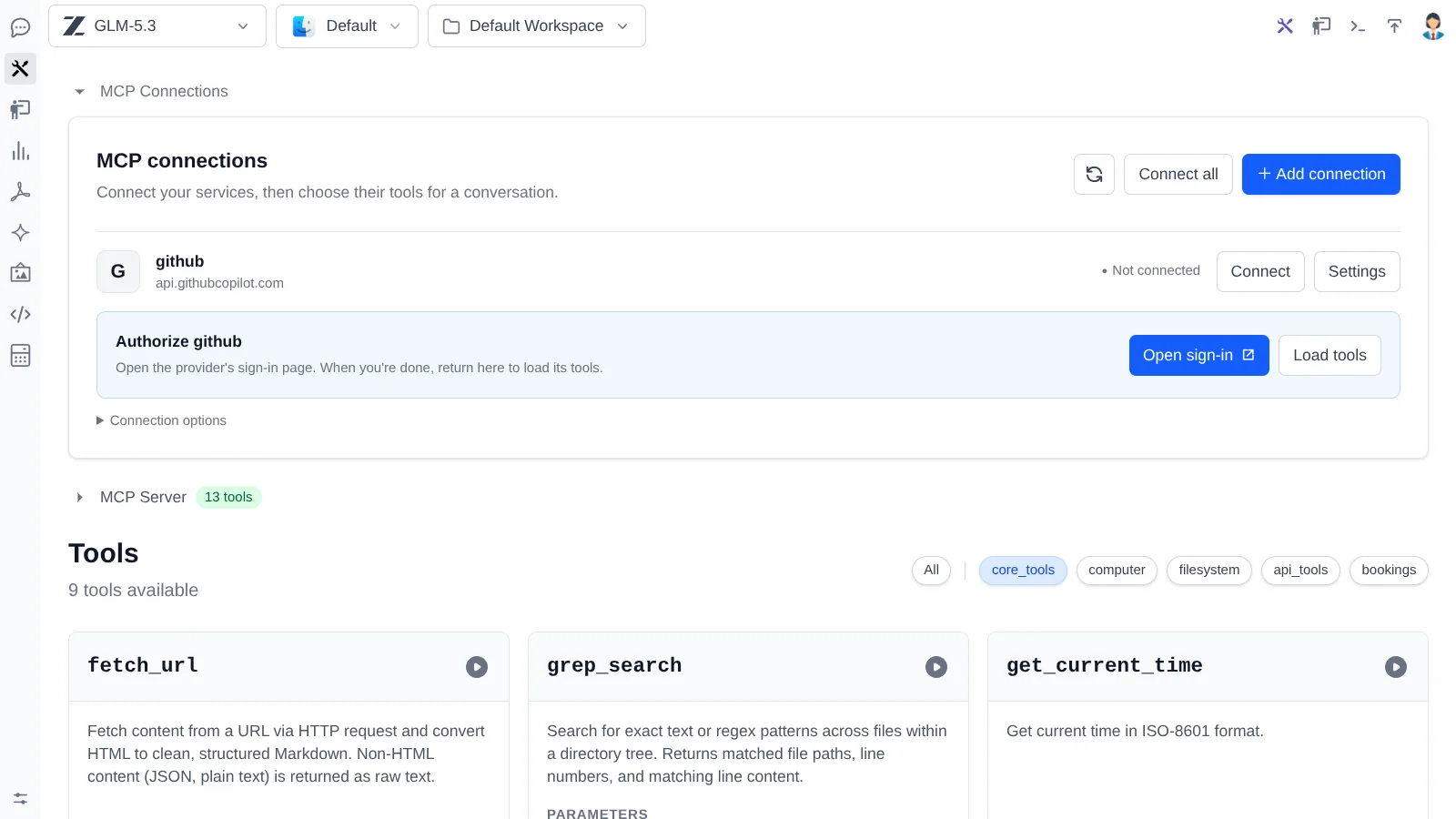

Authorize the OAuth App1 / 2

Authorize the OAuth AppChoose tools after sign-in

Clear saved credentials removes OAuth tokens but retains the saved client secret for a new sign-in. Removing or reconfiguring a connection clears the client secret. Revoking access at the provider is a separate action in your GitHub account settings.

Choose tools for a conversation

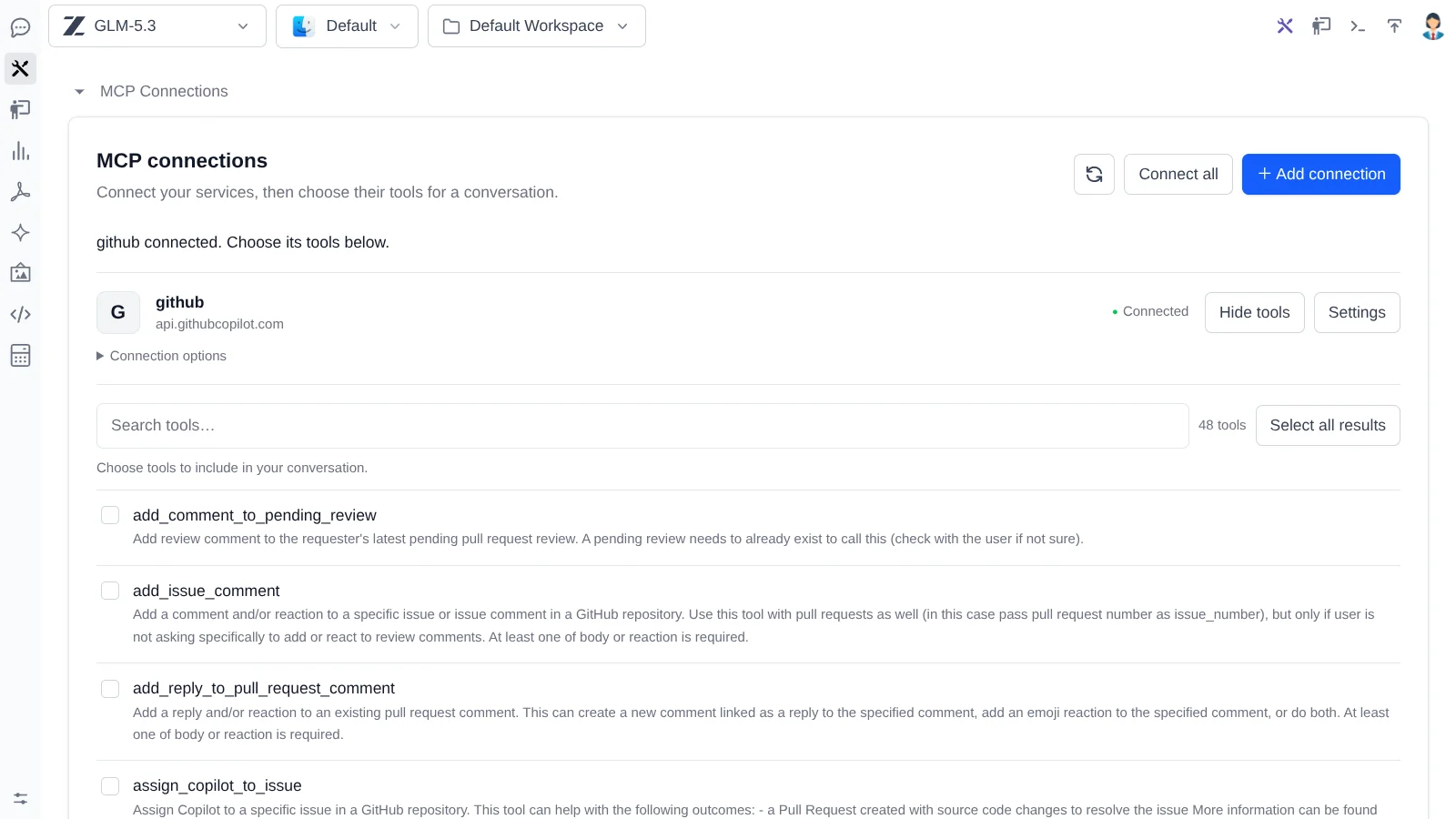

Select Tools on a connected server to see names, descriptions and input schemas. Search the catalog, tick individual tools, or use Select all results to select every tool matching the current search. The selection controls which remote definitions are offered to the model in that conversation.

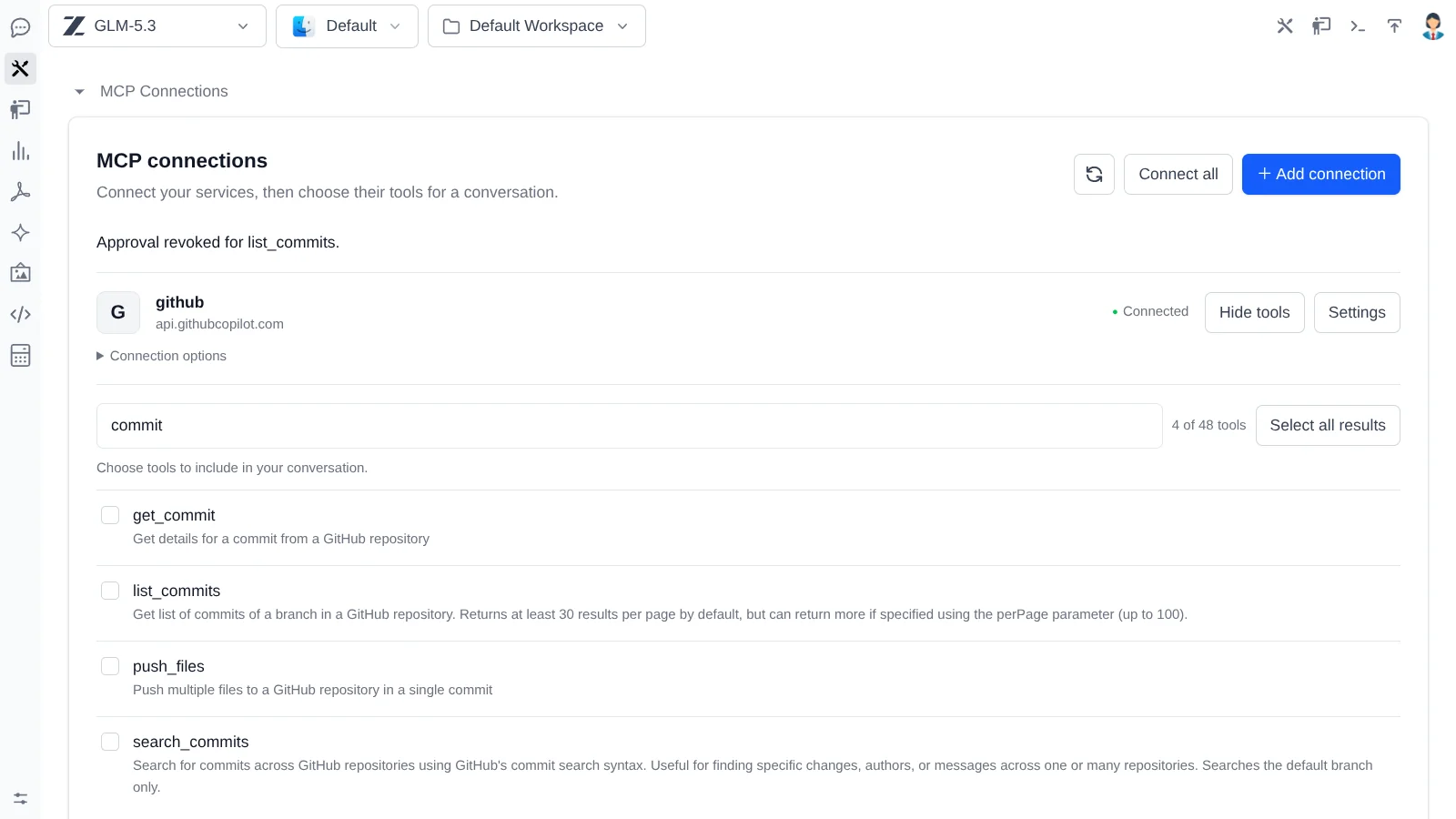

Filter the remote catalog1 / 2

Filter the remote catalogSelect all matching tools

Each connection has a group such as mcp_github. Remote tool aliases have stable generated suffixes; use the names shown by llms.py rather than assembling an alias yourself. A conversation's All selection includes local tools by default. Remote connections join it only when the host sets includeInAll for that connection; otherwise choose its group or individual tools.

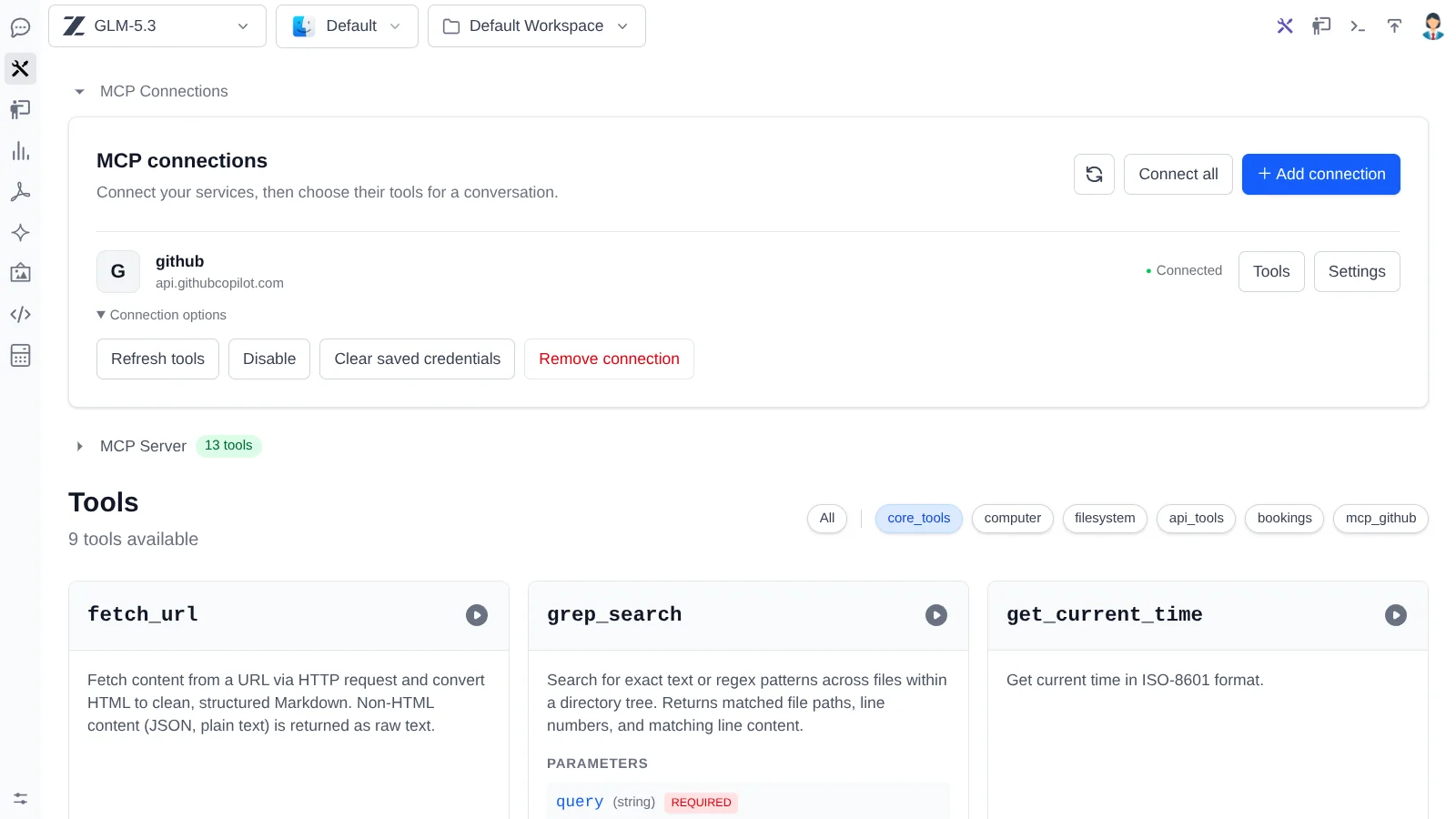

The top refresh button reloads displayed connection status. Connect all reconnects every enabled connection with saved credentials and refreshes its tools. Connection options → Disable excludes one server from Connect all and tool discovery without deleting credentials; Enable & connect restores it. A server that requires browser sign-in must be connected individually.

Review tool calls

A personal MCP tool call normally pauses for approval. The request shows the connection, tool, input schema and proposed JSON arguments. You can edit the arguments, then select Approve and run or Reject.

Always approve this tool lets that tool run without another prompt for this account and connection, regardless of its future arguments. The Tools list labels always-approved tools; select the label's × to revoke the grant. Shared host connections may define a different approval policy. A server's read-only annotation does not itself waive approval.

Tool responses remain in the conversation. Text and structured JSON are displayed directly; supported image and audio results stay with the user's thread rather than being published to a shared cache.

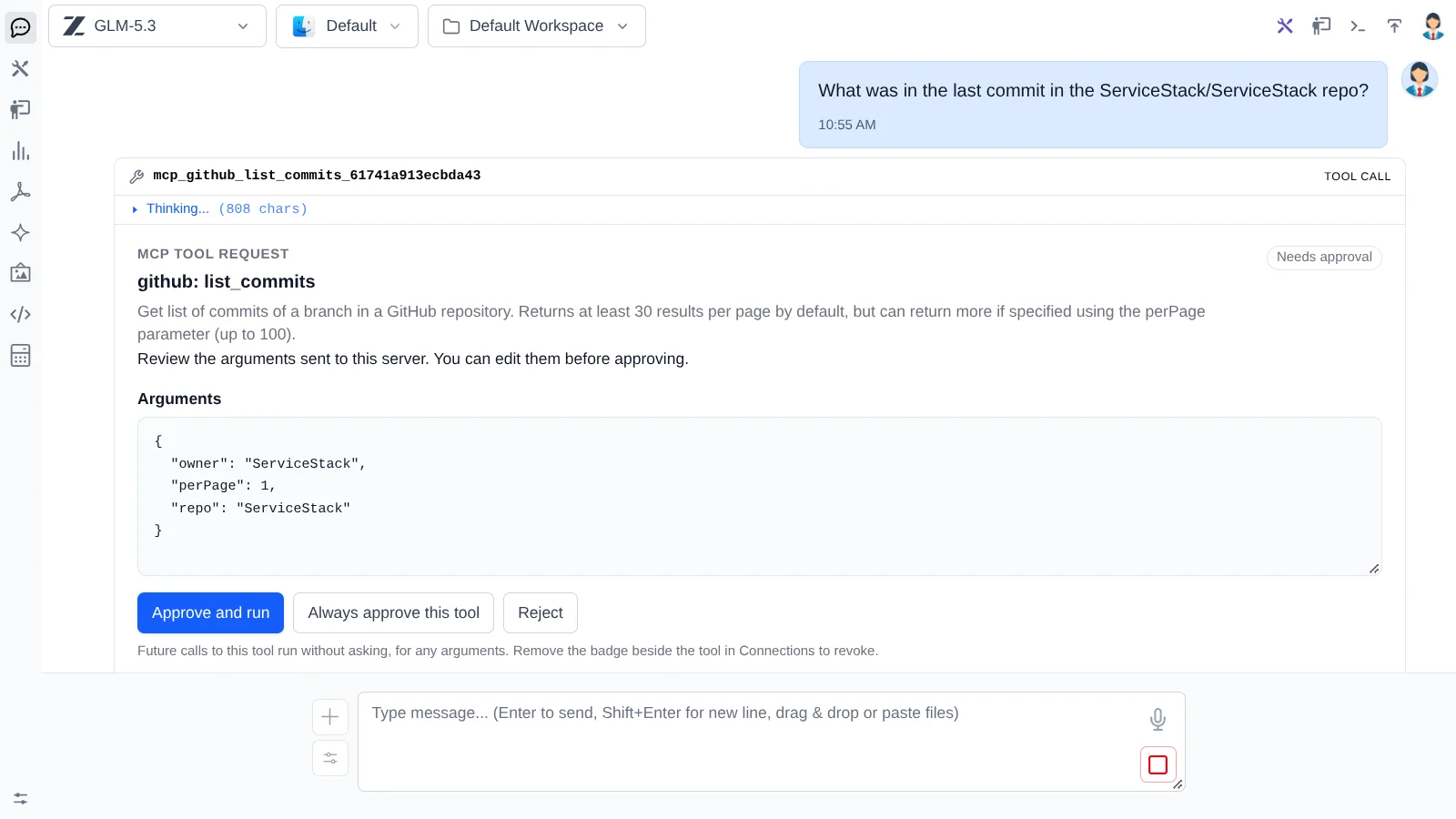

The remote call in chat1 / 2

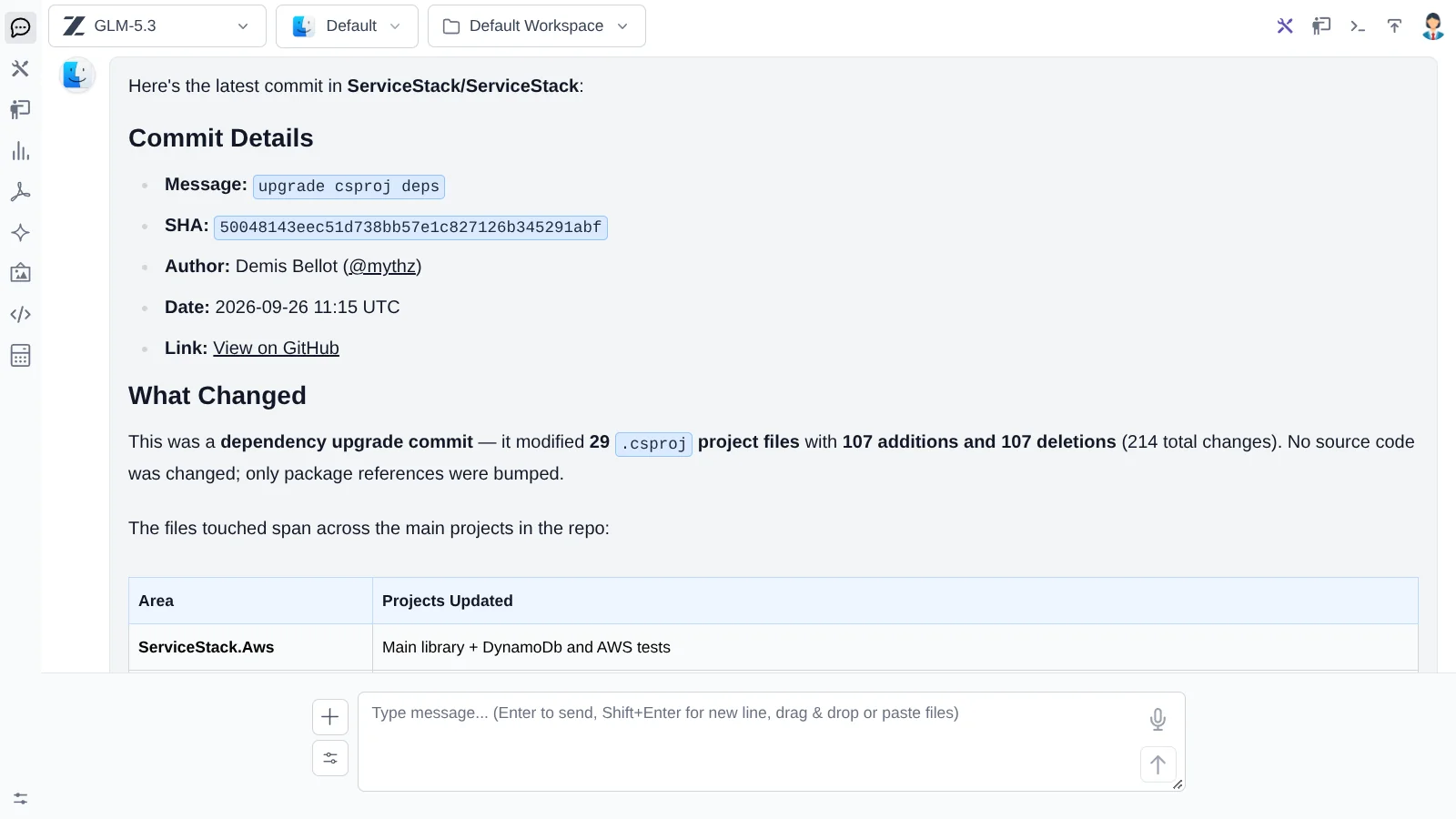

The remote call in chatInspect the response

If a remote call was sent but its response was lost, llms.py reports an uncertain outcome. It will not replay the operation. Check the remote service, then choose I checked — continue without replay to let the conversation proceed. This acknowledgment does not repeat the call or establish whether it succeeded remotely.

Configuration and ownership

Connections live in extension-scoped files under llms.py's user directory:

The UI saves personal connections to these files. To provide a shared anonymous connection on an authenticated host, an administrator can use:

{
  "servers": [
    {
      "id": "knowledge",
      "displayName": "Company Knowledge",
      "endpoint": "https://knowledge.example.com/mcp",
      "auth": { "mode": "anonymous" },
      "allowedTools": ["search", "read_document"],
      "deniedTools": [],
      "includeInAll": false
    }
  ]
}

Shared connections are labeled in the UI, but their settings remain host-controlled. Personal connections cannot override a shared ID or set host-secret references, audience rules, approval bypasses, limits or network exceptions. An empty allowedTools list exposes no tools; "*" allows all discovered tools, and deniedTools takes precedence. That host policy is separate from the tools a user selects for a conversation. New personal connections allow discovered tools by default while still requiring approval for calls.

Connection edits are read on subsequent requests without a server restart. Saves are atomic and revision-checked, so a stale browser tab cannot silently replace another change. Credentials are stored separately from JSON. If you run multiple llms.py instances, share the connection directory and MCP database.

Enablement and credential storage

mcp_client loads by default, including on a fresh installation with no servers. To turn off both its routes and Tools-page section, set:

{
  "mcp_client": { "enabled": false }
}

Standalone llms.py stores Bearer tokens, OAuth client secrets, OAuth tokens and pending sign-in state as plaintext JSON in the owner-scoped MCP SQLite database. Keep the database private to the host account. An embedding host can configure both protect and unprotect hooks to protect these values at rest; without hooks, they are stored unchanged. Both OAuth and Bearer-token connections work in llms.py's default single-user mode. The MCP callback is derived from the configured GitHub sign-in URL or the local loopback address; remote deployments using other sign-in methods should set mcp_client.oauthRedirectUri explicitly.

Host policy such as the OAuth callback, limits and network access can be set in the mcp_client section of llms.json; an embedding host can provide app.mcp_client_config and authorization hooks instead. These host settings require a restart. By default, outbound destinations must use HTTPS on port 443 with normal certificate validation. Private destinations, HTTP and other ports require explicit host network-policy allowances; personal connection forms cannot relax them.

Troubleshooting

The built-in client supports remote Streamable HTTP tools with JSON and SSE responses. Local stdio processes, legacy SSE transport, MCP prompts/resources browsing, sampling and elicitation are outside this extension's current scope. For local command-based MCP servers, see fast_mcp.
