Gemini RAG

Gemini RAG turns your documents into a managed knowledge system built on Google Gemini's File Search API. Import files, documentation repositories, or entire websites into isolated File Stores, organize them with categories and metadata, then ask questions over exactly the documents you choose.

The same knowledge base can power private research chats and public, embeddable Website Assistants. Responses stay grounded in your indexed content and can include citations that lead readers back to the original source.

What you can build

Install and configure

Install the Gemini extension:

Create an API key in Google AI Studio and add either variable to the server environment or .env file:

GOOGLE_API_KEY=your_api_key
# or
GEMINI_API_KEY=your_api_key

GOOGLE_API_KEY takes precedence when both are present. Restart llms.py after changing the server environment. You also need at least one Google Gemini chat model configured in llms.py; the Gemini model selector only lists compatible Google chat models.

MIME type overrides

The upload worker normally lets Gemini infer a file's type. If Gemini rejects or misidentifies a particular extension, map it explicitly with GEMINI_UPLOAD_MIME_TYPES:

# Comma-separated extension:mime/type pairs; do not include the leading dot
GEMINI_UPLOAD_MIME_TYPES="mdx:text/markdown,cshtml:text/html,ss:text/markdown"

The built-in mapping is mdx:text/markdown,cshtml:text/html. Setting the environment variable replaces that mapping, so retain any defaults you still need. Restart llms.py after changing it. Use an override only for extensions that need one; forcing the wrong type can reduce indexing and retrieval quality.

File Stores

A File Store is an isolated searchable corpus. It is also the practical ownership and lifecycle boundary: documents that should be searched, administered, and deleted together belong in the same store.

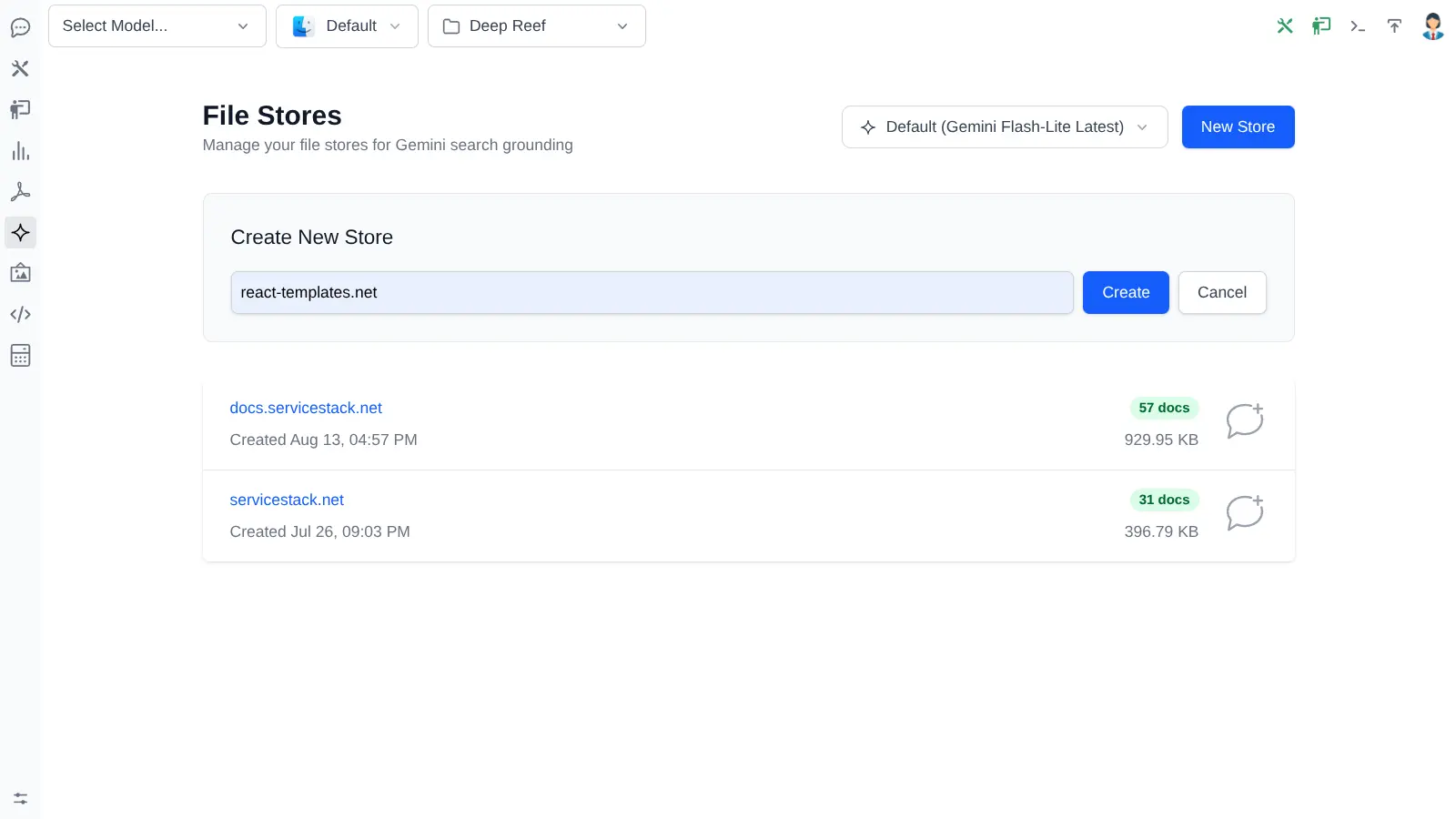

The Gemini home page lists each store with its document count and size. Create a store with a clear, stable name such as docs.example.com, or use the chat icon to immediately query an existing one.

Opening a store exposes three deep-linkable workspaces:

• Explore - browse categories, search documents, apply metadata filters, edit metadata, inspect coverage, monitor uploads, and start grounded chats.
• Import - upload files, synchronize folders, or stage a website crawl.
• Assistants - design, publish, and review website chat Assistants grounded in the store.

The selected workspace, Import subsection, Explorer category, saved crawl, Assistant, and conversation are preserved in the URL, so a reload or shared link returns to the same view.

Quick start

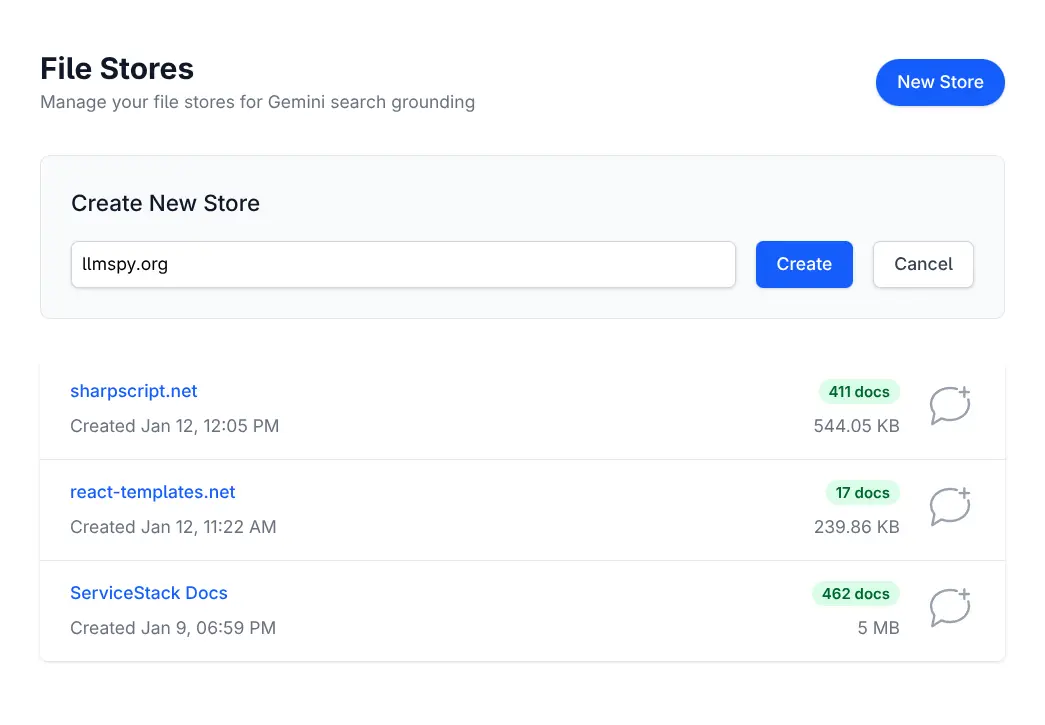

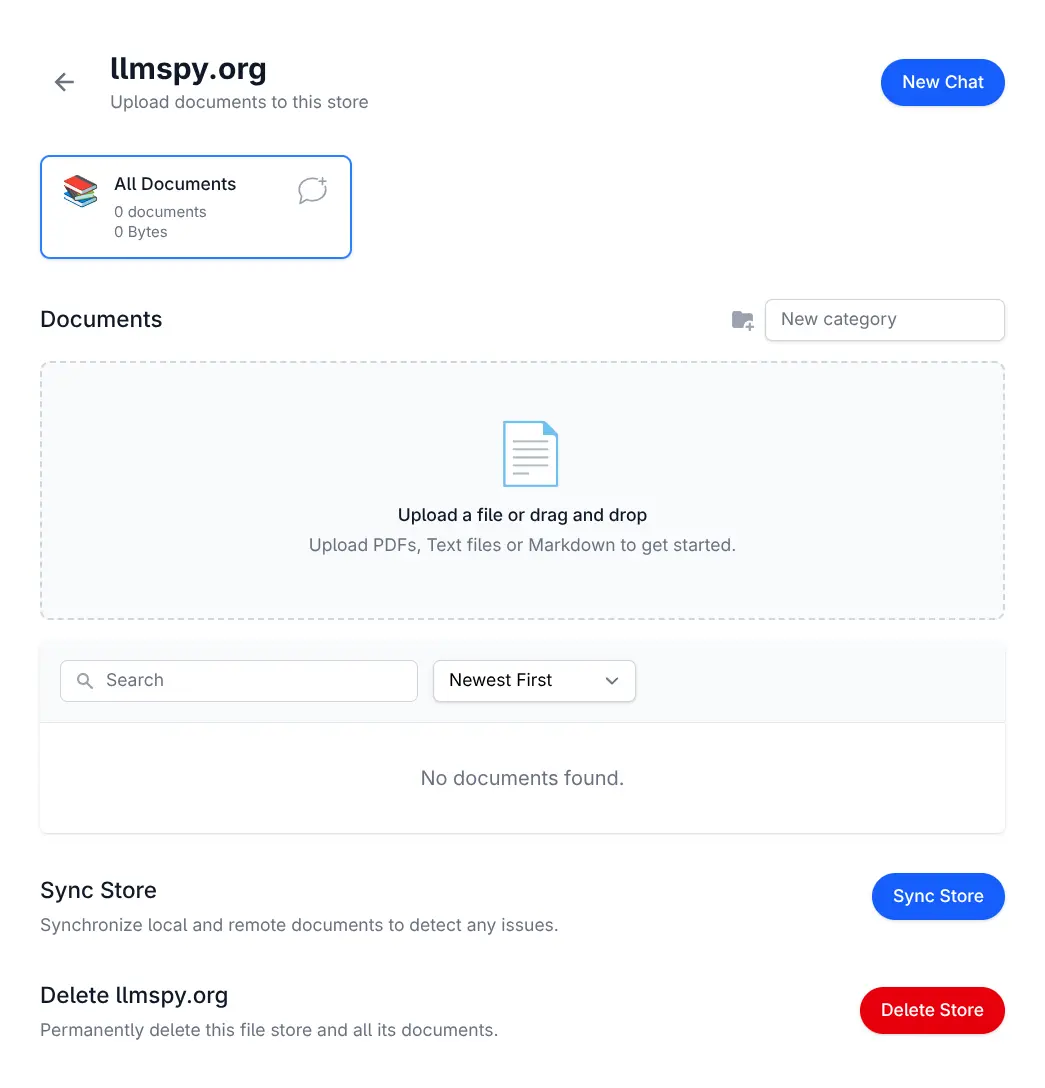

1. Open Gemini from the left toolbar and create a File Store.
2. Open Import → Upload files and drop in one or more documents.
3. Optionally choose a destination category and add metadata.
4. Upload the files, then follow View uploads to watch Gemini indexing progress.
5. In Explore, choose New Chat to query the whole store-or apply filters and choose Ask about this.
6. Expand Sources below an answer to inspect the evidence Gemini retrieved.

That is the smallest useful RAG workflow. The sections below show how to turn it into a repeatable, curated knowledge pipeline.

Importing knowledge

Choose the ingestion path that matches the source:

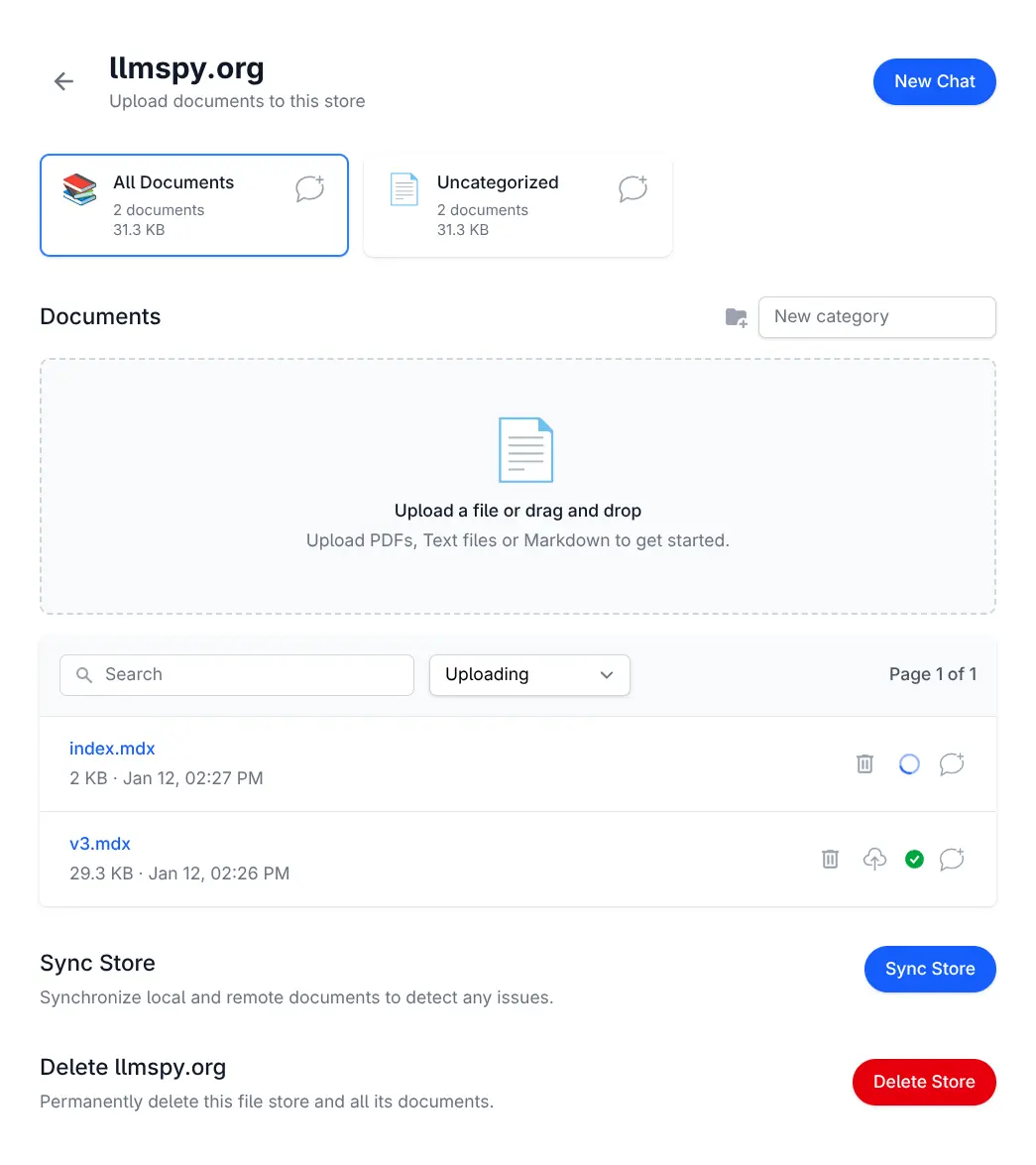

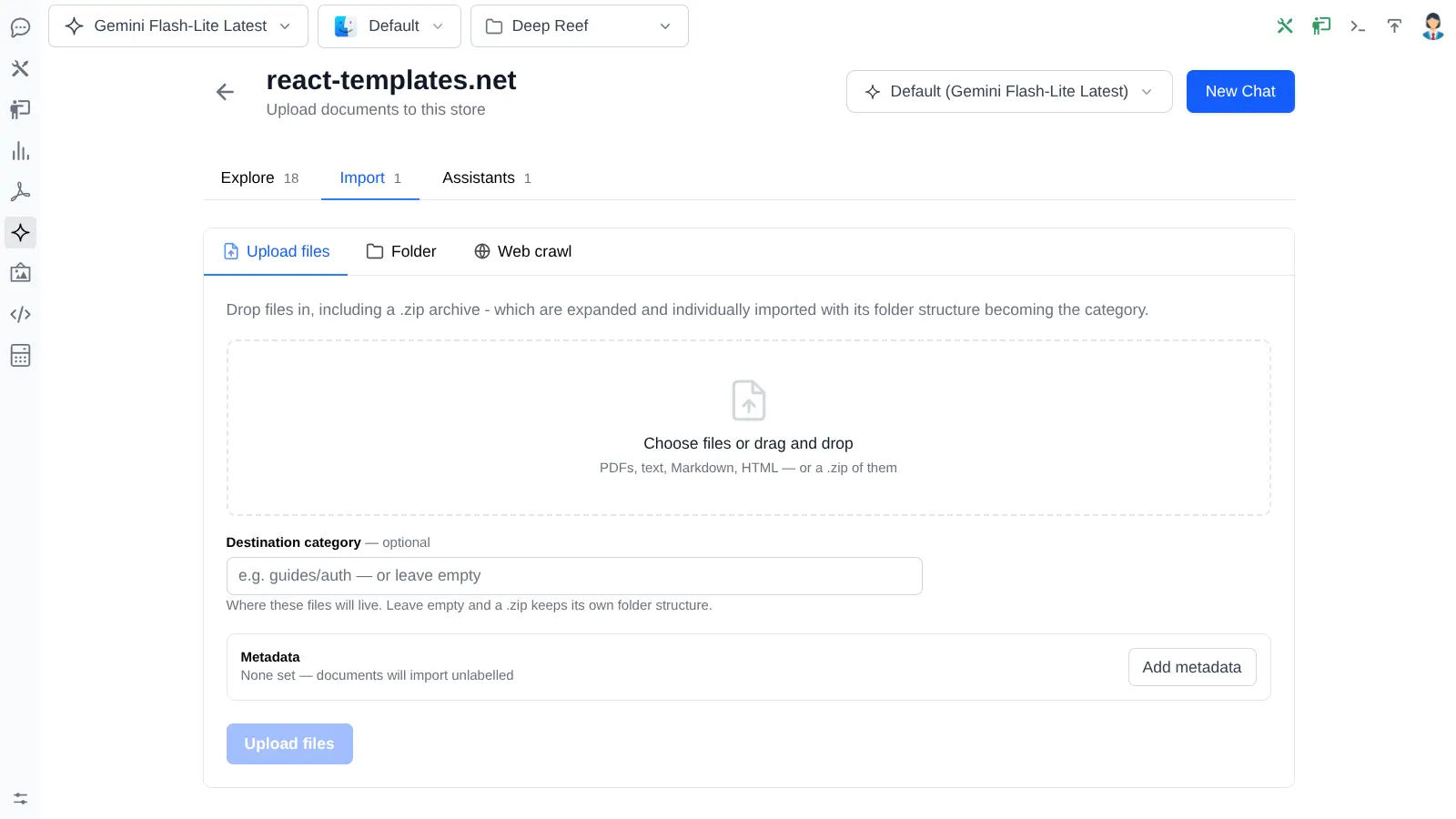

Upload files and ZIP archives

The upload drop zone accepts PDF, Markdown/MDX, plain text, HTML, reStructuredText, AsciiDoc, CSV, JSON, YAML, and ZIP archives containing supported files.

Choose an optional Destination category before uploading. A ZIP is expanded safely and each supported entry becomes a document; its internal directories are preserved beneath that category. For example, guides/auth/login.md uploaded to products becomes:

products/guides/auth/login.md

Hidden system files, macOS metadata, dependencies, build output, and other common archive noise are excluded automatically.

Import a local folder

Folder import scans a directory on the machine running llms.py. It is designed for sources you expect to preview and synchronize repeatedly.

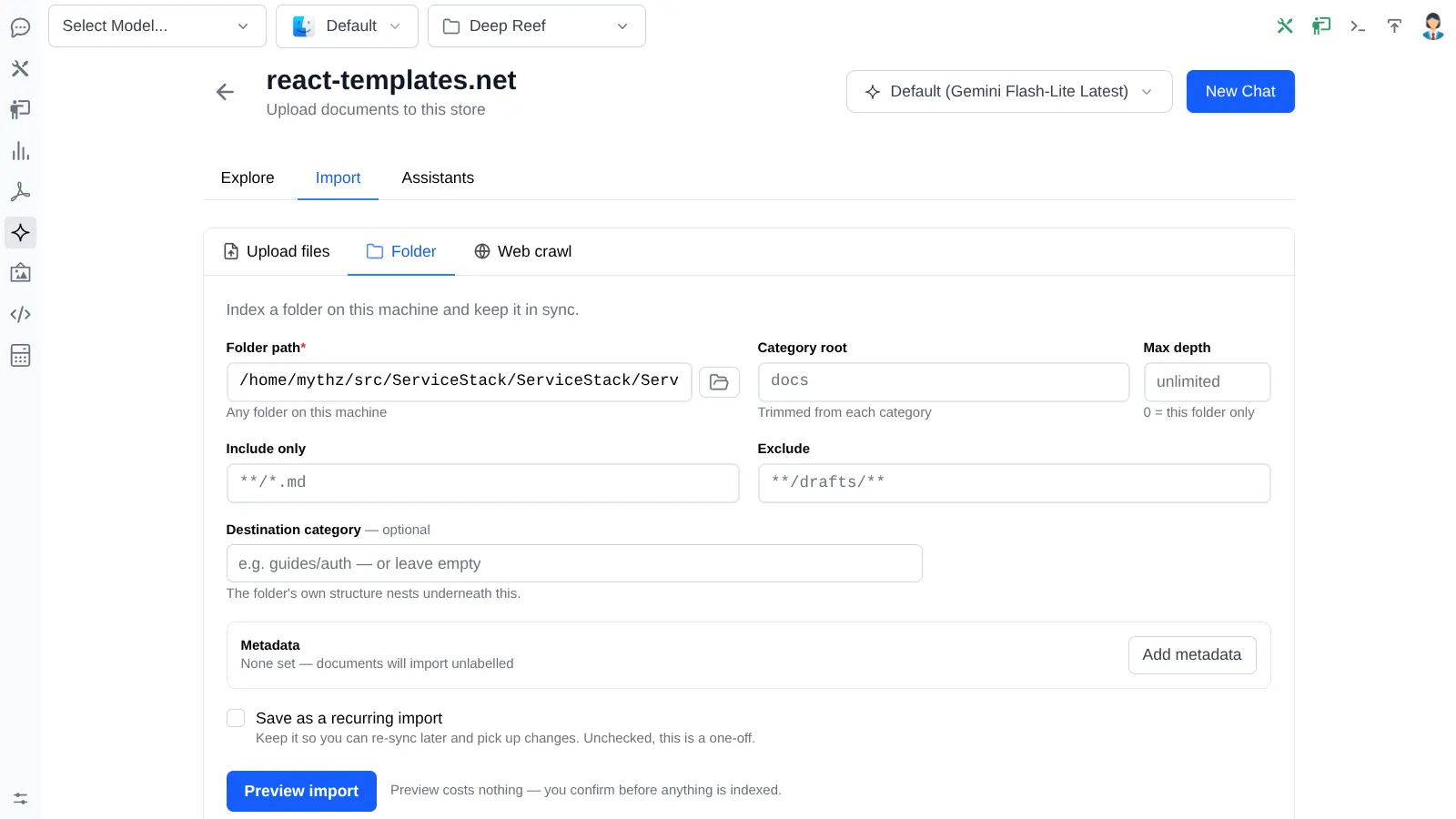

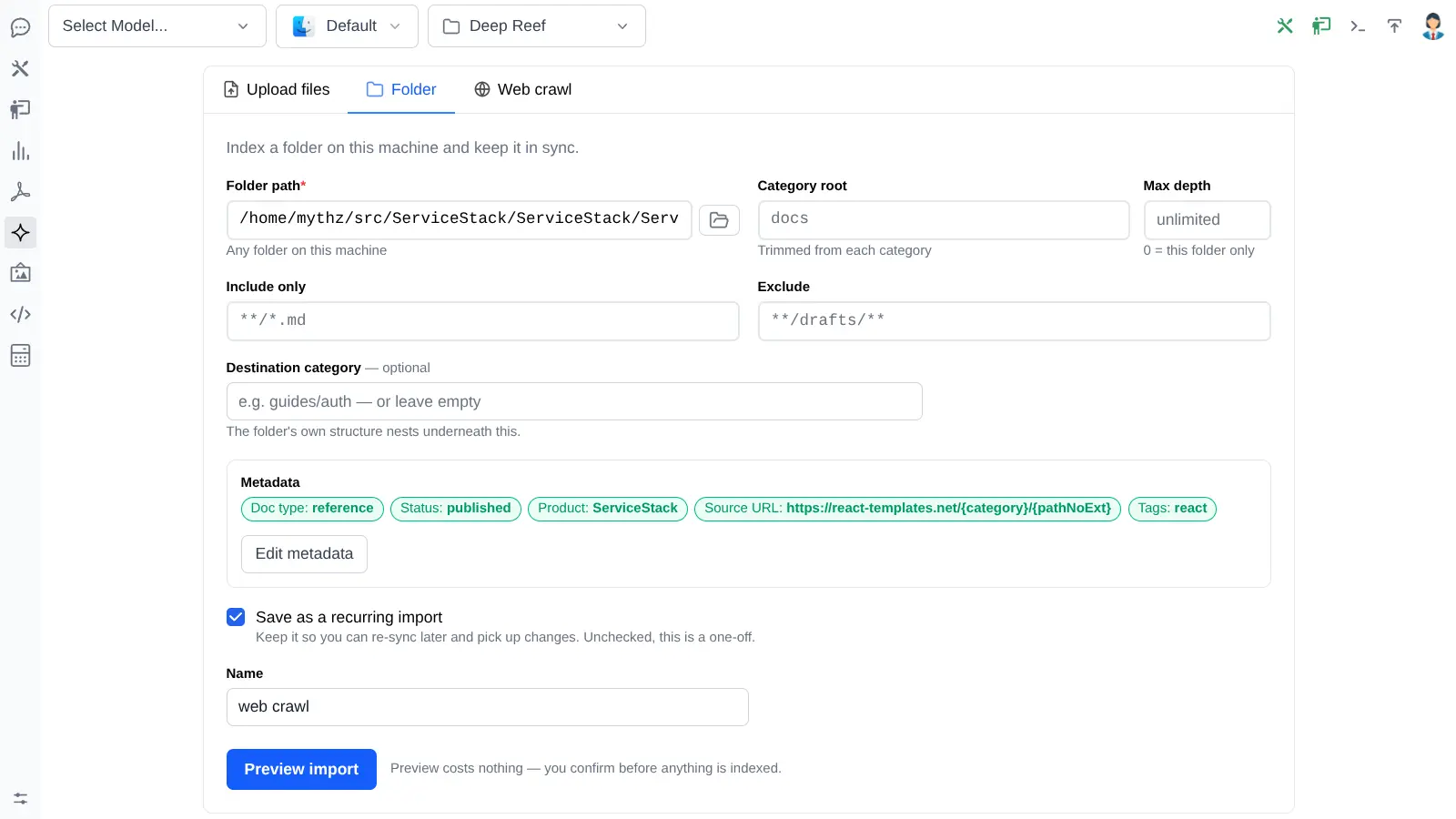

Folder configuration1 / 5

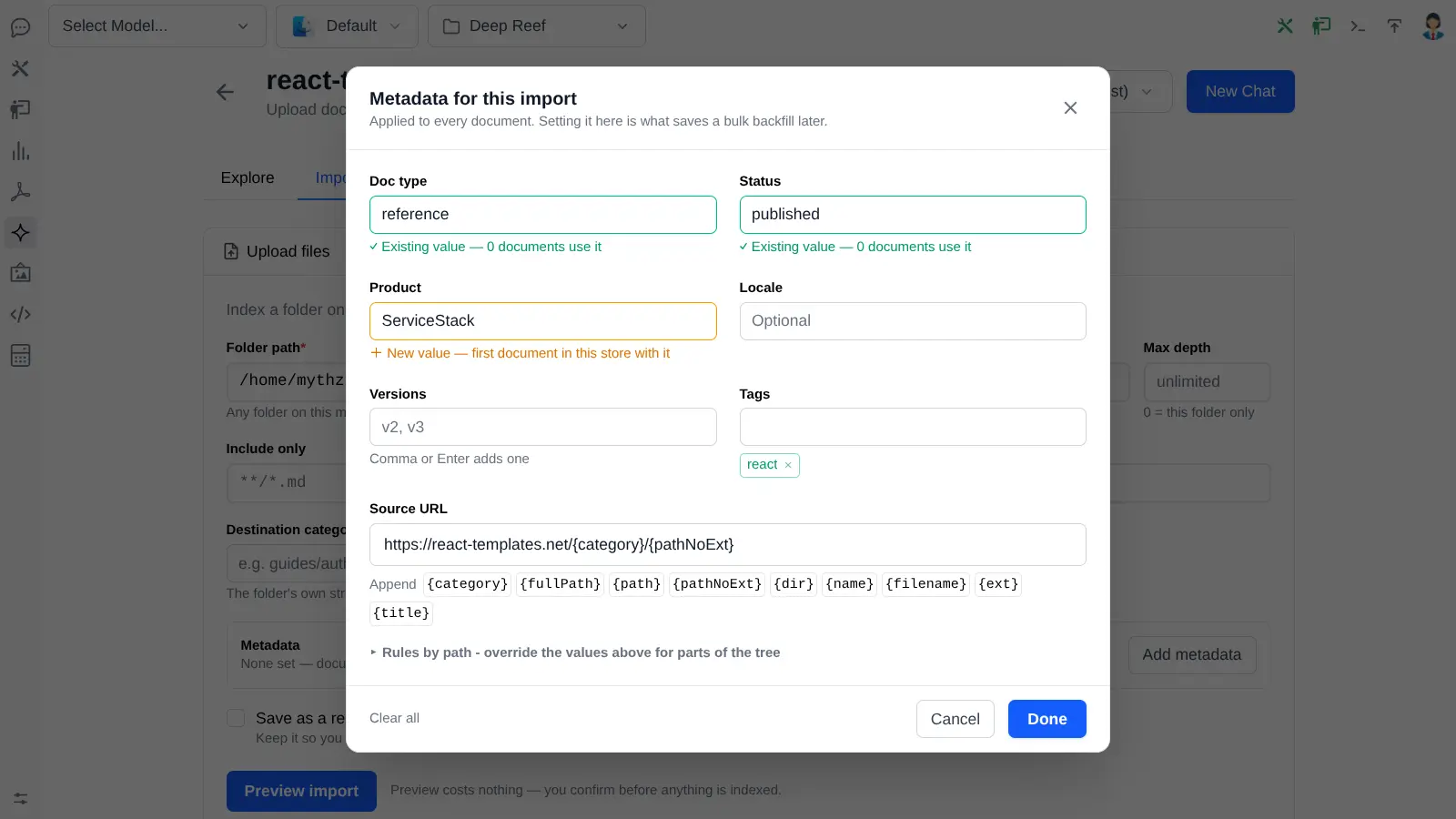

Folder configurationMetadata editorApplied metadataPreview changesUpload progress

Categories come from a document's directory, not its filename. Given docs/guides/auth/login.md, a Category root of docs produces guides/auth. Adding a destination of products produces products/guides/auth.

Preview before committing

Preview import is read-only: it scans and compares the source without writing documents, uploading content, or incurring embedding work.

Only Import N documents applies the preview. Progress updates naturally-for example, Uploading 16/21 documents to docs.example.com…-and View uploads opens Explorer at the destination category sorted by active uploads. Pending uploads resume when the application starts again after an interruption.

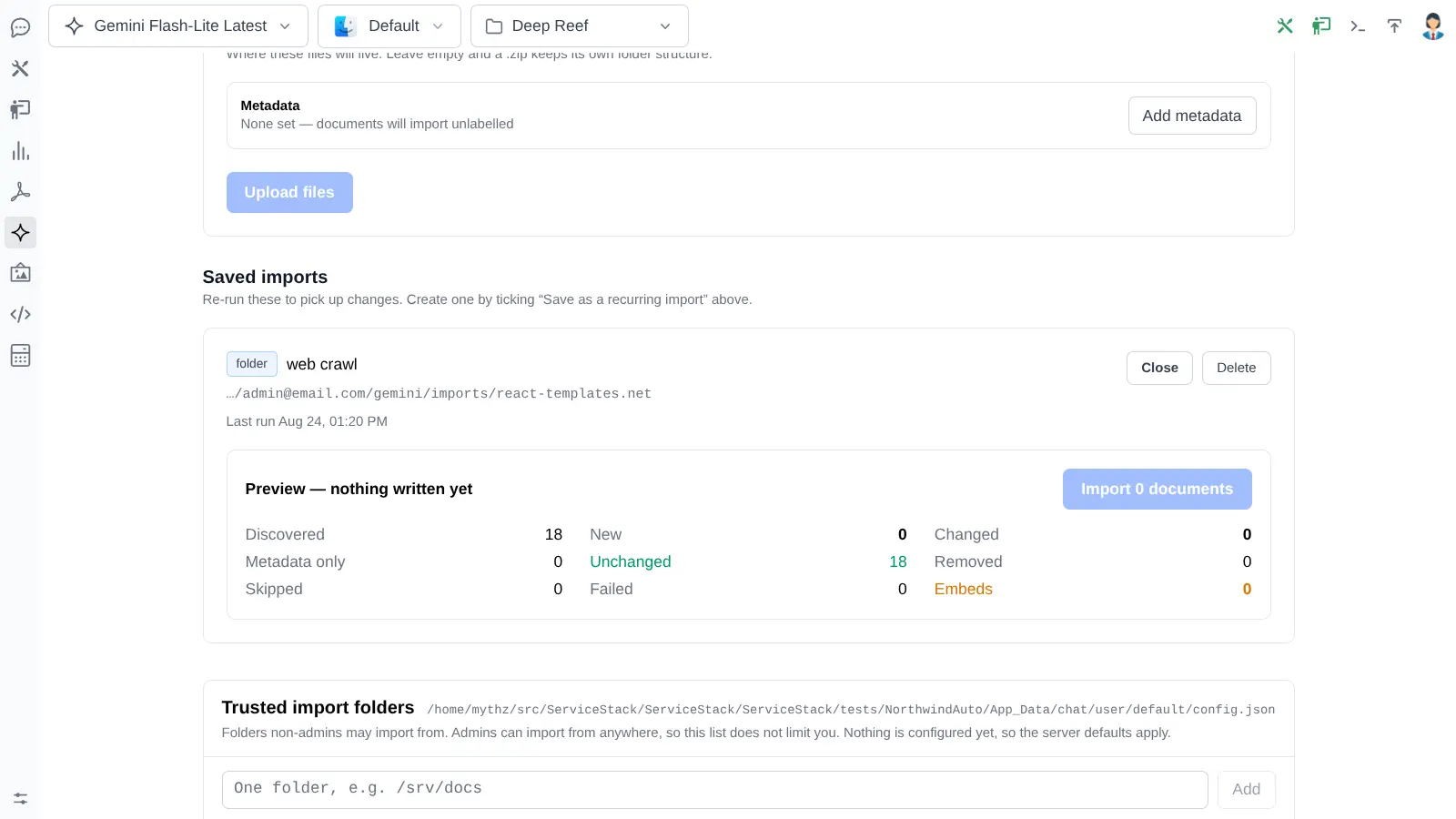

Saved imports

Enable Save as a recurring import and give the import a unique name before confirming it. A preview alone does not create a saved import; it appears only after the import is actually run.

Re-running a saved import compares normalized content and metadata independently. Unchanged files are not embedded again. Content changes and metadata-only changes both require re-indexing because Gemini cannot patch indexed metadata in place.

When an upstream file disappears, the import removes its Gemini copy and retains a local removed upstream tombstone so the change remains visible. A deletion safety rail refuses an unexpectedly large removal, protecting against a mistyped path or incomplete source listing.

Trusted import folders

Server-side folder access is privileged:

• Administrators may import any accessible folder.
• Other users are restricted to server-allowed directories and Gemini Trusted import folders.
• Real paths are checked so a symlink cannot escape an allowed root.

Trusted roots can use ~, $WORKSPACE, and $TEMP, and can also be configured globally:

{
  "gemini": {
    "importRoots": ["$WORKSPACE/docs", "/srv/knowledge"]
  }
}

Crawl a website into Markdown

Web crawl is intentionally a two-stage workflow:

1. Fetch pages into a private, inspectable Markdown workspace.
2. Clean and review that workspace, then import it through the normal Folder pipeline.

Nothing is sent to Gemini during the crawl itself. This separation makes noisy navigation, duplicate content, or extraction mistakes visible before they affect retrieval quality.

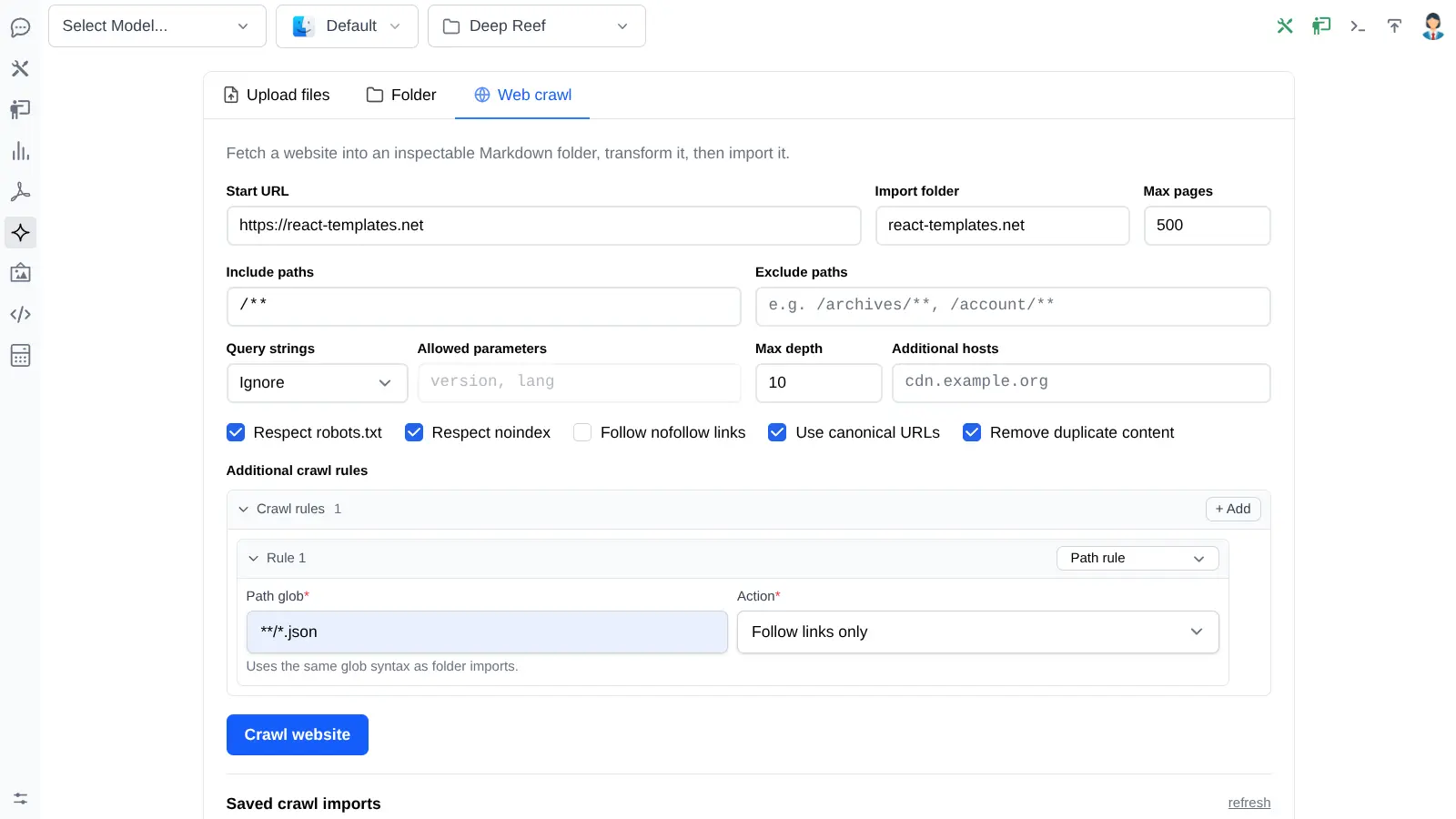

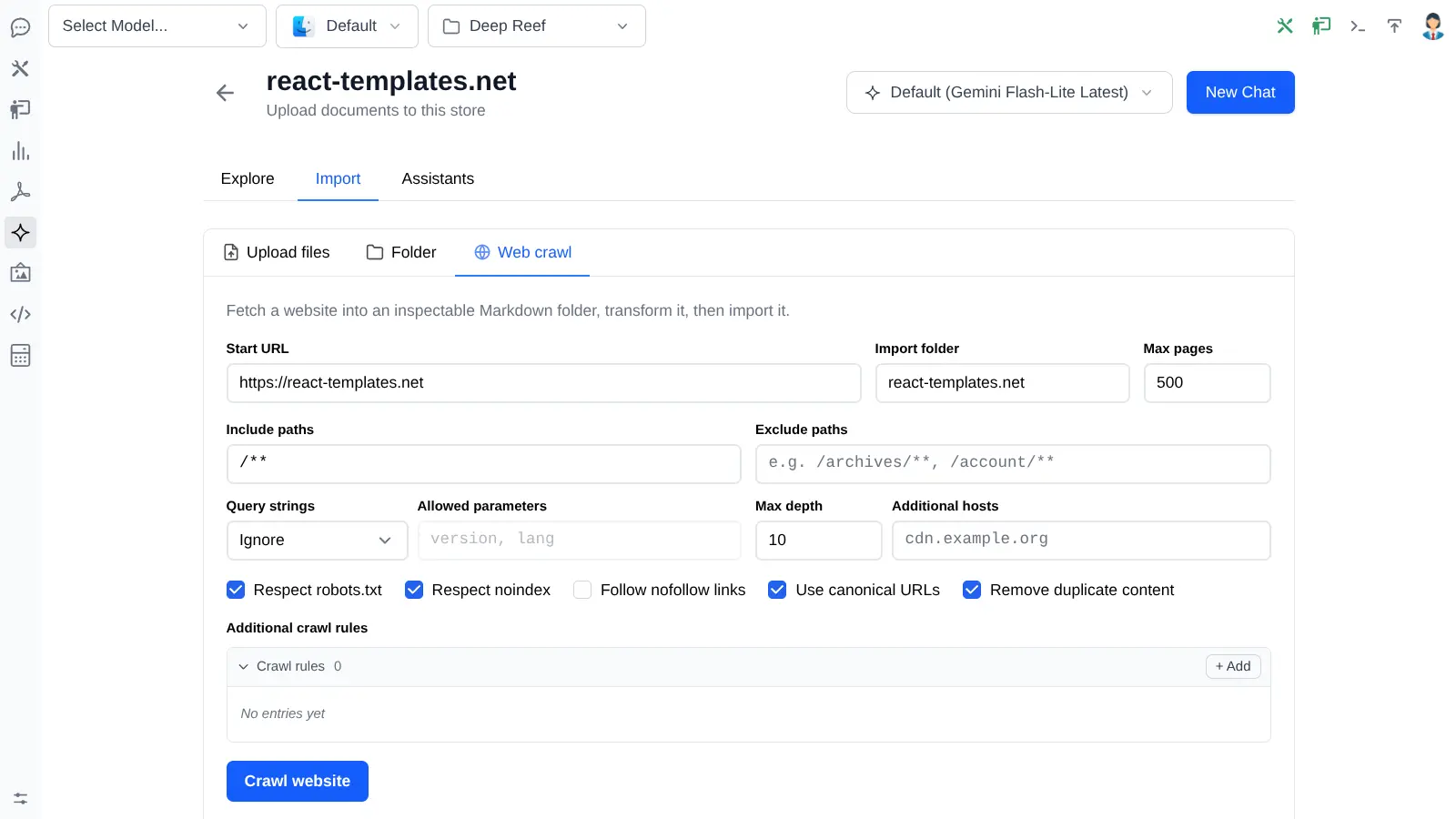

Define crawl boundaries

Enter a Start URL and the import folder is pre-populated from its host. A port uses a dash, so http://localhost:5000 becomes localhost-5000. Crawls are stored beneath:

users/<user>/gemini/imports/<domain>/

Crawl boundaries1 / 2

Crawl boundariesAdditional crawl rules

The common controls cover the safety rules most crawls need:

• Include / Exclude paths use folder-style globs such as /docs/** and /archives/**.
• Max pages and Max depth bound the crawl.
• Query strings can be ignored, selectively allowed, or included with tracking/session parameters excluded and variants capped per path.
• Crawls stay on the same origin unless named supporting hosts are allowed.
• robots.txt, noindex, nofollow, canonical URLs, HTML content types, and duplicate extracted content are handled explicitly.
• Ordered additional rules can Exclude a match or Follow links only without saving the page.

The crawl output uses clean paths: /docs/templates/next-rsc becomes docs/templates/next-rsc.md; the site root becomes index.md; and a directory URL such as /docs/ becomes docs/index.md.

Each file begins with frontmatter containing available page information such as title, source URL, path, query string, description, and tags. Page metadata is more specific than global crawl metadata and therefore overwrites matching defaults.

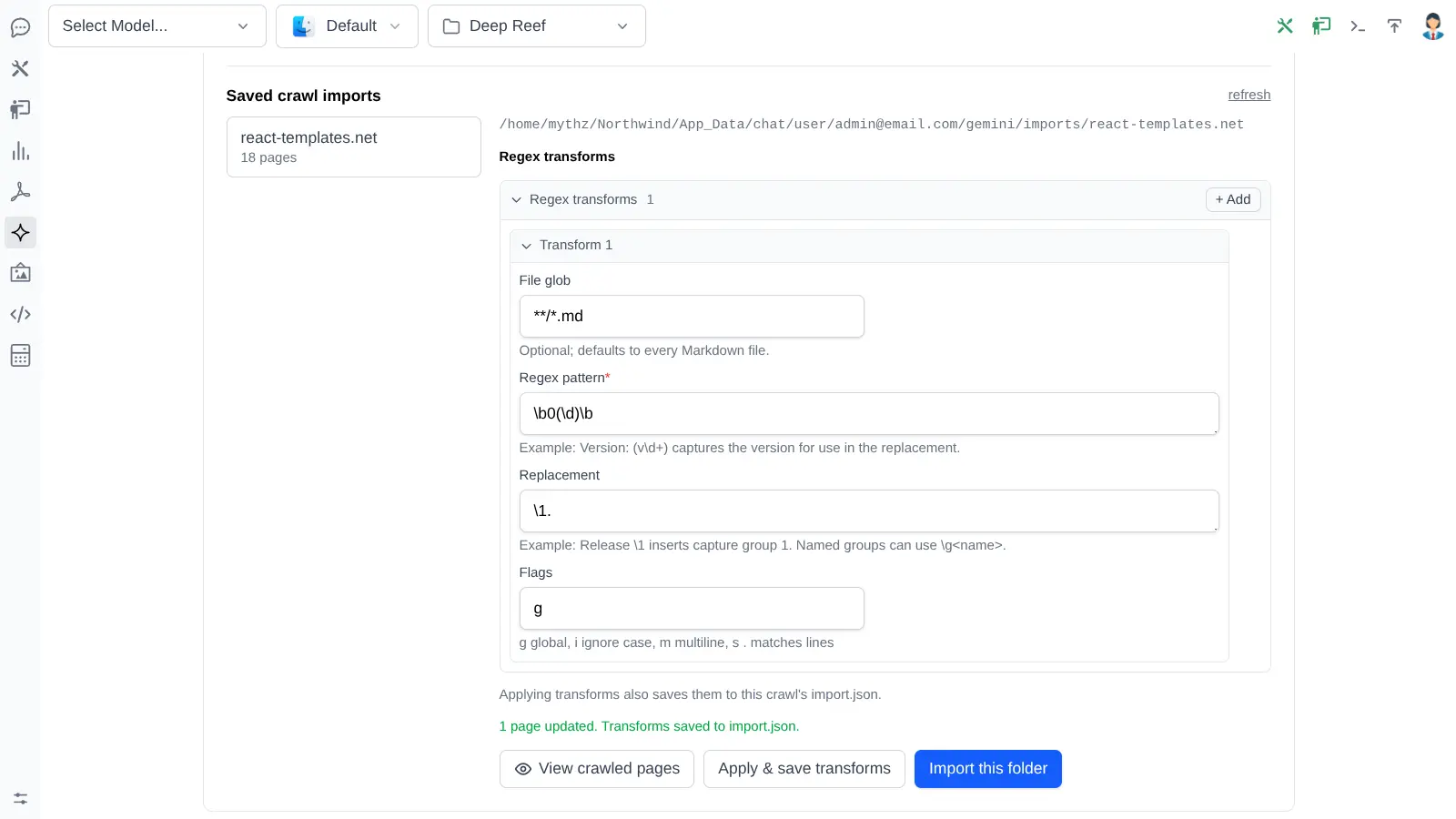

Transform and inspect extracted pages

Regex transforms provide an ordered, repeatable cleanup pass over the crawled Markdown. Each rule defines a file glob, regex pattern, replacement, and flags:

• g - global
• i - ignore case
• m - multiline
• s - . matches line breaks

Replacement capture groups are supported. For example, pattern \b0(\d)\b with replacement \1. converts 01 to 1..

Define transforms1 / 3

Define transformsApply and saveInspect crawled pages

Apply transforms updates the workspace and saves the rules to import.json. View crawled pages opens a large read-only browser with directories on the left and vertically scrollable file content on the right. When the content is ready, Import this folder opens Folder import with the workspace path and metadata pre-populated.

Saved crawl imports are deep-linkable. Reopen one to load its configuration, make more transformations, inspect the result, and hand it back to Folder import whenever the website changes.

Versioned import configuration

A folder or ZIP may include import.json. A root manifest supplies global defaults; a manifest in a nested directory inherits and overwrites settings for the files beneath it. Page frontmatter is more specific, and metadata explicitly entered in the Import UI has the highest precedence.

{
  "version": 1,
  "metadata": {
    "defaults": {
      "product": "ServiceStack",
      "status": "published",
      "tags": ["docs"]
    },
    "rules": [
      {
        "match": "auth/**/*.md",
        "set": { "tags": ["auth"] }
      }
    ]
  },
  "transforms": [
    {
      "match": "**/*.md",
      "pattern": "\\nEdit this page.*$",
      "replacement": "",
      "flags": "gim"
    }
  ]
}

When the UI contains no explicit metadata, Preview import automatically loads the root manifest. Saving a recurring folder import writes its effective metadata back atomically while preserving crawl and transform settings.

Metadata that improves retrieval

Metadata makes a large store navigable and lets Gemini search only the documents relevant to a question.

Versions and tags are lists: entering v2, v3 creates two searchable values rather than one string. Import metadata can define defaults for every document and ordered path rules that skip matches or override individual fields. Scalar fields are overwritten by the most specific matching value; list values such as versions and tags accumulate.

Source URL templates

Source URL templates generate a canonical link for each imported document. The editor validates braces and variable names, and clicking a variable appends it with the appropriate / or . separator.

For docs/guides/auth.md with Category root docs:

https://docs.example.com/{pathNoExt}

resolves to https://docs.example.com/guides/auth.

Explore, filter, and maintain documents

Explorer combines category navigation, full-store search, sorting, facet filters, metadata editing, upload state, and document actions.

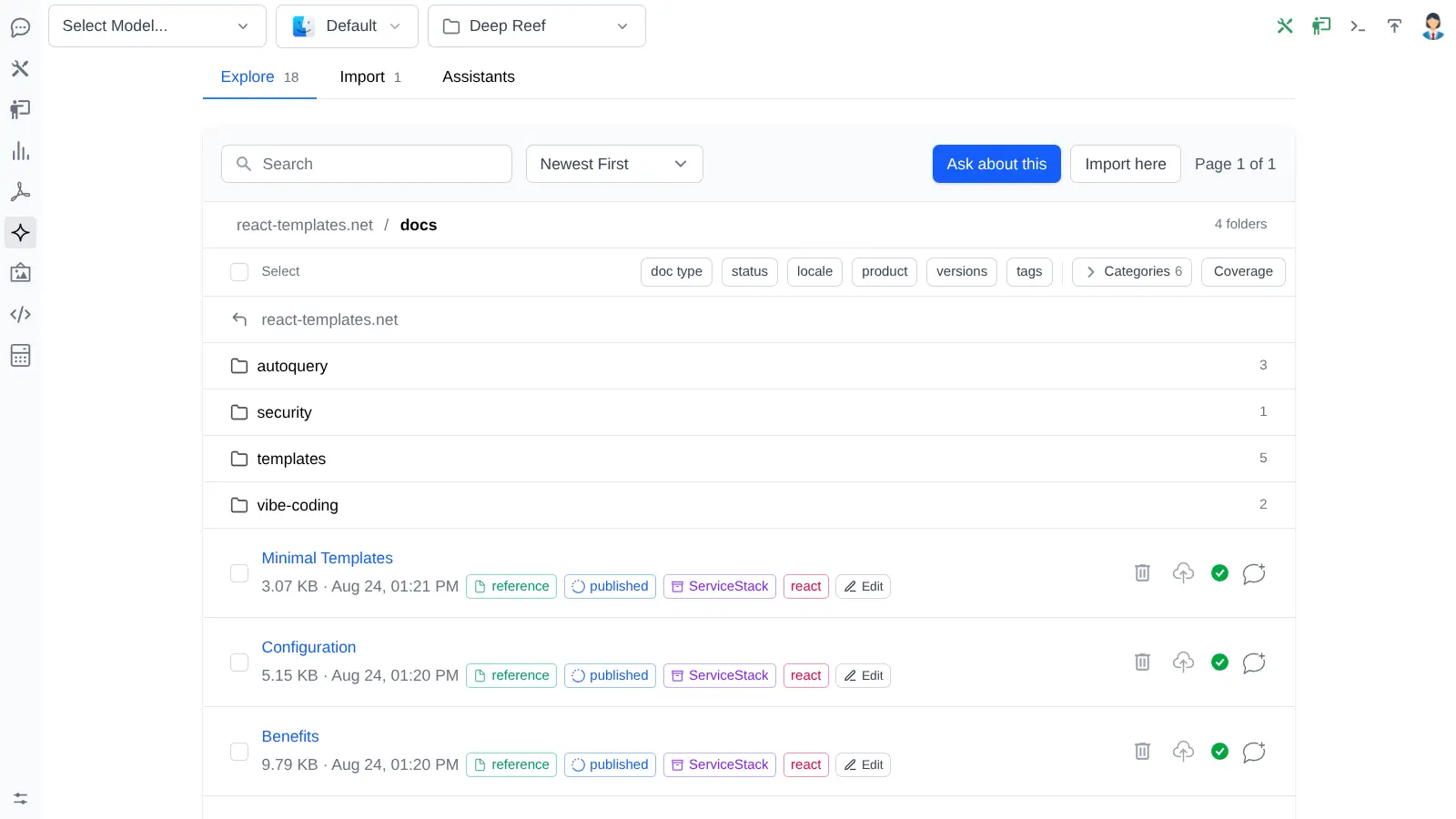

Browse categories1 / 2

Browse categoriesApply metadata filters

Compact dropdowns for doc type, status, locale, product, versions, and tags sit beside Categories and Coverage. Selecting a value converts the dropdown into a visible, removable filter chip; clearing it restores the dropdown. Missing metadata is shown as (no value).

Category and facet filters are deep-linkable. Coverage links operate over the whole File Store, so they clear the current category before showing a store-wide result that would otherwise appear empty.

Each document row can:

• open its category or Source URL;
• download the cached source;
• edit metadata;
• retry a failed or pending Gemini upload;
• start a chat scoped to that document; or
• delete the local and Gemini copies.

Work in progress remains visible: uploads show activity, failures show their provider message, and a document being deleted displays a red struck-through name with a spinner.

Edit metadata in bulk

Select the current page-or every document matching the current filters-to apply a staged bulk edit.

• Scalar fields support Set where empty, Overwrite, and Clear.
• Versions and tags support Add, Remove, Replace, and Clear.

The preview reports how many documents will change. Bulk edits update the local catalogue first, letting you make several corrections before paying for a single re-indexing pass.

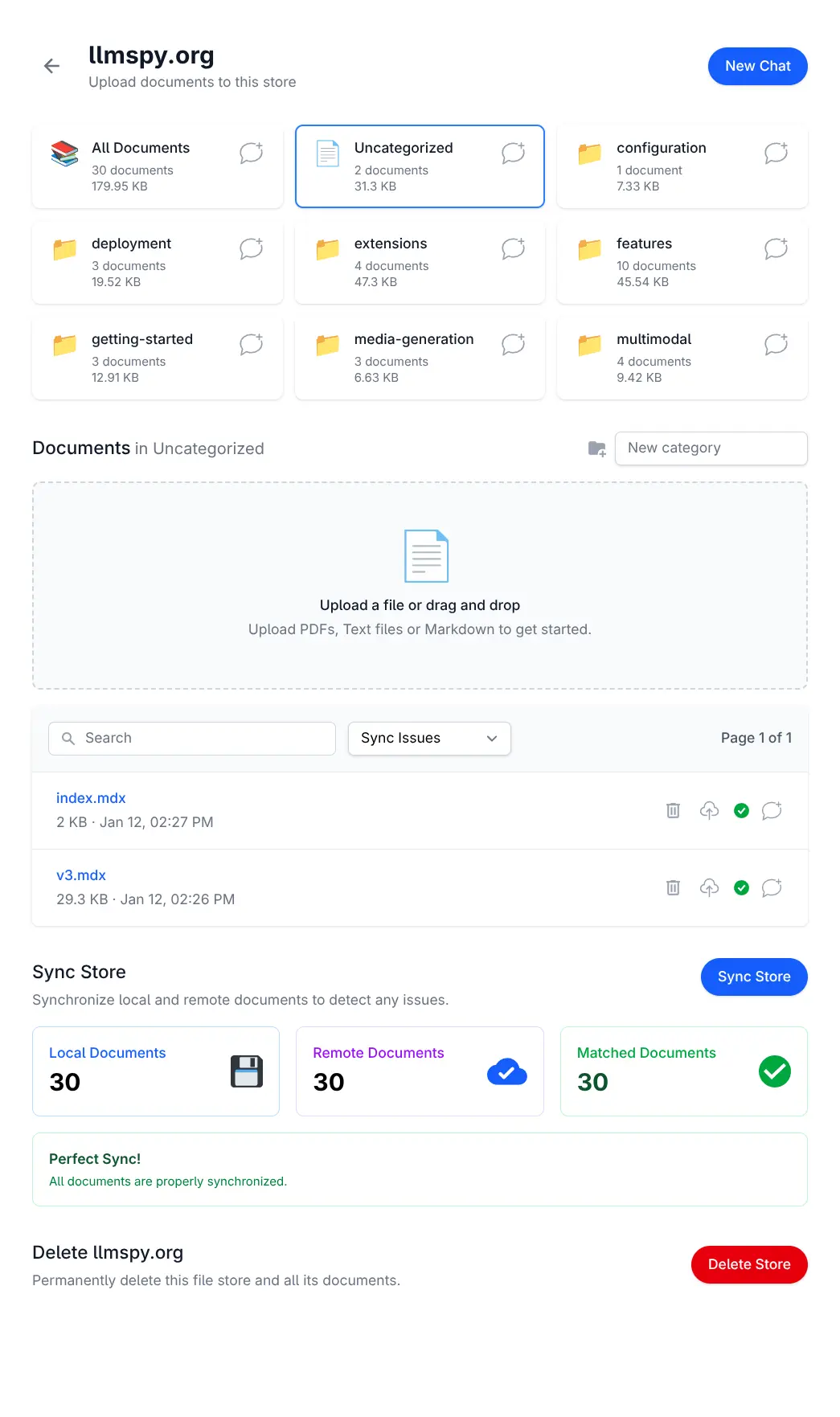

Coverage and synchronization

Coverage & filters answers two separate questions:

1. How consistently is metadata populated?
2. Does the local catalogue agree with Gemini?

The sync report detects documents missing locally or remotely, metadata differences, unmatched fields, and duplicate remote copies. Issue counts link back to an unscoped Explorer result with the active filter visibly displayed.

Local metadata edits appear immediately in Explorer, but Gemini still searches its last indexed metadata until you choose Push N to Gemini. Because Gemini cannot patch metadata in place, those documents are uploaded and embedded again. Use Prune duplicates when sync detects redundant remote documents.

Ask grounded questions

Gemini RAG supports three useful scopes:

• New Chat searches the whole File Store.
• A document's chat icon searches only that document.

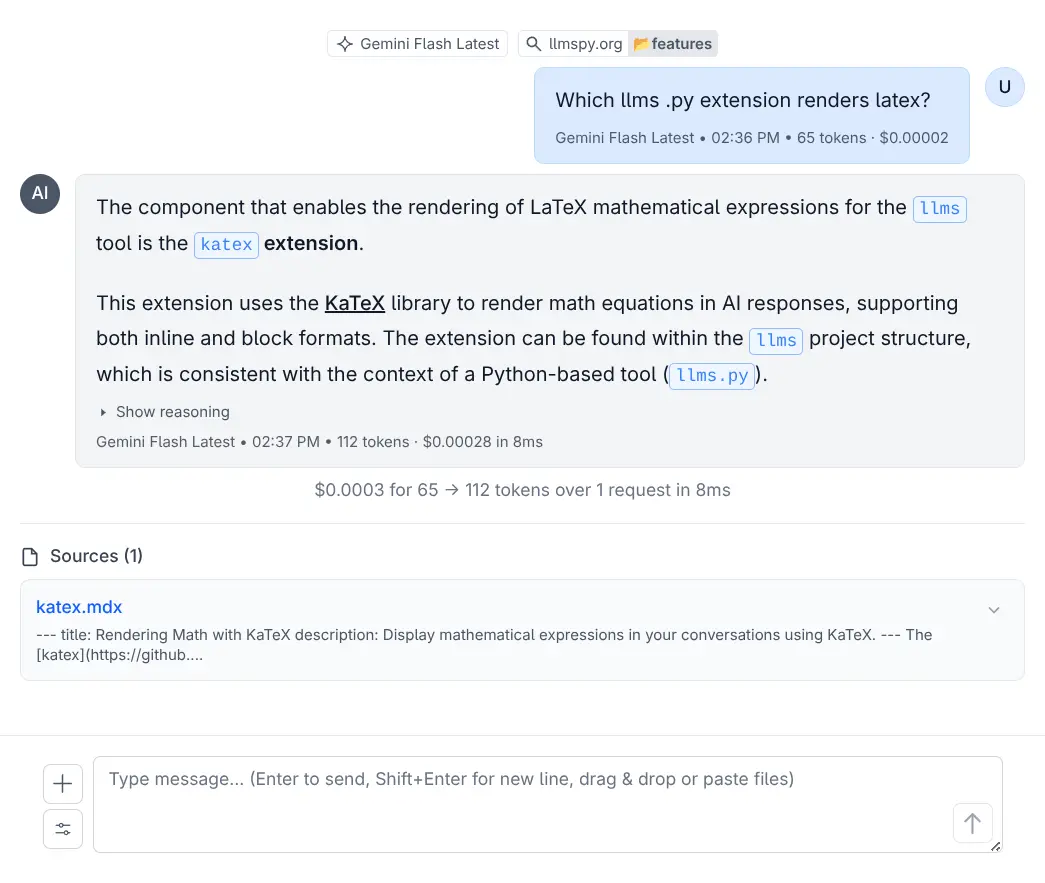

• Ask about this preserves the current category and every active metadata filter.

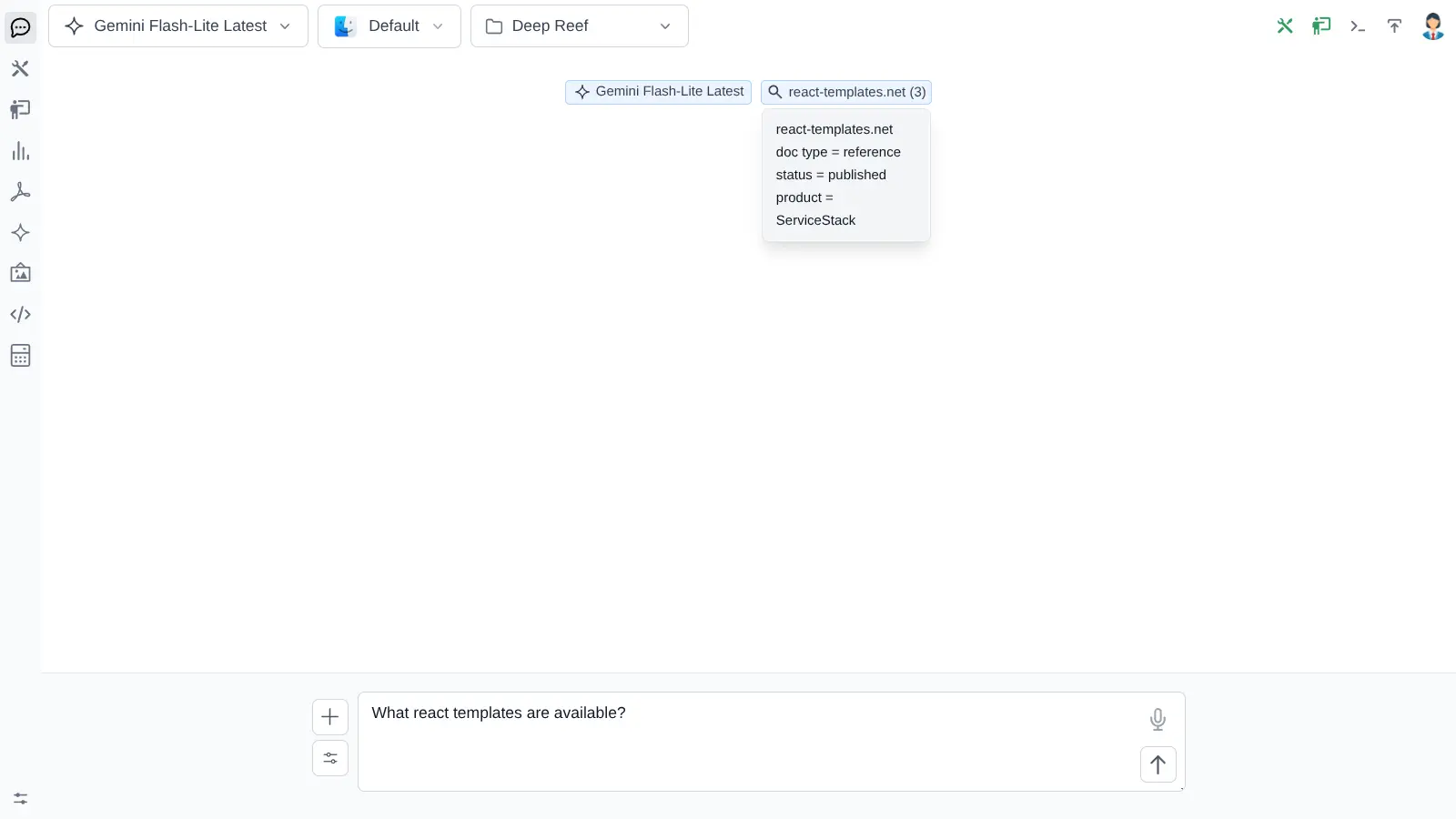

Filtered Explorer scope1 / 2

Filtered Explorer scopePreserved chat filters

The chat header makes the retrieval scope visible. A category is displayed as a path, while other filters are summarized by count:

docs.example.com/auth (2)

Hover over it to see each filter on a separate line. The same filter expression shown in Coverage is passed to Gemini File Search, so Explorer and the grounded query describe the same document set.

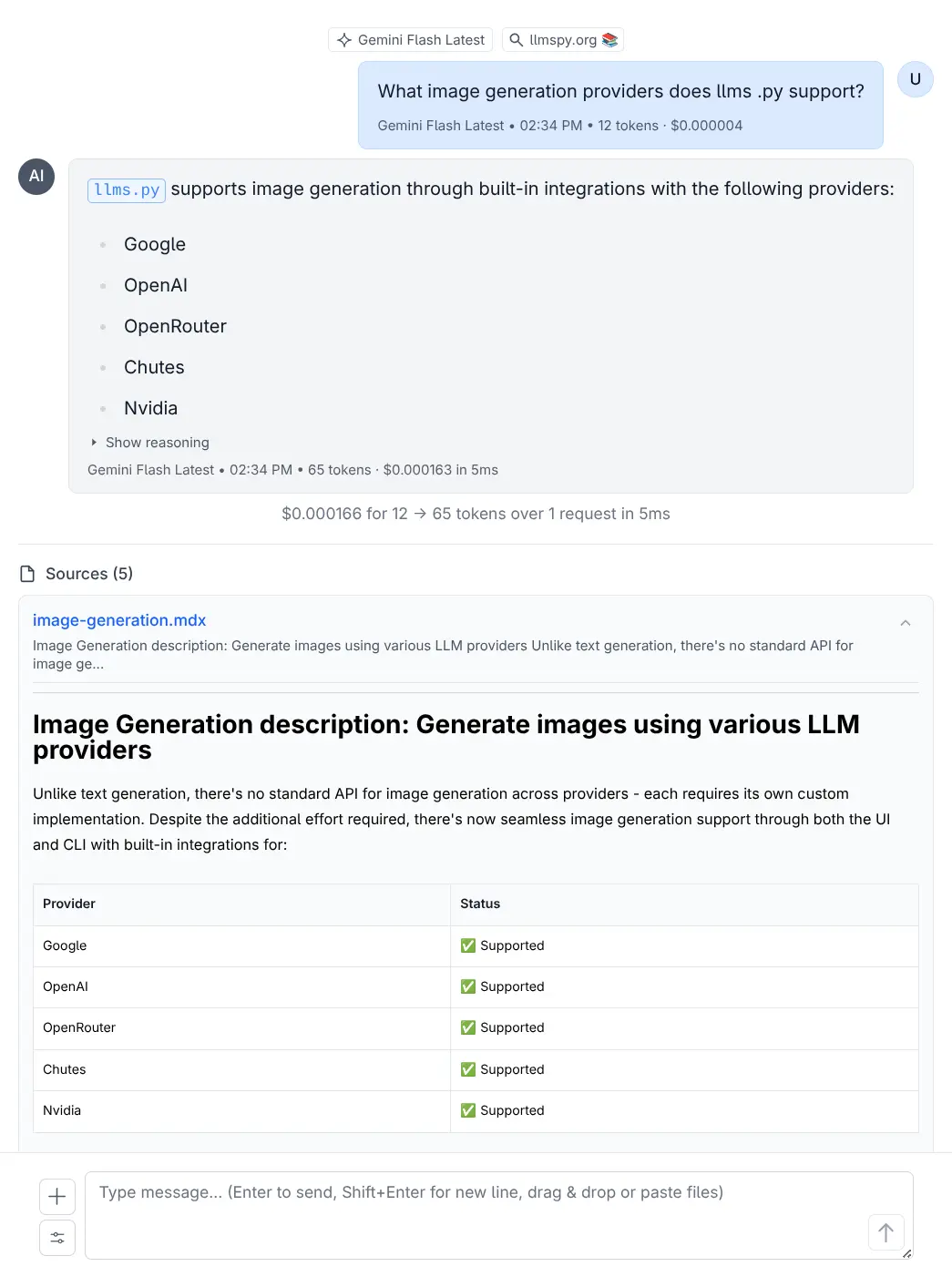

Answers, citations, and source evidence

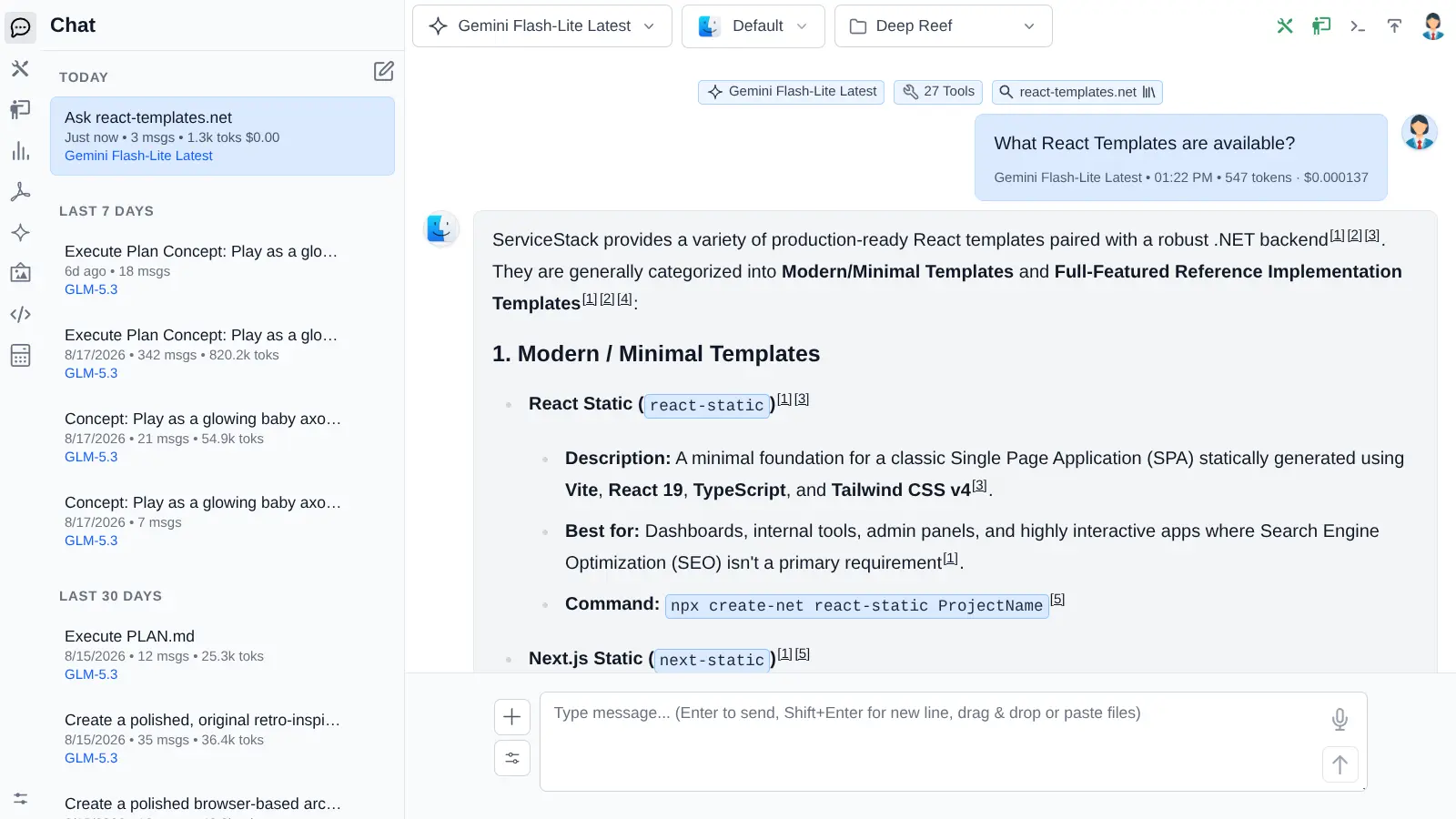

Grounded answer1 / 3

Grounded answerSource evidenceMetadata-scoped RAG

Grounded answers place citation markers beside supported claims. Each assistant response retains its own Sources section as the conversation continues. Expand a source to inspect the retrieved excerpt, or follow its title to the document's Source URL.

Source links resolve in this order:

1. the document's Source URL;
2. the URI returned by Gemini;
3. the cached document download.

Gemini File Search is a built-in retrieval tool. When a File Search request is active, the Gemini provider sends only file_search and temporarily omits other selected function tools, avoiding an unsupported built-in-tool/function-calling combination. Your normal tool selections are not changed.

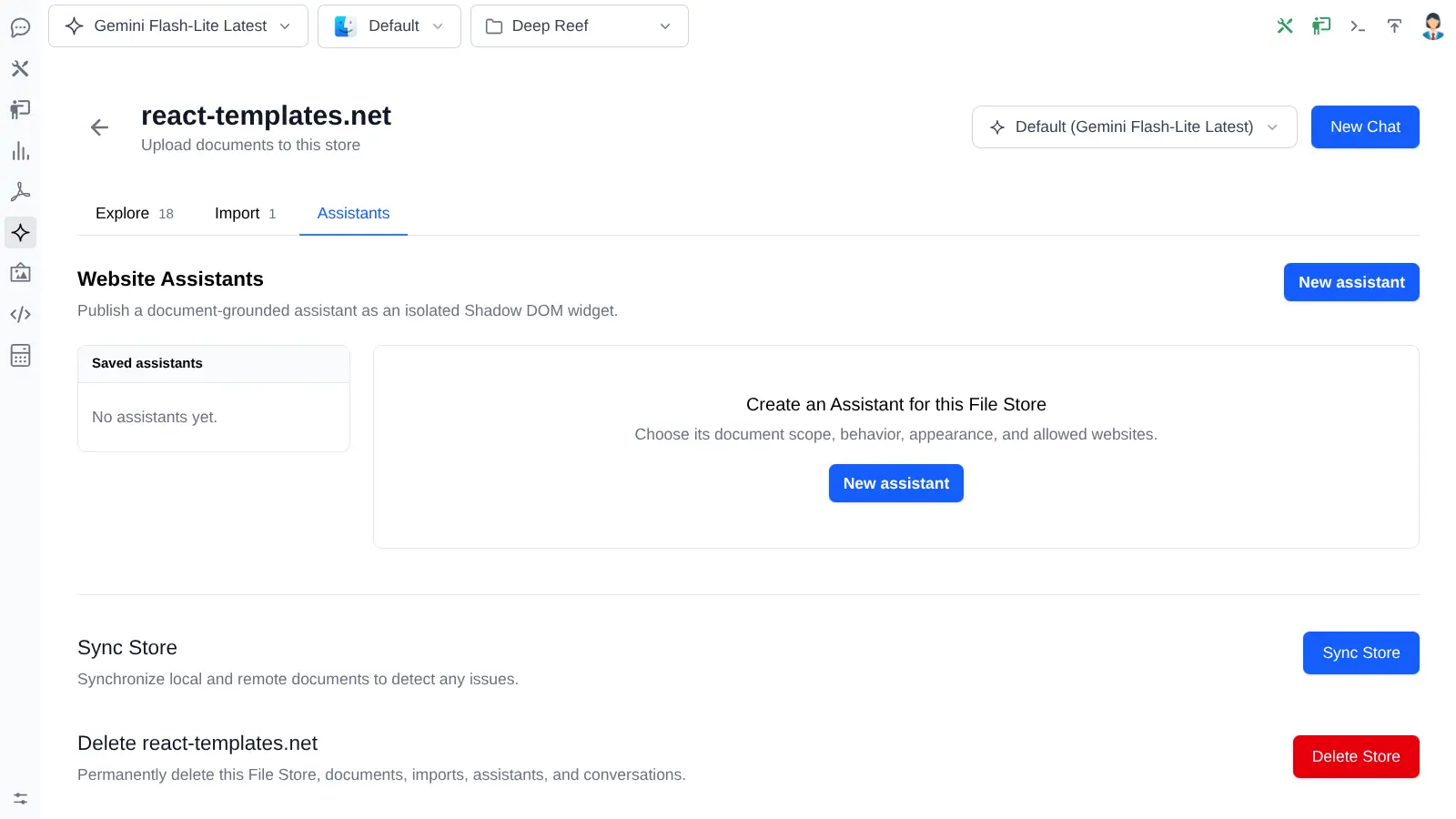

Publish a Website Assistant

The Assistants workspace turns a File Store-or a filtered slice of it-into a branded, document-grounded support experience for any website.

Each named Assistant owns its:

• visitor-facing identity and suggested questions;
• server-enforced document scope;
• behavior template, private system prompt, and optional Gemini model;
• theme, typography, panel, and launcher appearance;
• allowed website origins and request limit;
• deployment ID and publish state; and
• retained customer conversations.

The widget is rendered in a Shadow DOM, isolating it from the host page's CSS. It also traps its keyboard events so global website shortcuts do not fire while a visitor is typing.

1. Identity, behavior, and document scope

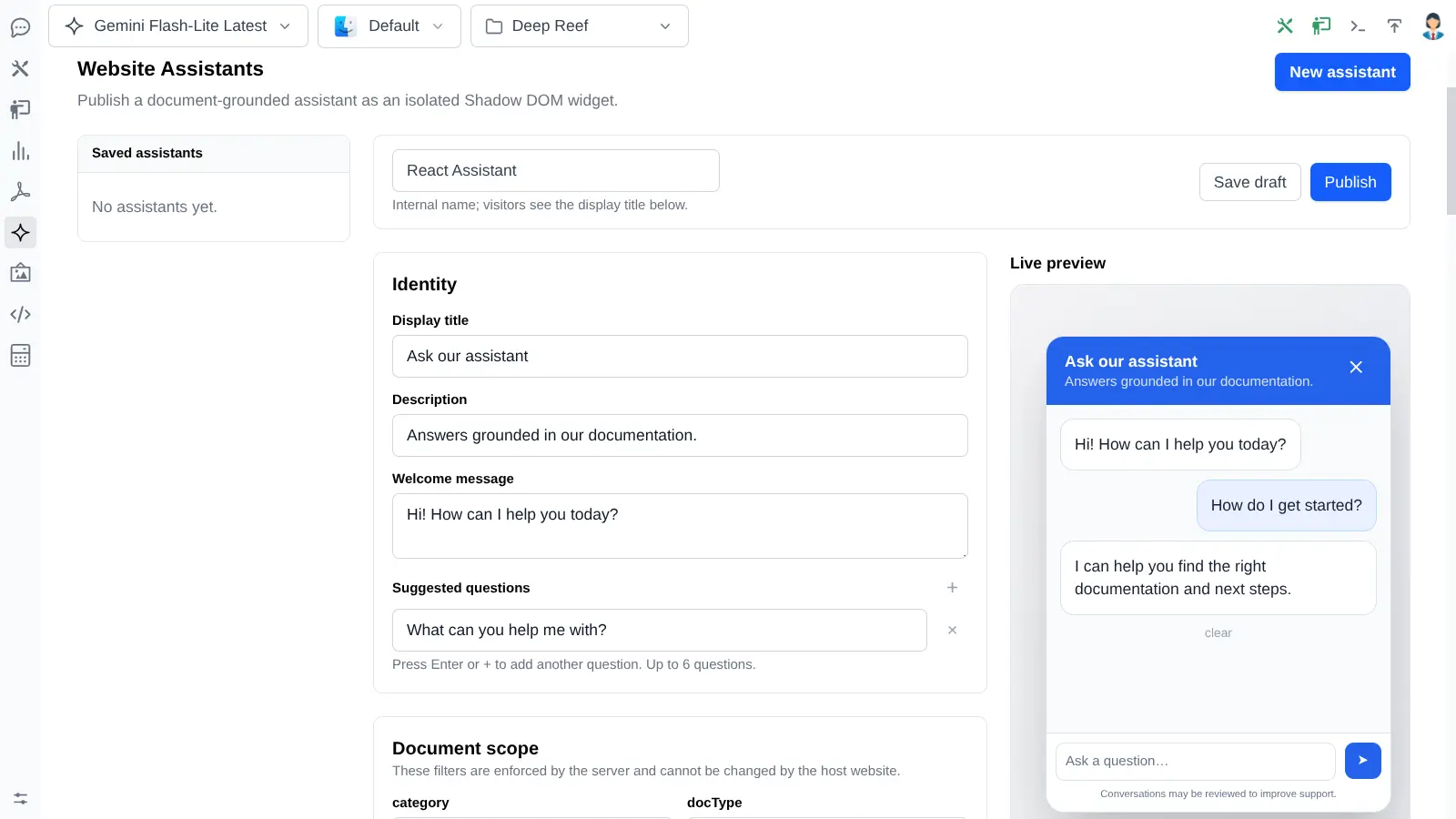

Identity and welcome1 / 3

Identity and welcomeBehavior and promptingDocument scope

Start with the visitor experience:

• Name identifies the Assistant in the dashboard and must be unique within the store.
• Title and Description appear in the widget header.
• Welcome message appears when a new thread opens.
• Suggested questions are editable single-line rows; press Enter or + to add another.

Then define how it should answer:

Template prompts are editable specialist instructions. The server combines them with shared RAG rules for retrieval, grounding, prompt-injection resistance, conflicting documents, conversation context, fallback behavior, and response formatting.

Choose Concise, Balanced, or Detailed, require grounded answers, enable citations, and customize the fallback and conversation-review notice. A custom Gemini model can be selected per Assistant; leaving it unset uses the server default.

Assistants open only when initiated by default. They can instead open after page load or when the visitor reaches the bottom of the page. Open with Ctrl/⌘+K is enabled for new Assistants and opens and focuses the widget independently of the automatic trigger.

Finally, restrict retrieval by category, doc type, status, locale, product, version, or tag. These filters and the private system prompt are applied by the server: they are not embedded in the public JavaScript and cannot be changed by the host website.

2. Design the widget

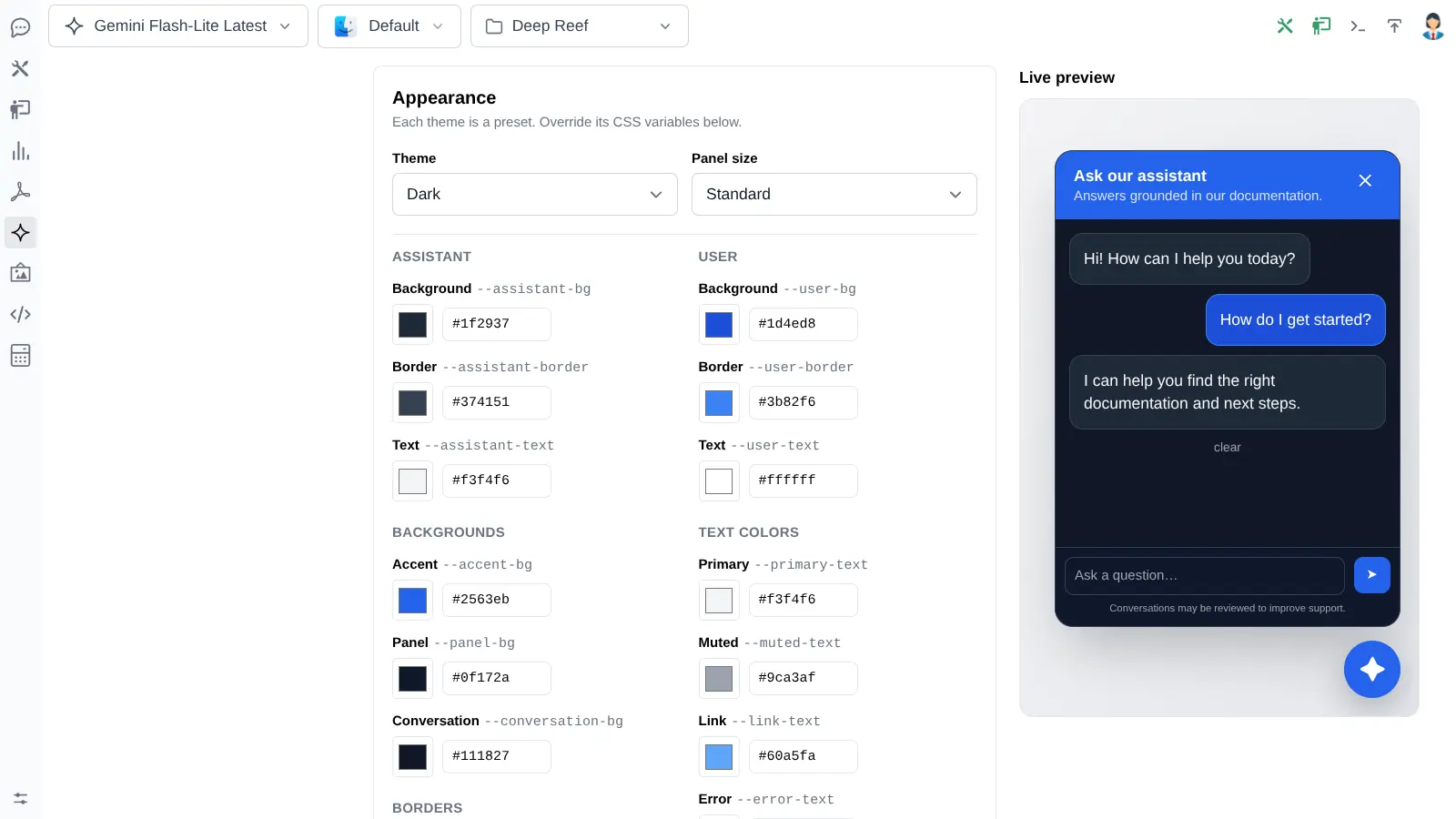

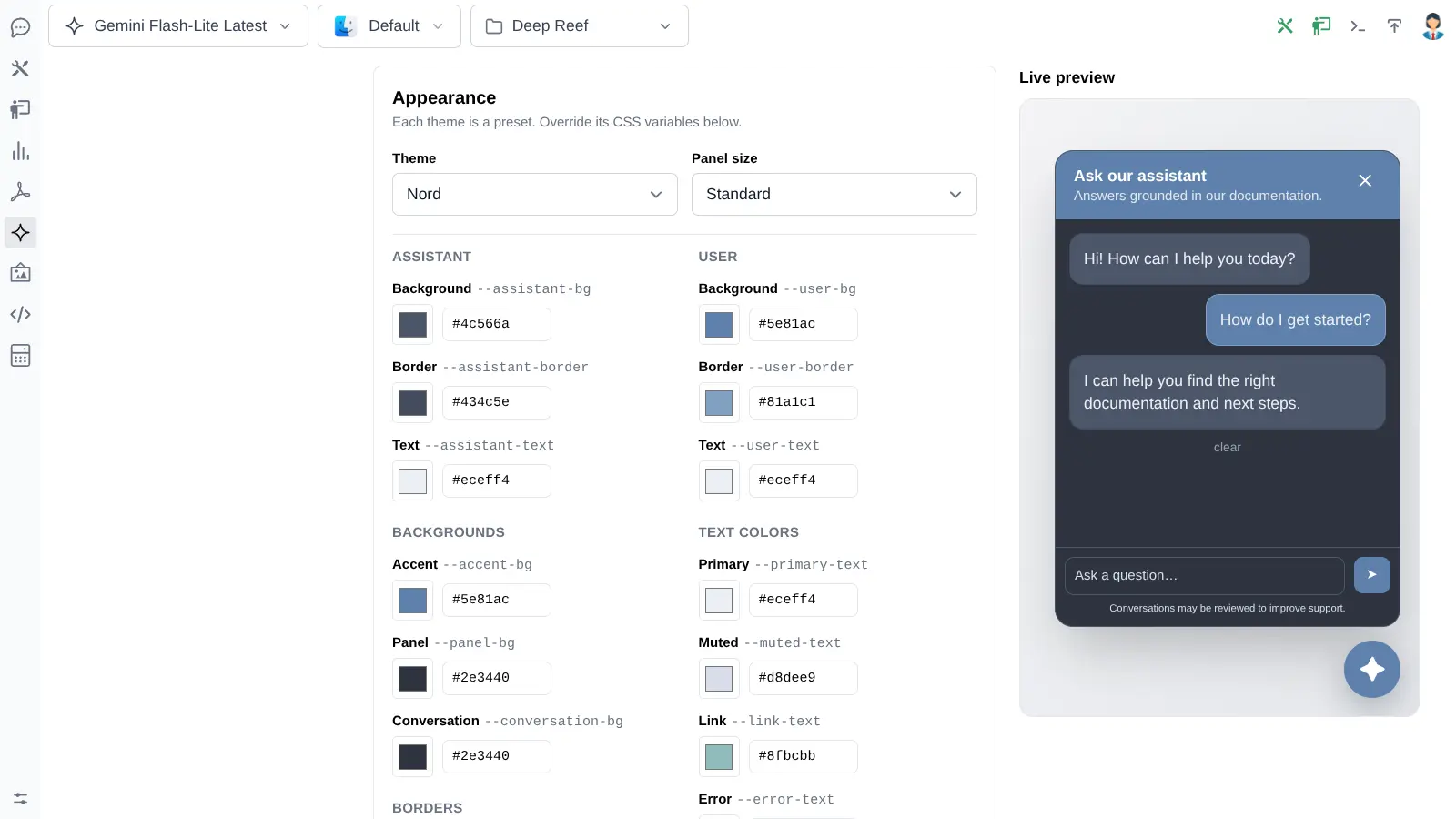

Choose Auto, Light, Dark, Nord, Matrix, or Soft Pink. Auto follows the visitor's prefers-color-scheme and uses your independently saved Light or Dark customizations.

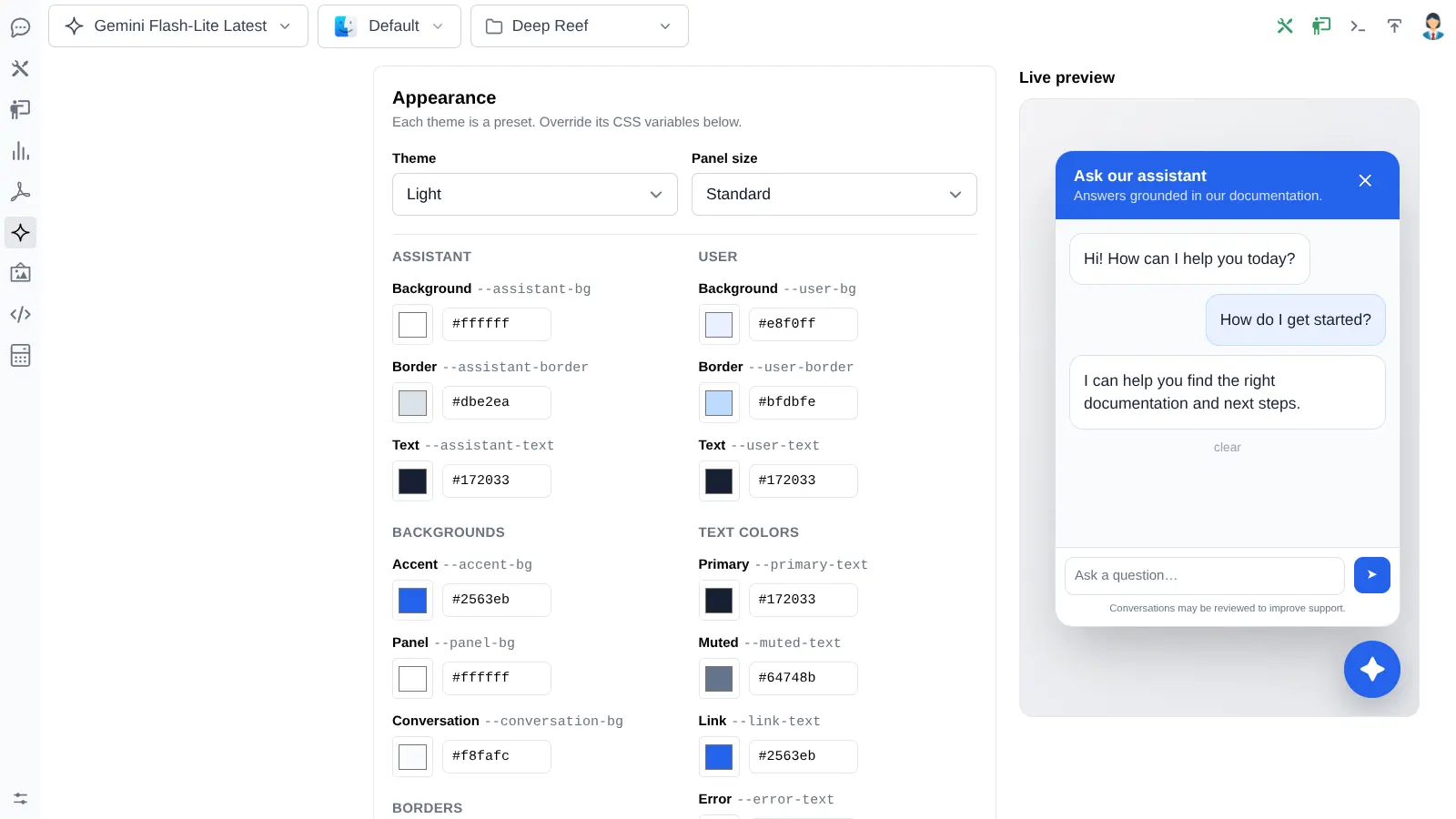

Light1 / 5

LightDarkNordMatrixSoft Pink

Every theme is a preset, not a locked skin. Override and reset individual values for:

• assistant and user bubble backgrounds, borders, and text;
• accent, panel, and conversation backgrounds;
• panel and focus borders;
• primary, muted, link, error, and warning text; and
• a per-theme CSS font-family stack.

Only explicit overrides are saved. Reset theme appearance restores the complete preset, while the reset action beside a value restores only that variable. The live preview uses the same SVG icons, layout, and CSS variables as the real widget.

3. Customize the launcher and hosting rules

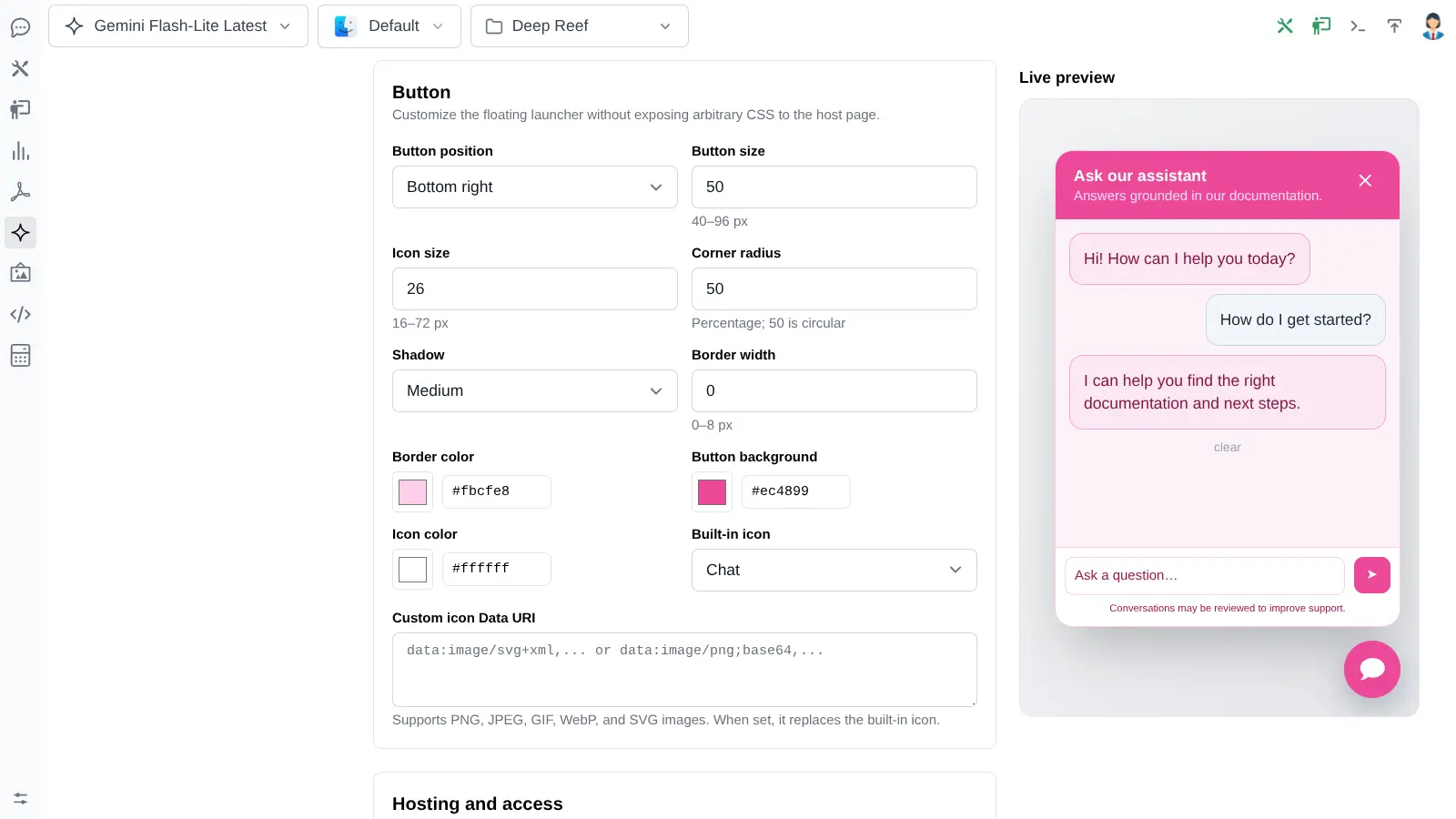

Launcher button1 / 3

Launcher buttonHosting and accessPublish and embed

The launcher can appear bottom-left or bottom-right. Configure its size, icon size, corner radius, shadow, border width, border color, background, and icon color. Choose Sparkles, Chat, or Help, or provide a PNG, JPEG, GIF, WebP, or SVG Data URI for a custom icon.

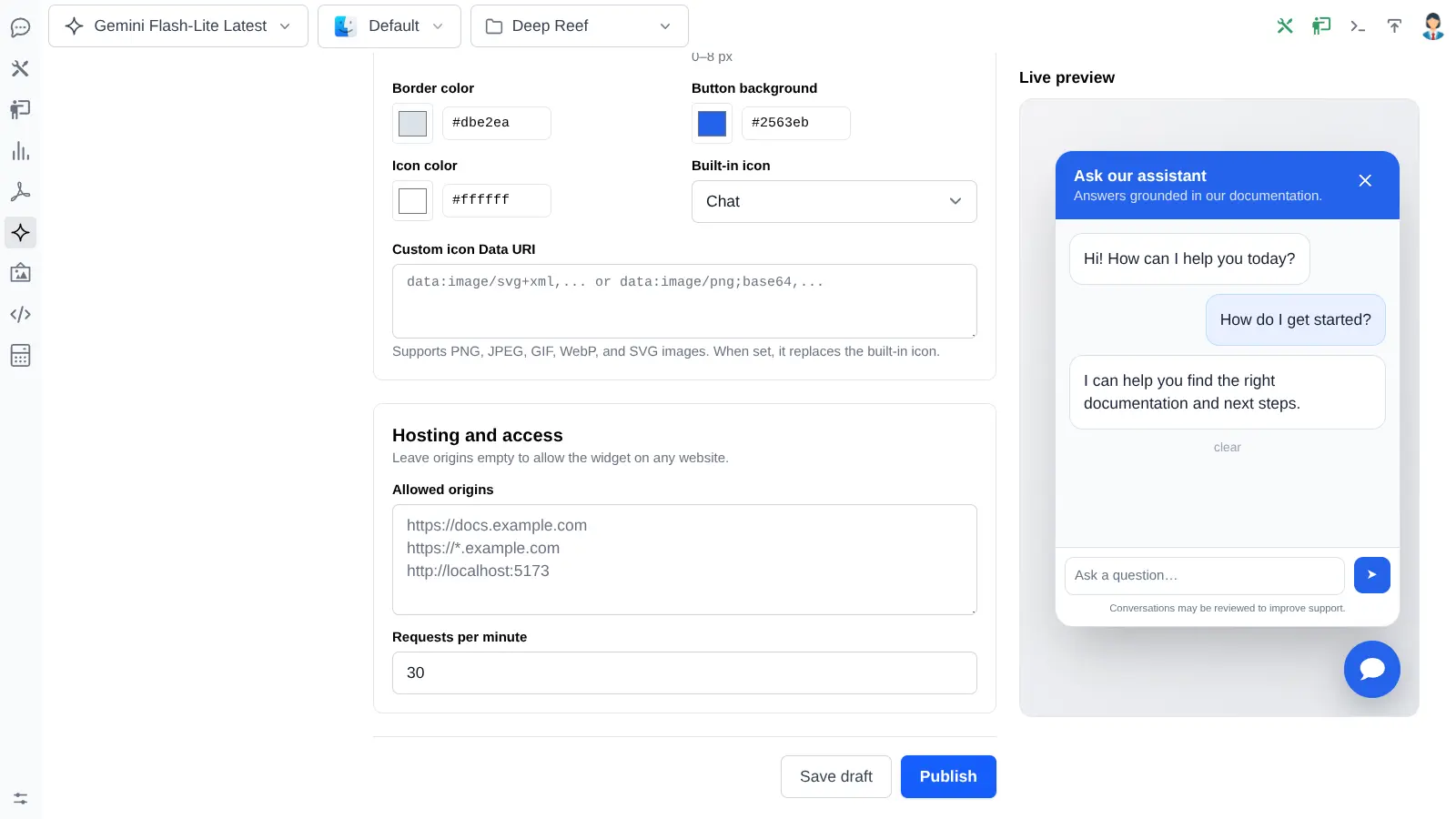

Leave Allowed origins empty to allow the Assistant on any website, or enter one exact HTTP(S) origin per line:

https://docs.example.com
https://*.example.com
http://localhost:5173

An exact origin includes its scheme and port. A wildcard matches subdomains but not the apex, so add https://example.com separately when both are needed. The requests-per-minute setting applies a rolling per-client limit to public chat requests.

4. Save, publish, and embed

Use Save draft while configuring. Publish makes the deployment available and produces a stable embed snippet:

<script
  src="https://chat.example.com/ext/gemini/public/assistants/widget.js?g=abc123"
  async>
</script>

The deployment identifier is on the g query string. The public endpoint merges the saved configuration with the static widget and Markdown renderer, then returns a self-contained classic script.

The host page may override presentation choices without changing retrieval behavior:

<script
  src="https://chat.example.com/ext/gemini/public/assistants/widget.js?g=abc123"
  data-theme="dark"
  data-position="bottom-left"
  data-accent="#7c3aed"
  data-icon="chat"
  async>
</script>

The host cannot override document scope, prompts, model, origin rules, or rate limits. Invalid or unavailable deployments return JavaScript that writes a useful error to the browser console rather than a JSON response that fails silently.

The widget supports:

• streaming Markdown responses with plain-text fallback;
• citation links and source titles;
• suggested questions and a configurable welcome message;
• smooth fly-in/out animation from the launcher;
• maximized full-screen reading;
• a scrollable conversation thread;
• clearing the current thread without confirmation; and
• browser-local session continuity across page loads.

Review customer conversations

Authoritative conversations and messages are retained server-side so support teams can understand what visitors ask, identify missing coverage, and improve documentation.

Open View Conversations on a saved Assistant. The sidebar counts user messages, and each conversation shows its exact originating page. Expand the user-message navigator to jump directly to the corresponding Assistant response. Responses render as Markdown and retain their source citations.

The conversation count appears in View/Hide Conversations, making new activity visible while you work. The review view and selected conversation are deep-linkable.

Assistant lifecycle

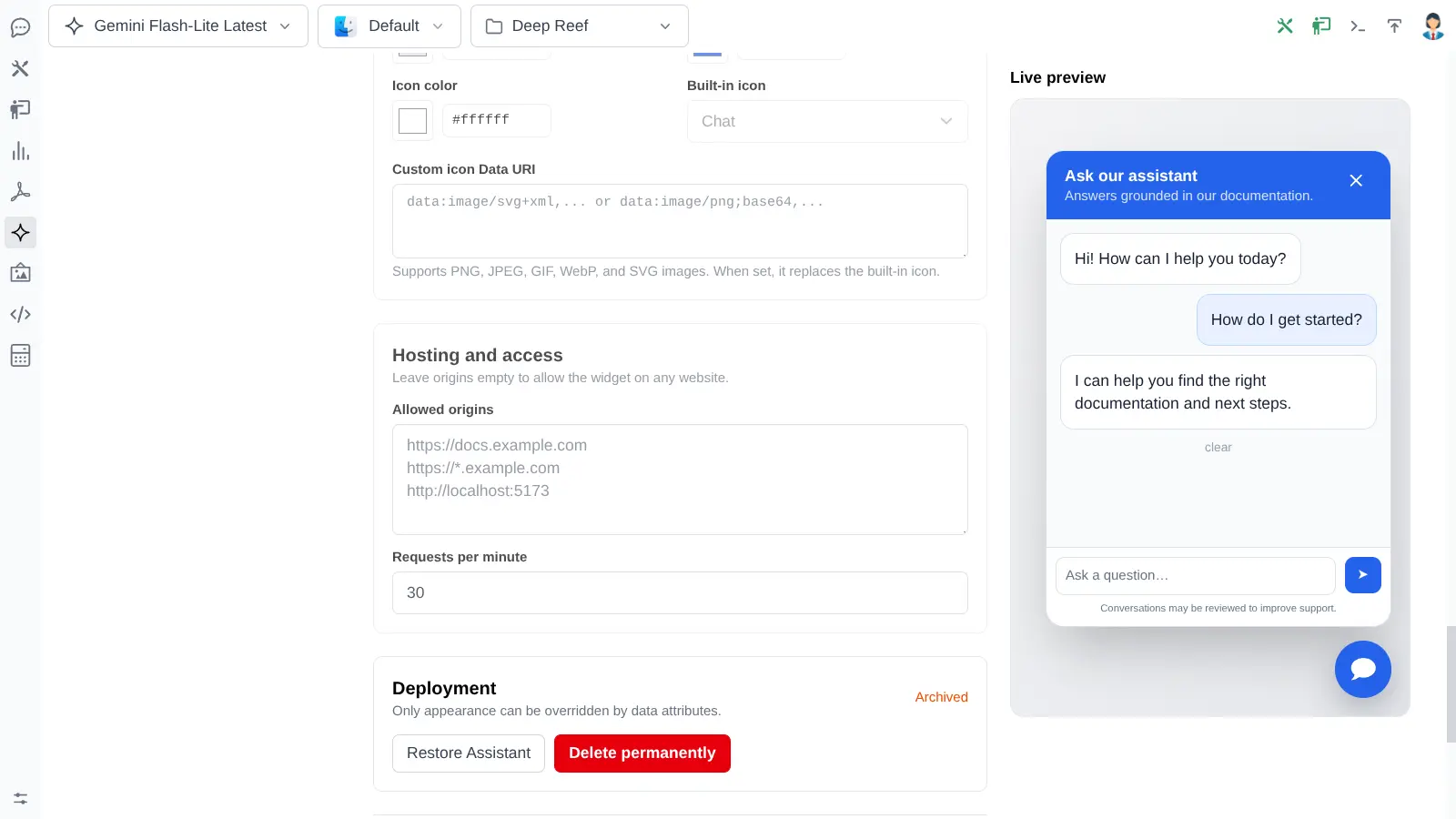

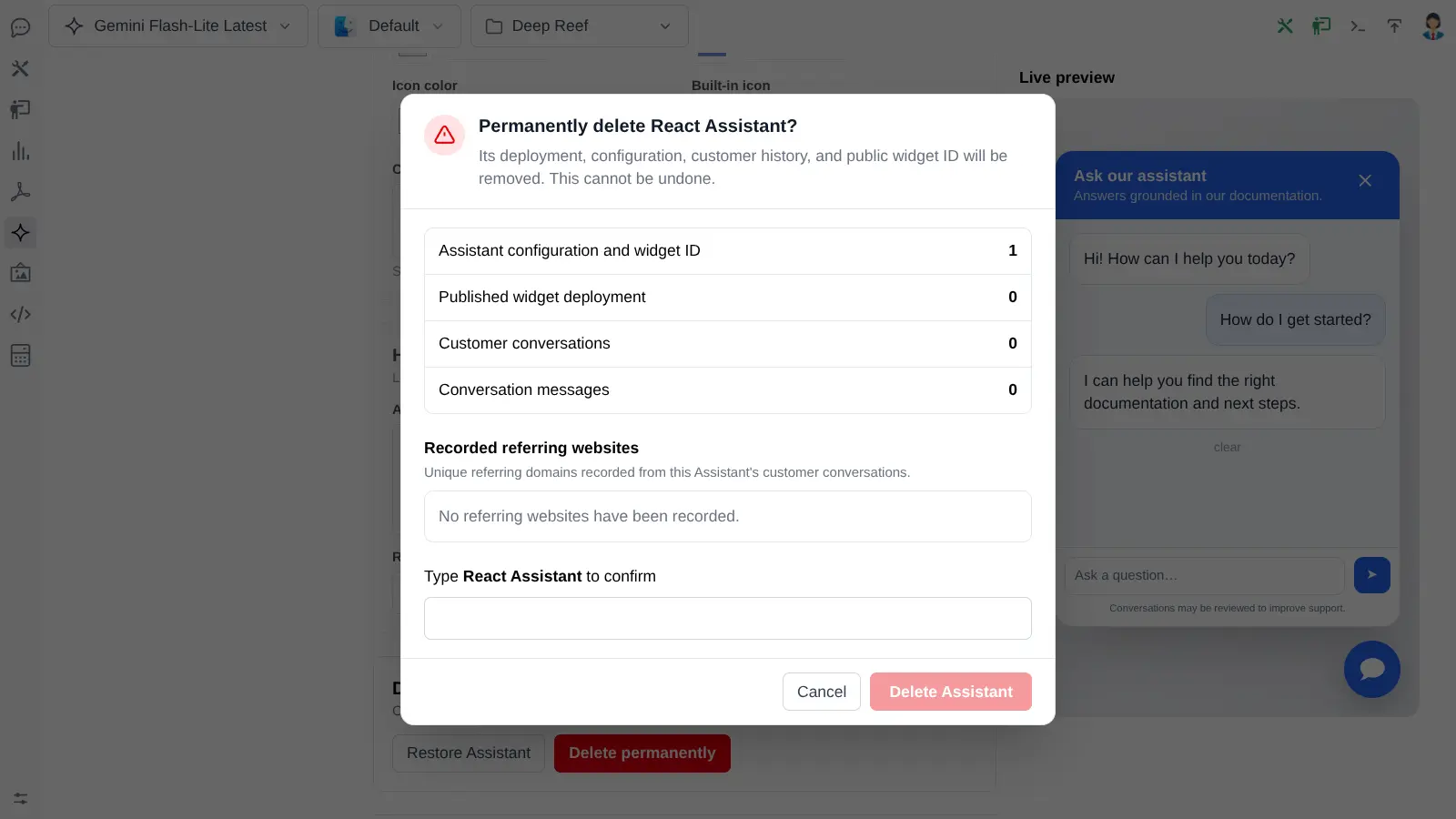

Archive and restore1 / 3

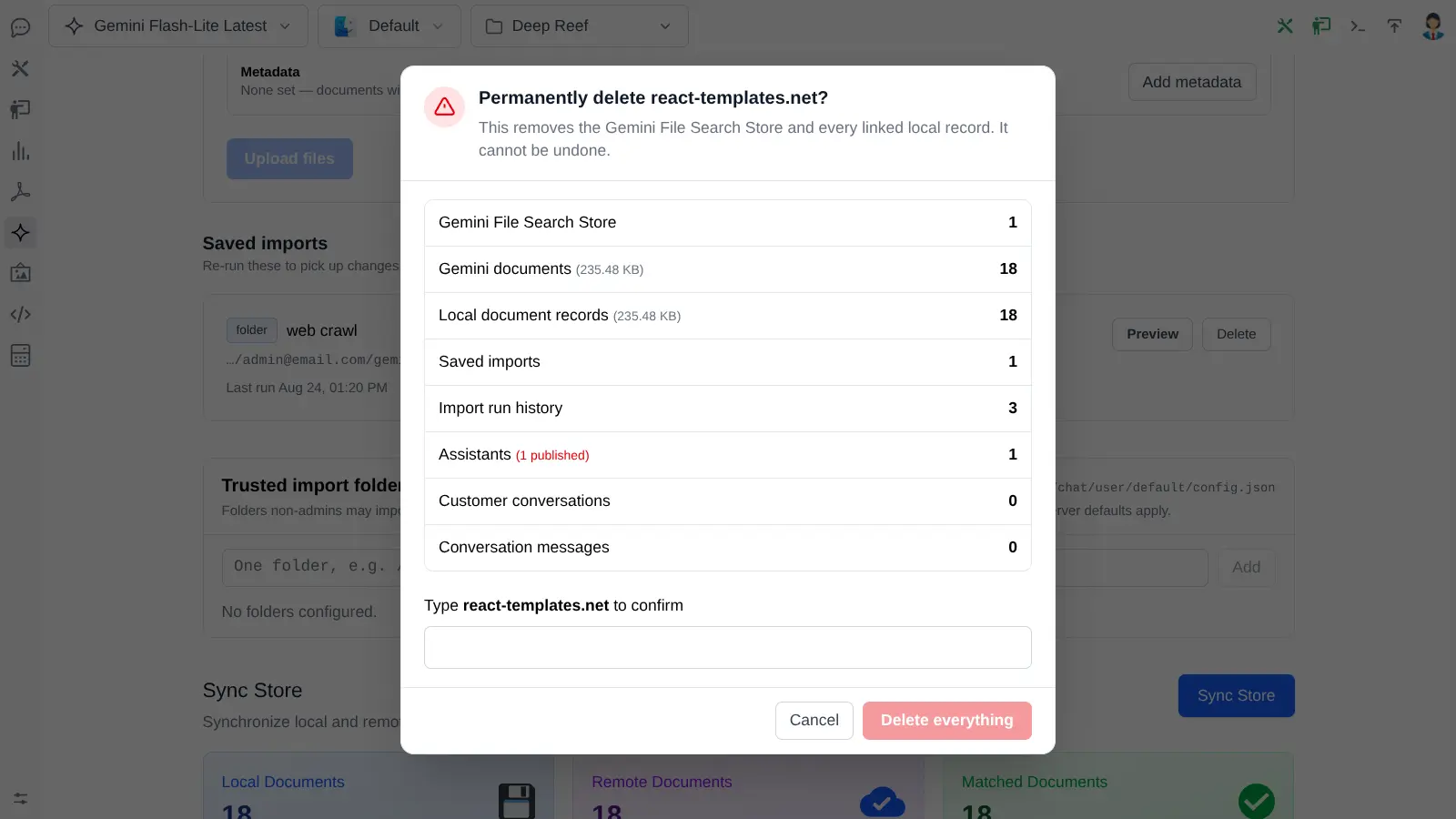

Archive and restoreDelete AssistantDelete File Store

• Unpublish takes the public deployment offline while leaving the Assistant editable.
• Regenerate ID invalidates every old embed immediately and creates a replacement ID.
• Archive Assistant takes it offline and makes it read-only while retaining configuration and conversations. Restore Assistant returns it as an unpublished draft.
• Delete permanently removes the Assistant, conversations, messages, and citations. The confirmation shows affected referrer domains and when each was last used, then requires the Assistant name.

Deleting a File Store is broader: it removes the remote Gemini store, local and remote documents, saved imports and runs, Assistants, conversations, and messages. Its dedicated impact summary and typed store-name confirmation are intentionally difficult to bypass.

Operational guidance

Choose store boundaries deliberately

Use separate File Stores when knowledge must have a different owner, access policy, lifecycle, or deletion boundary. Use categories and metadata inside a store when the same team should manage the content but queries need narrower scopes.

Prefer curated sources over larger sources

Retrieval quality improves when navigation fragments, stale versions, duplicate pages, drafts, and boilerplate are excluded. Preview folder diffs, inspect crawl Markdown, set status and version metadata, and test filtered chats before exposing an Assistant publicly.

Make citations durable

Use canonical Source URL templates instead of local cache links. Preserve stable page paths across re-imports, and push metadata changes after correcting URLs so Gemini retrieves the updated values.

Recover from interrupted uploads

Pending documents remain queued in the local catalogue and resume after application startup. To inspect them, open Explorer at the destination category and sort by Uploading. Sort by Failed to review provider errors and retry individual documents.

Troubleshooting

The Gemini icon is missing

Confirm GOOGLE_API_KEY or GEMINI_API_KEY is present in the server environment, restart llms.py, and verify the Gemini extension and its Python dependencies are installed.

No Gemini model is available

Configure a Google provider chat model. The Gemini picker excludes other providers and incompatible model types.

A folder cannot be imported

Check the resolved folder shown by the picker. Non-admin users must remain beneath a trusted import root. The permission is checked again whenever a saved import runs.

Files were skipped

Open Skipped & failed in the preview. Common causes include unsupported binary formats during a folder scan, very short prose, include/exclude globs, Category root, or an explicit skip rule.

An upload failed or appears stuck

Sort Explorer by Failed or Uploading, hover the status for the provider message, and retry the document. Pending work resumes automatically after a server restart.

A metadata filter returns no results

Clear other chips and verify exact values in Coverage. Versions and tags are lists, and every active facet is combined with the category when creating the Gemini metadata filter.

Citations open cached files

Add or correct Source URL metadata, then push pending metadata changes to Gemini. Existing source cards can resolve locally, but future filtered retrieval uses the newly indexed metadata.

Explorer and Gemini disagree

Run Sync Store. Use its issue links to open the relevant store-wide filter, push intentional metadata changes, retry missing uploads, and prune duplicates when reported.

Storage and access

When authentication is enabled, write operations require a signed-in user. A deployment can also require a role such as Admin with GEMINI_WRITE_ROLE or gemini_write_role.

In a default single-user installation, the local Gemini database is stored at:

~/.llms/user/default/gemini/gemini.sqlite

Cached document bodies use SHA-256 content-addressed paths beneath ~/.llms/cache, with a JSON sidecar that retains the original filename, MIME type, size, date, and cache URL:

~/.llms/cache/[hash_prefix]/[hash].[ext]
~/.llms/cache/[hash_prefix]/[hash].info.json

User-specific crawl workspaces live beneath users/<user>/gemini/imports/. For provider-level API constraints, consult Google's File Search documentation.
