MCP Support

Install

Add the fast_mcp extension to enable MCP support using the FastMCP Python Framework:

Features

• Standardized Tool Access: Connect to any MCP-compliant server (Node.js, Python, etc.) seamlessly.
• Dynamic Discovery: Automatically discovers and registers all tools exposed by the configured servers.
• Parallel Discovery: All configured MCP servers are discovered concurrently for fast startup times.
• Deterministic Registration: Tools are registered in configuration order; if multiple servers provide tools with the same name, the later server in the config overrides earlier ones.

Configuration

The extension manages MCP servers via a mcp.json configuration file in the following locations:

1. User Config: ~/.llms/user/default/fast_mcp/mcp.json
2. Default Config: The ui/mcp.json file bundled with the extension.

Server Configuration Options

Each server in mcpServers supports the mcp_config fields:

Environment Variable Substitution

To allow for flexible and shared configurations, you can reference environment variables using the $ prefix in both args and env values, e.g:

• $PWD - Current working directory
• $GEMINI_API_KEY - Any environment variable

Selective Registration: MCP servers are only registered if all referenced environment variables are available. If any variable is missing, that server is skipped during discovery. This allows you to maintain a single shared config with optional servers.

Example mcp.json

{
  "mcpServers": {
    "filesystem": {
      "description": "Anthropic's MCP Server for secure filesystem operations",
      "command": "npx",
      "args": [
        "-y",
        "@modelcontextprotocol/server-filesystem",
        "$PWD"
      ]
    },
    "git": {
      "description": "Provides tools to read, search, and manipulate Git repositories",
      "command": "uvx",
      "args": [
        "mcp-server-git",
        "--repository",
        "$PWD"
      ]
    },
    "gemini-gen": {
      "description": "Gemini Image and Audio TTS generation",
      "command": "uvx",
      "args": ["gemini-gen-mcp"],
      "env": {
        "GEMINI_API_KEY": "$GEMINI_API_KEY"
      }
    }
  }
}

Tools UI

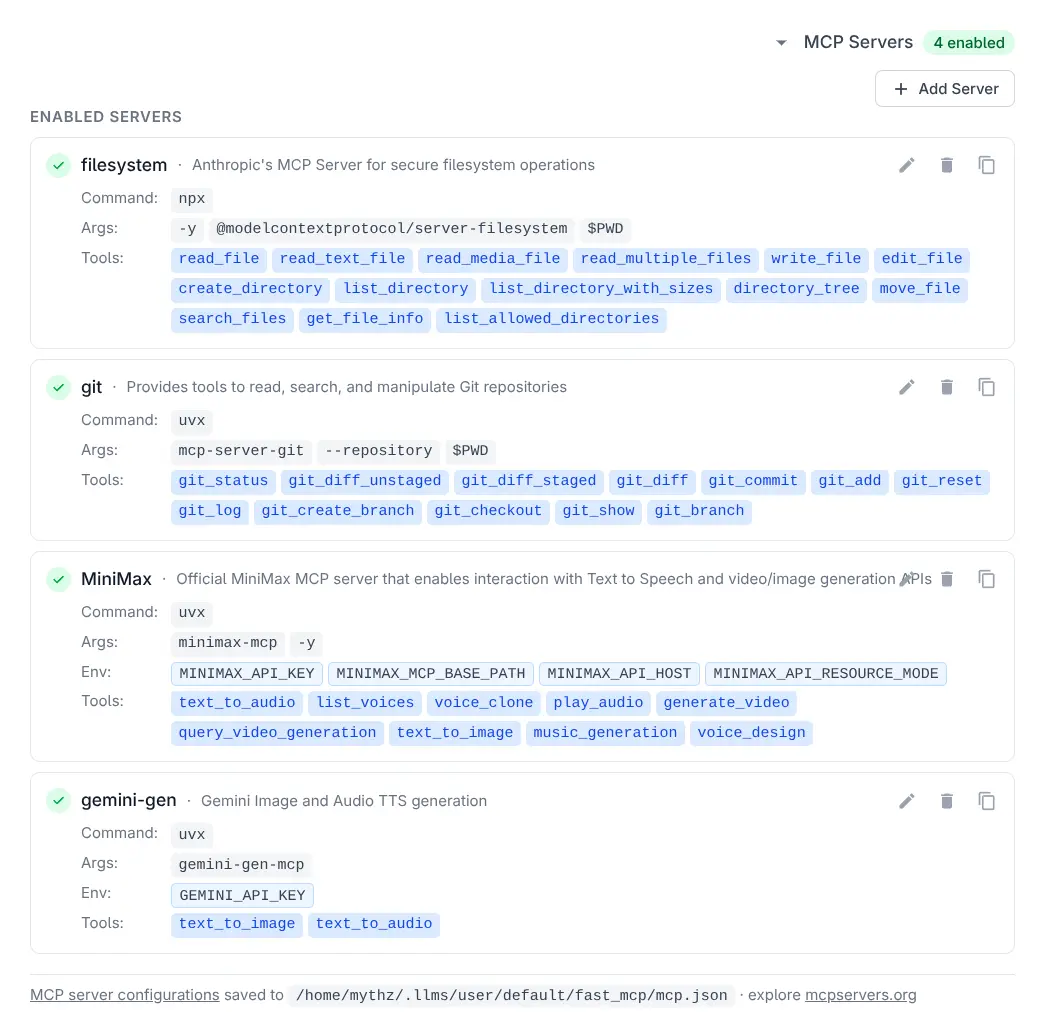

Information about all discovered MCP servers and their registered tools is available in the Tools page under the MCP Servers section. By default only Anthropic's Filesystem MCP Server is configured.

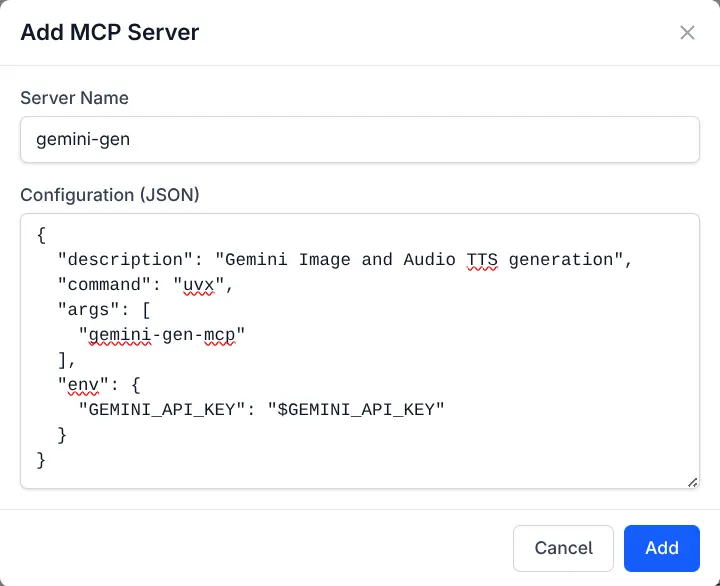

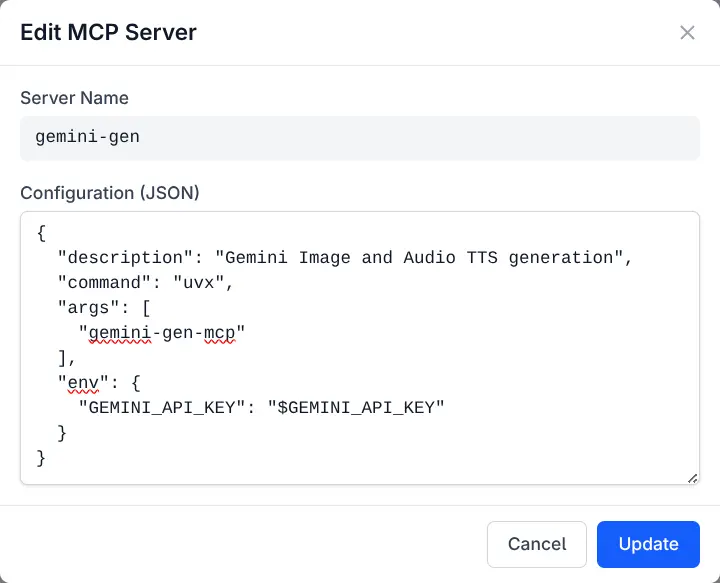

You can either edit the mcp.json file directly to add your own servers or use the UI to Add, Edit, or Delete servers or use the Copy button to copy an individual server's configuration.

After adding servers and restarting the application, the Tools page will display all discovered servers and their registered tools.

Executing Tools

Fundamentally MCP Servers are a standardized way to expose external tools to LLMs. Once MCP servers are configured and their tools discovered, LLMs can invoke them during chat sessions like any other tool.

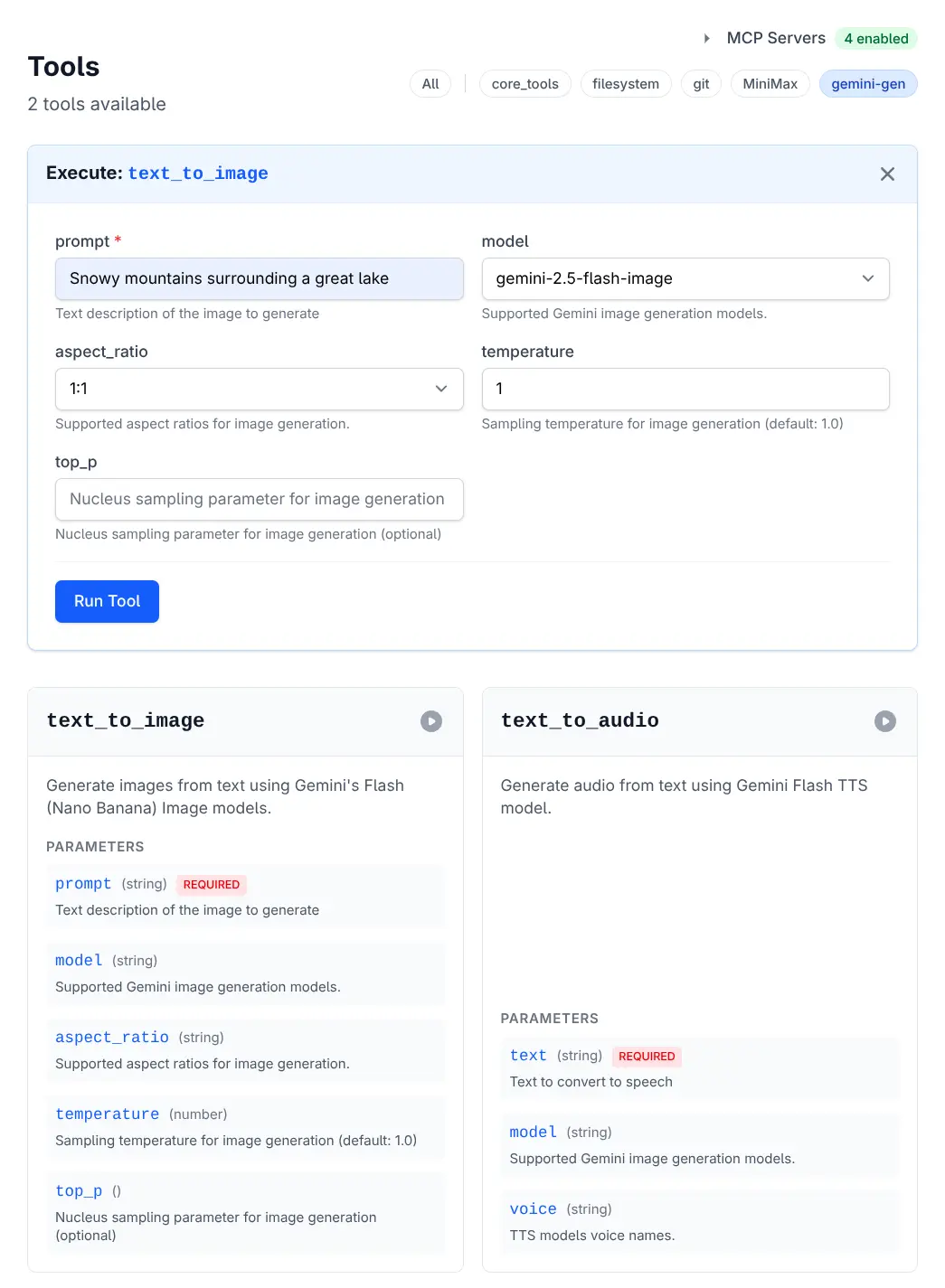

An MCP Tools are grouped under their tool name, making it easy to identify, enable or disable them for each chat session. You can execute tools directly from the Tools page by clicking the Execute button next to each tool, filling out the required parameters in the dialog, and clicking Run Tool.

Results

Upon execution, the tool's output is displayed in a results dialog with specific rendering based on the output type:

Chat Sessions

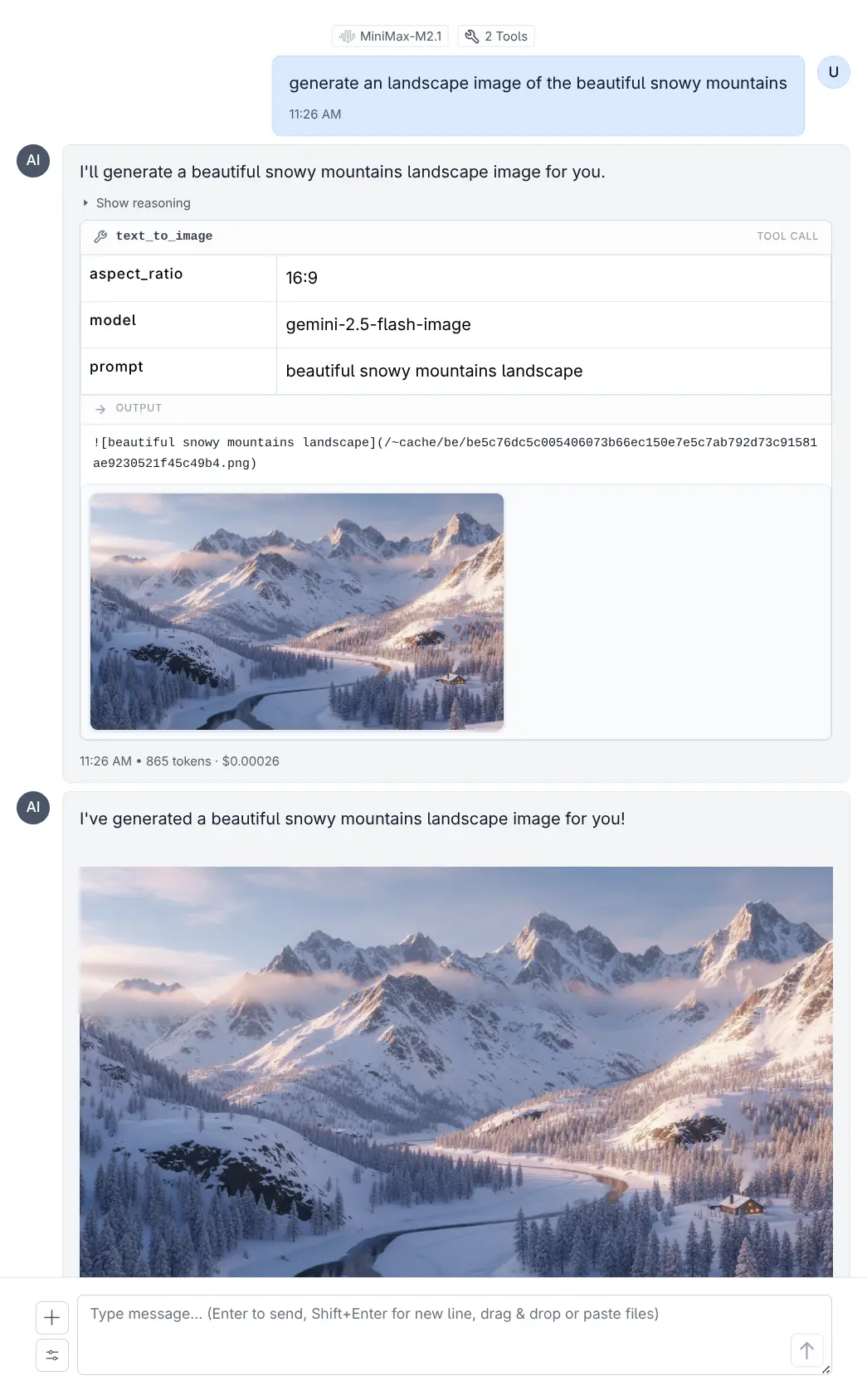

When included, the same tools can be also be invoked indirectly by LLMs during chat sessions:

HTML Results

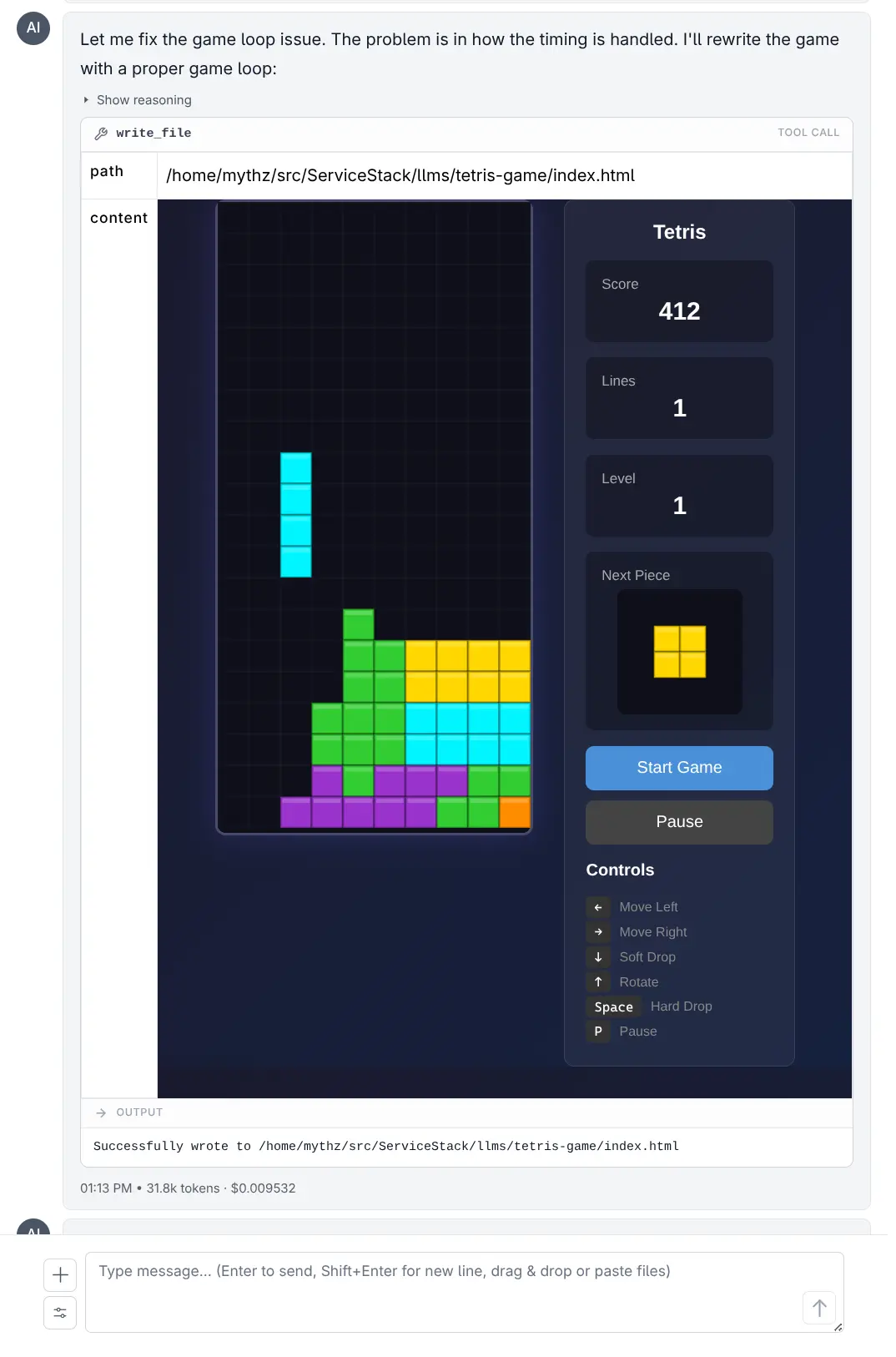

Tool outputs containing HTML content are rendered within an <iframe> within the results dialog which safely sandboxes the content whilst letting you interact with it and play games like Tetris from the arguments or output of a tool call:

Top Panel Tools Selector

• One-Click Enable/Disable: Use the new Tool Selector in the chat interface (top-right) to control which tools are available to the model
• Granular Control: Select all, none per group or globally, or individual tools for each chat session

When tools are used within AI Requests a special UI is used to render tool calls and responses.

How It Works

Discovery Phase (Startup)

1. The extension loads mcp.json and filters out servers with missing environment variables
2. All valid servers are discovered in parallel
3. Each server is started, queried for its available tools via list_tools()
4. Tools are registered in config order (deterministic - later servers override earlier ones for duplicate tool names)

Execution Phase (Runtime)

When a tool is invoked:

1. A fresh connection is established to the appropriate MCP server
2. The tool is executed with the provided arguments (configurable timeout, default 60s)
3. The connection is closed after execution

This fresh-connection-per-execution approach ensures reliability and isolation between tool calls.

Environment Variables

Troubleshooting

If tools are not appearing:

• Check that the MCP server command is accessible in your PATH
• Verify that all required environment variables are exported
• Enable detailed error logging with MCP_LOG_ERRORS=1
• Review the logs in the logs/ directory for specific error messages

If tools are timing out:

• Increase the timeout with MCP_TIMEOUT=120 (or higher value in seconds)

Log Files

Logs are stored in the extension's logs/ directory:

Requirements

• Python 3.9+ (for dict insertion order guarantee)
• fastmcp - MCP client library
